How To Remove Extended Storage Fuse Switch

Type A

1. Turn the ignition switch OFF.
2. Turn the extended storage fuse switch OFF.

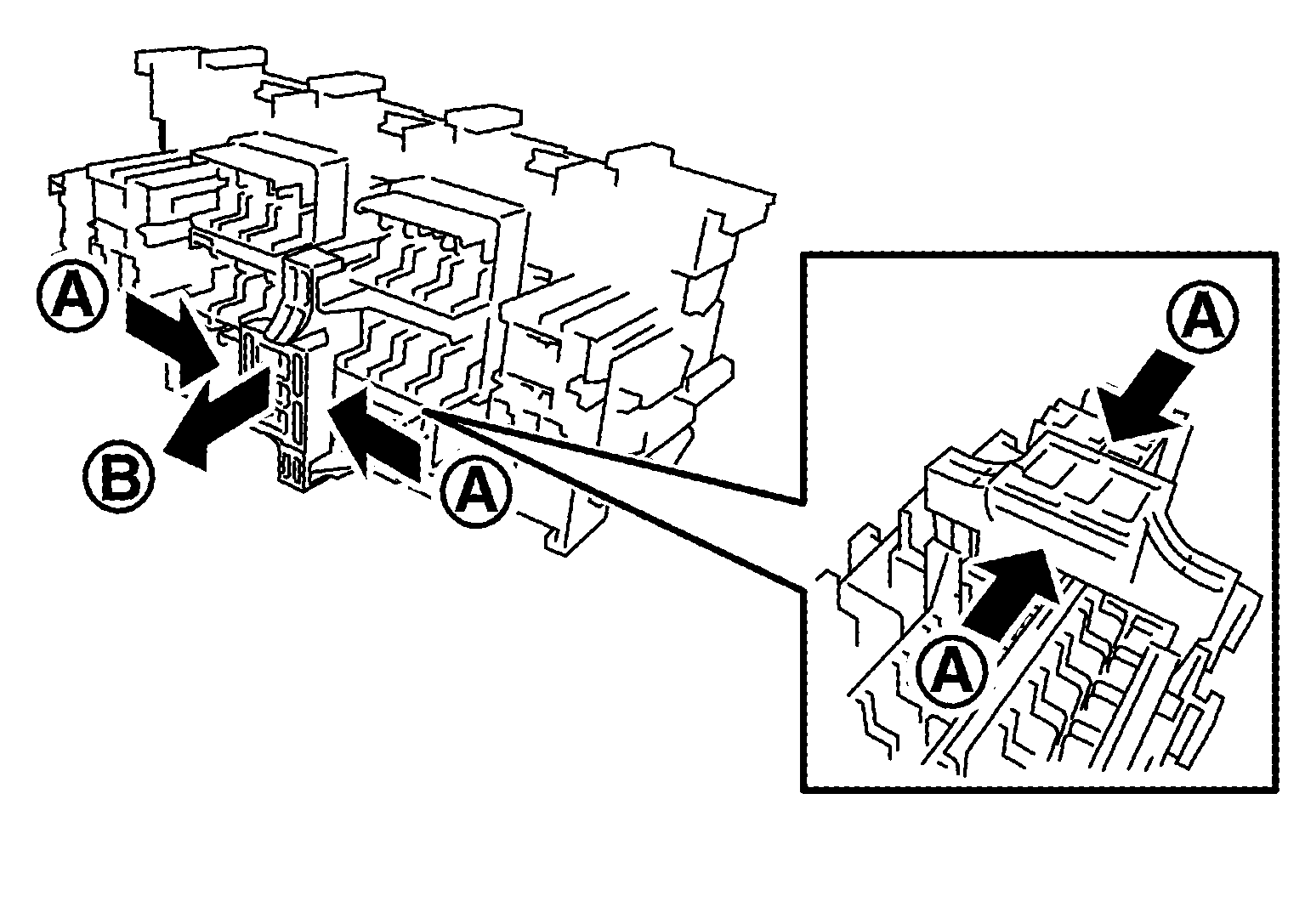

3. Press pawl (A) and tilt to disengage the extended storage fuse switch. Press pawl (B) and tilt to remove the extended storage fuse switch.
   Fig 1: Pressing Pawl (Type A)

   Courtesy of NISSAN NORTH AMERICA, INC.
   NOTE:

   • Extended storage fuse switch and fuse are removed together. Remove fuse from extended storage fuse switch, if necessary.
   • Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the removal.

Type B

1. Turn the ignition switch OFF.
2. Turn the extended storage fuse switch OFF.

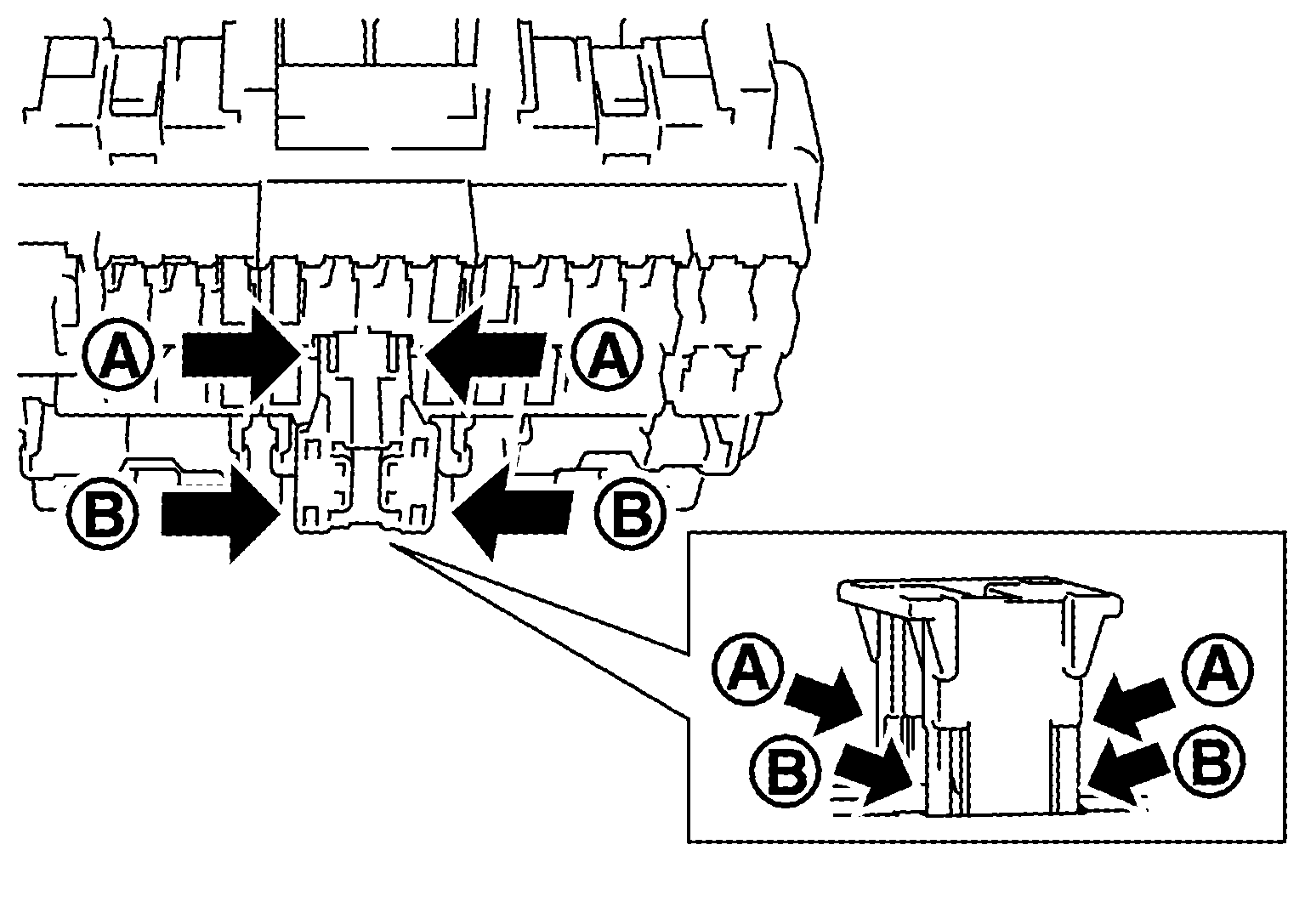

3. Hold (A) and pull up the extended storage fuse switch hard in (B) direction.
   Fig 2: Pressing Pawl (Type B)

   Courtesy of NISSAN NORTH AMERICA, INC.
   NOTE:

   • Extended storage fuse switch and fuse may be removed together. Remove fuse from extended storage fuse switch, if necessary.
   • Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the removal.

Type C

1. Turn the ignition switch OFF.
2. Turn the extended storage fuse switch OFF.
3. Hold (A) and pull up the extended storage fuse switch hard in (B) direction.
   Fig 3: Pressing Pawl (Type C)

   Courtesy of NISSAN NORTH AMERICA, INC.
   NOTE:

   • Extended storage fuse switch and fuse are removed together. Remove fuse from extended storage fuse switch, if necessary.
   • Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the removal.
