A/T MODELS: Exploded View

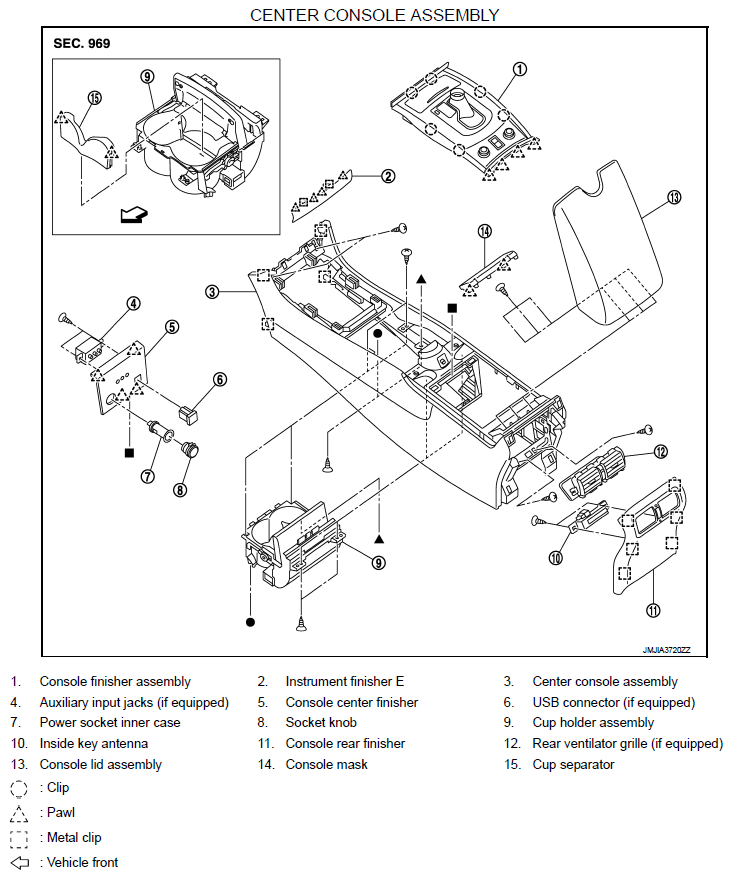

Fig 1: Exploded View Of Center Console Assembly (A/T Models)
G09466512Courtesy of NISSAN NORTH AMERICA, INC.

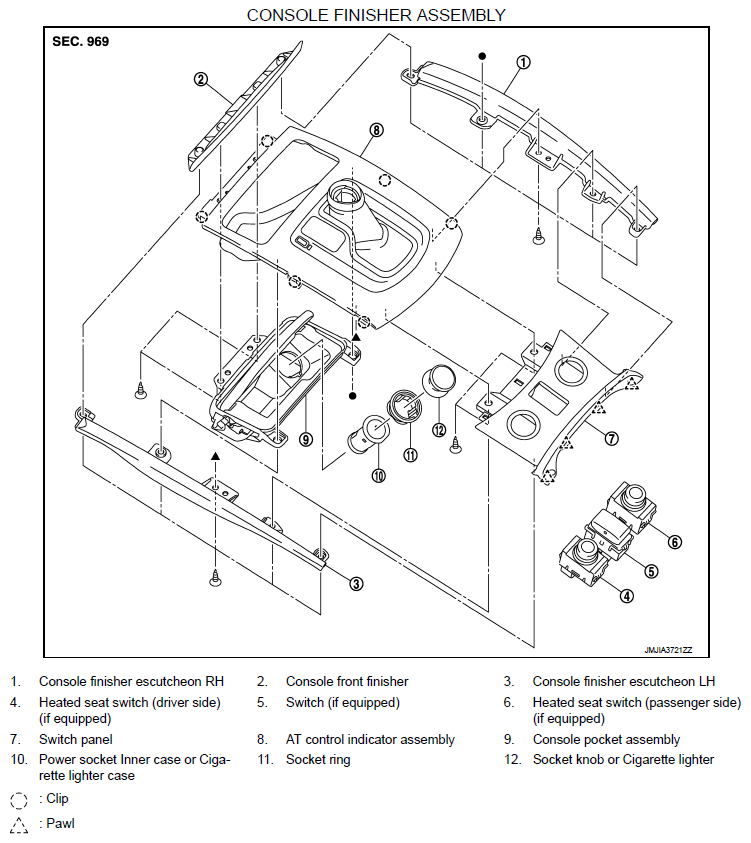

Fig 2: Exploded View Of Center Finisher Assembly (A/T Models)
G09466513Courtesy of NISSAN NORTH AMERICA, INC.
