Starting System Connector End Views

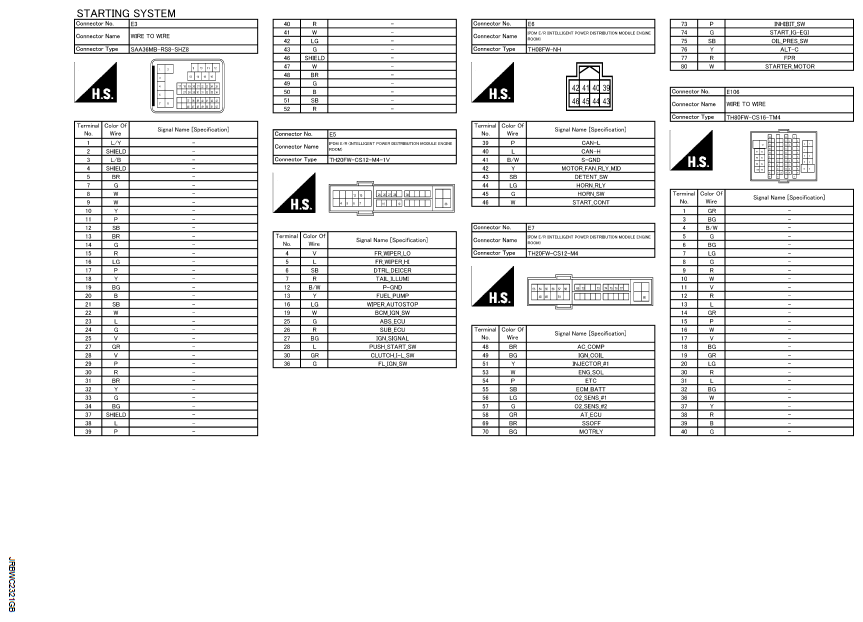

Fig 1: Starting System Connector End View (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

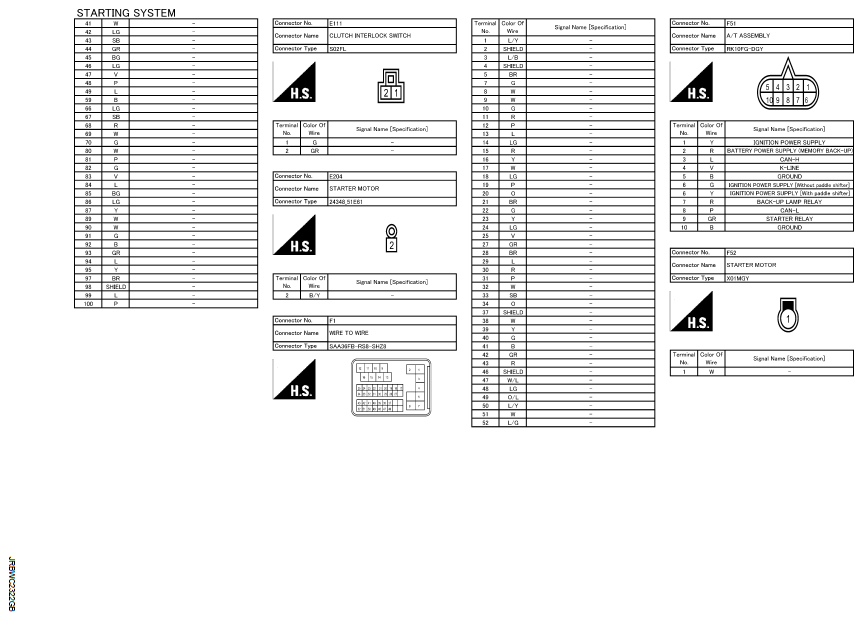

Fig 2: Starting System Connector End View (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

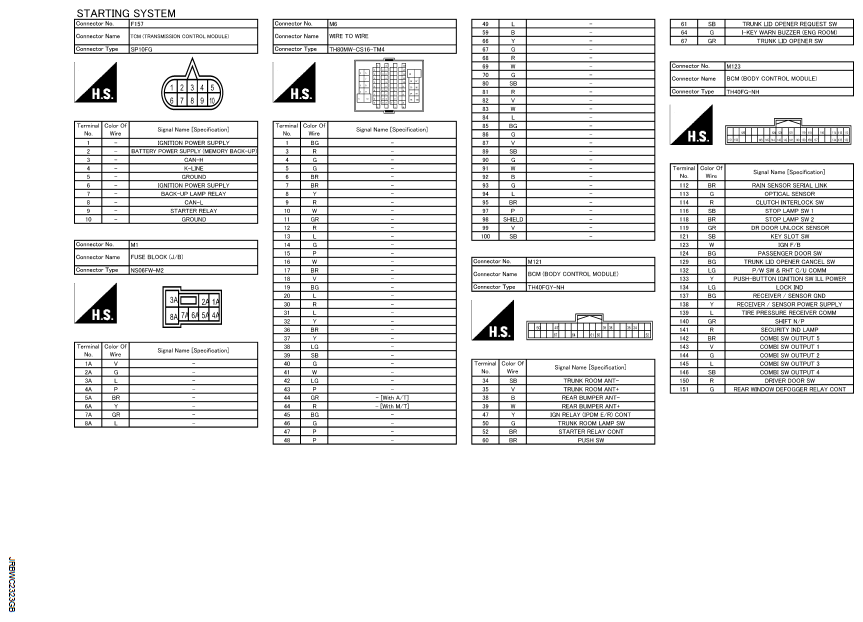

Fig 3: Starting System Connector End View (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
