Switch Positions

Switches are shown in wiring diagrams as if the vehicle is in the "normal" condition.

A vehicle is in the "normal" condition when:

• ignition switch is "OFF"
• doors, hood and trunk lid/back door are closed
• pedals are not depressed
• parking brake is released

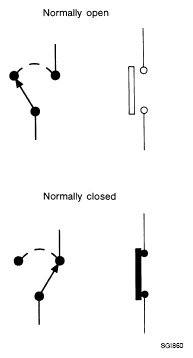

  Fig 1: Identifying Normally Open And Normally Closed Positions Of Switch

  Courtesy of NISSAN NORTH AMERICA, INC.
