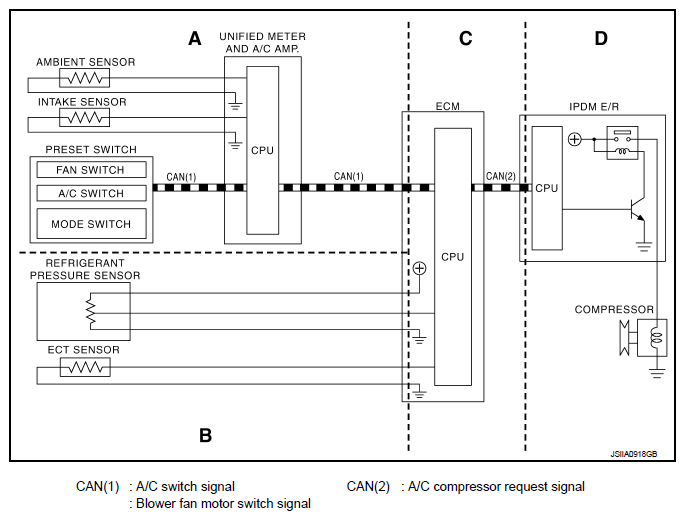

Home >> Infiniti >> 2014 >> Q60 Base, 2D Convertible, Automatic Trans >> Repair and Diagnosis (Single Page) >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Heater & Air Conditioning Control System (Convertible) >> System Description >> Compressor Control Function >> Description >> Principle Of Operation >> Functional circuit diagram
