Data Link Connector End View (M24)

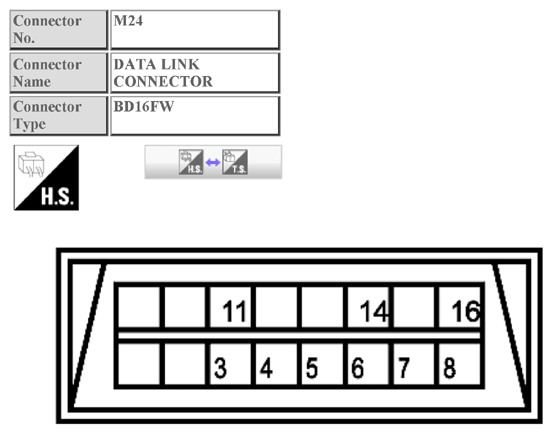

Fig 1: Data Link Connector End View (M24)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
