Connector End Views

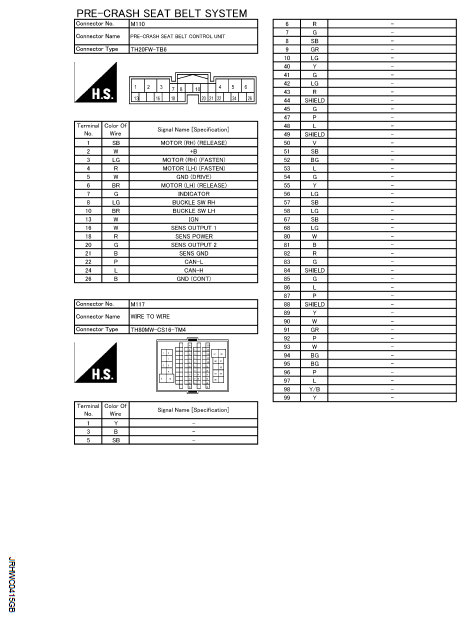

Fig 1: Pre-Crash Seat Belt System Connector End Views (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

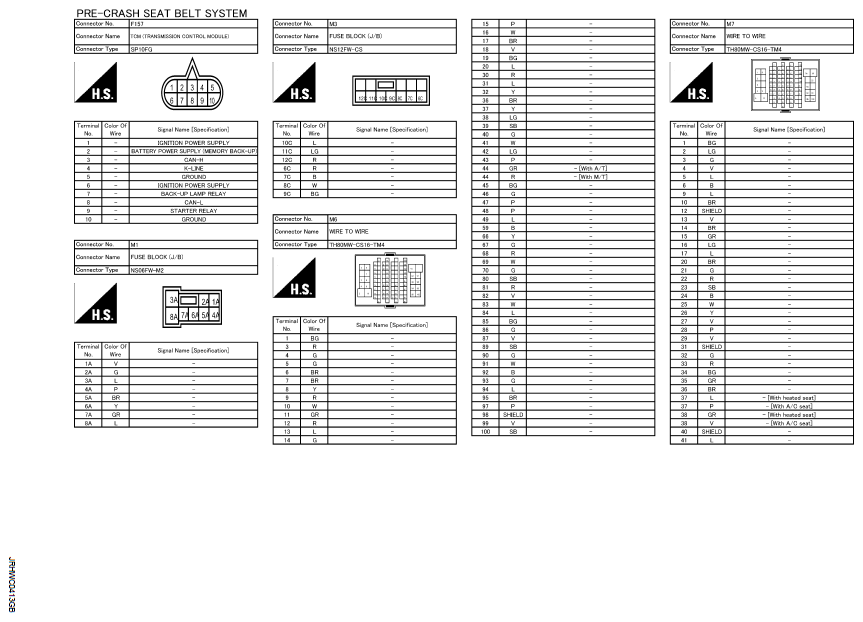

Fig 2: Pre-Crash Seat Belt System Connector End Views (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

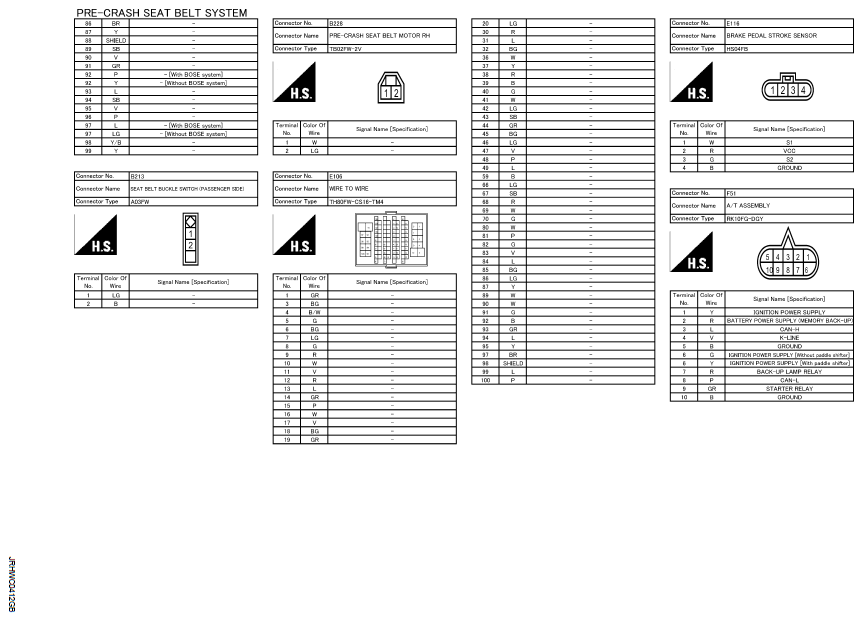

Fig 3: Pre-Crash Seat Belt System Connector End Views (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

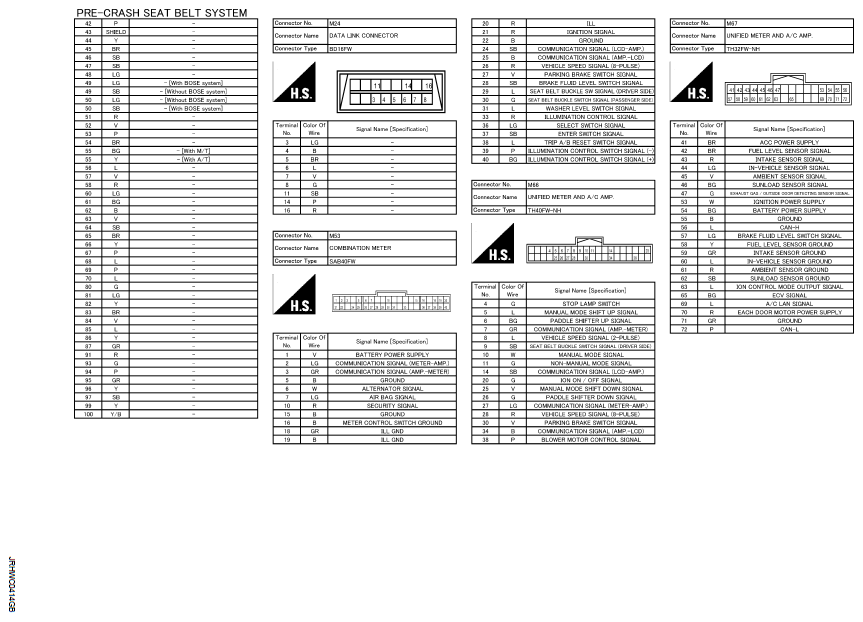

Fig 4: Pre-Crash Seat Belt System Connector End Views (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

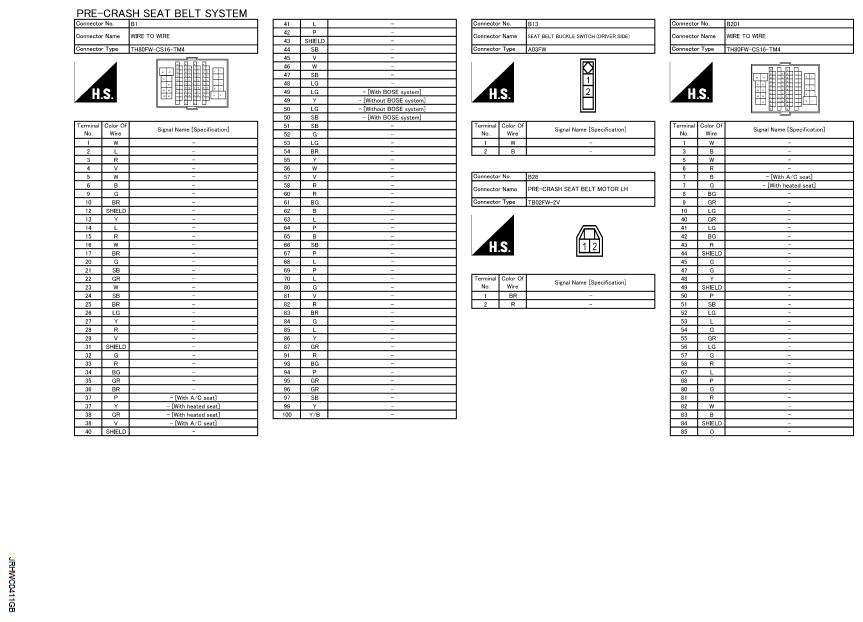

Fig 5: Pre-Crash Seat Belt System Connector End Views (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
