Steering
>>
Power Steering
>>
Steering System (Convertible)
>>
Removal And Installation
>>
Steering Wheel
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

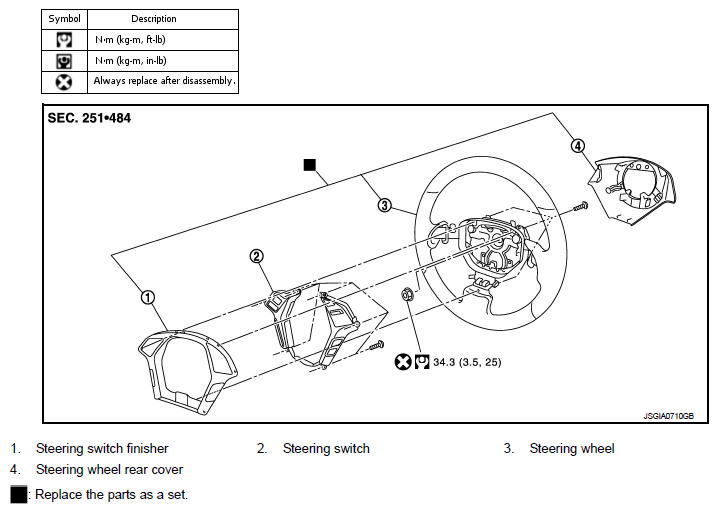

Fig 1: Exploded View Of Steering Wheel With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
