ASC (ADAPTIVE SHIFT CONTROL): Component Parts Location

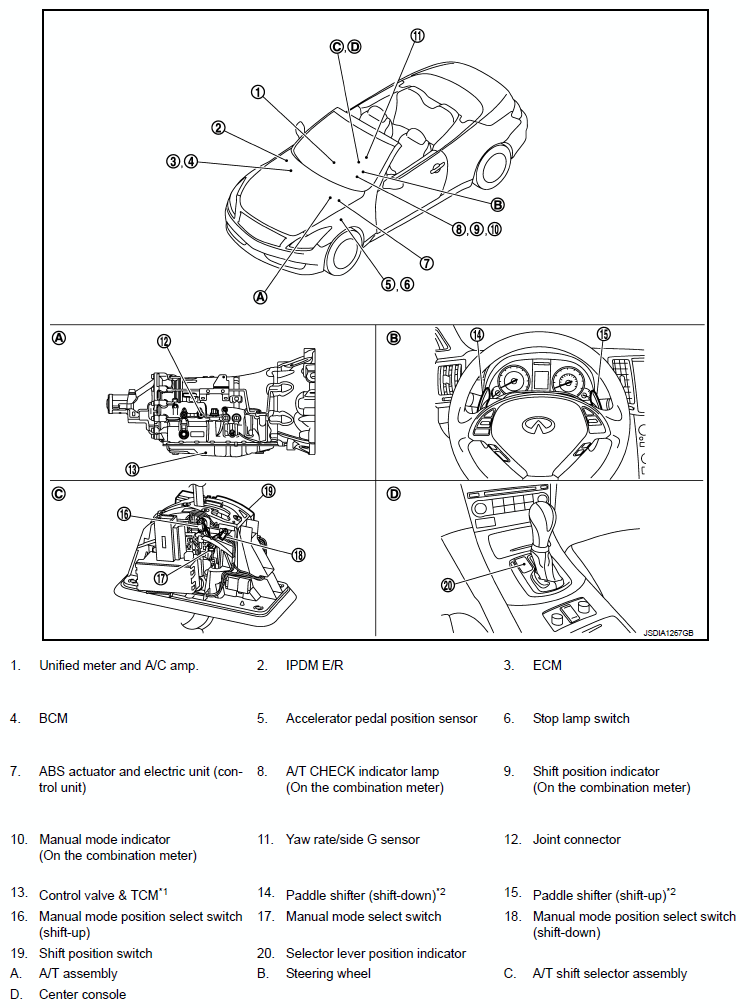

Fig 1: Adaptive Shift Control Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

• The following components are included in control valve & TCM.
  • TCM
  • Input speed sensor 1, 2
  • Output speed sensor
  • A/T fluid temperature sensor
  • Transmission range switch
  • Direct clutch solenoid valve
  • High and low reverse clutch solenoid valve
  • Input clutch solenoid valve
  • Front brake solenoid valve
  • Low brake solenoid valve
  • Anti-interlock solenoid valve
  • 2346 brake solenoid valve
  • Line pressure solenoid valve
  • Torque converter clutch solenoid valve

*1: Control valve & TCM is included in A/T assembly.
*2: With paddle shifter
