Exploded View

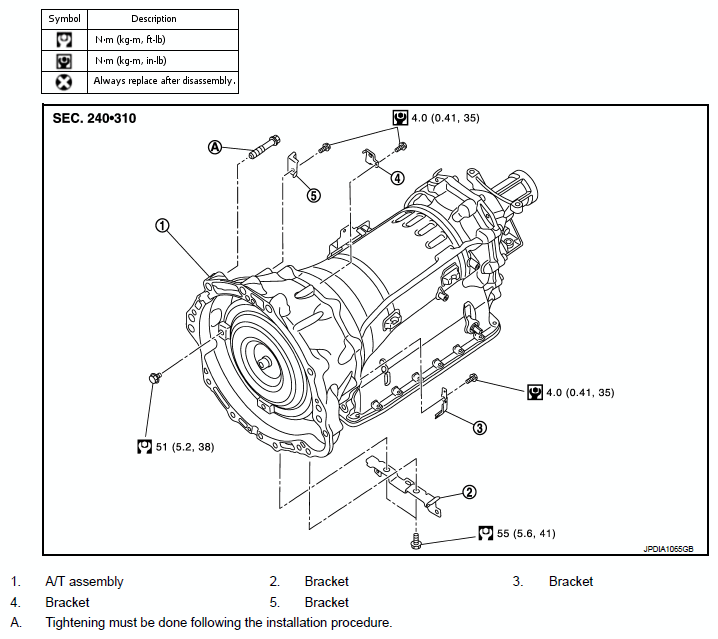

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications
G09465766Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
