WITH RAIN SENSOR: Component Parts Location

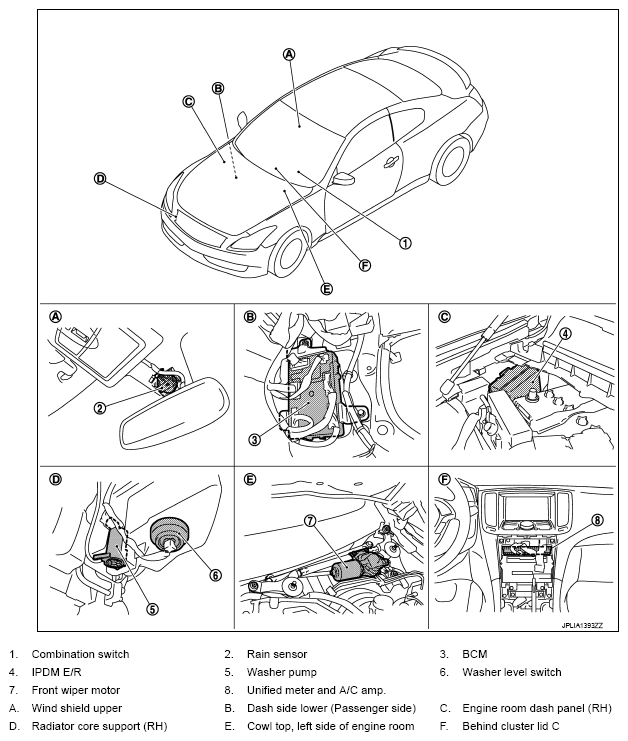

Fig 1: Front Wiper And Washer System Component Parts Location (With Rain Sensor)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
