MANUAL FUNCTION: Component Parts Location

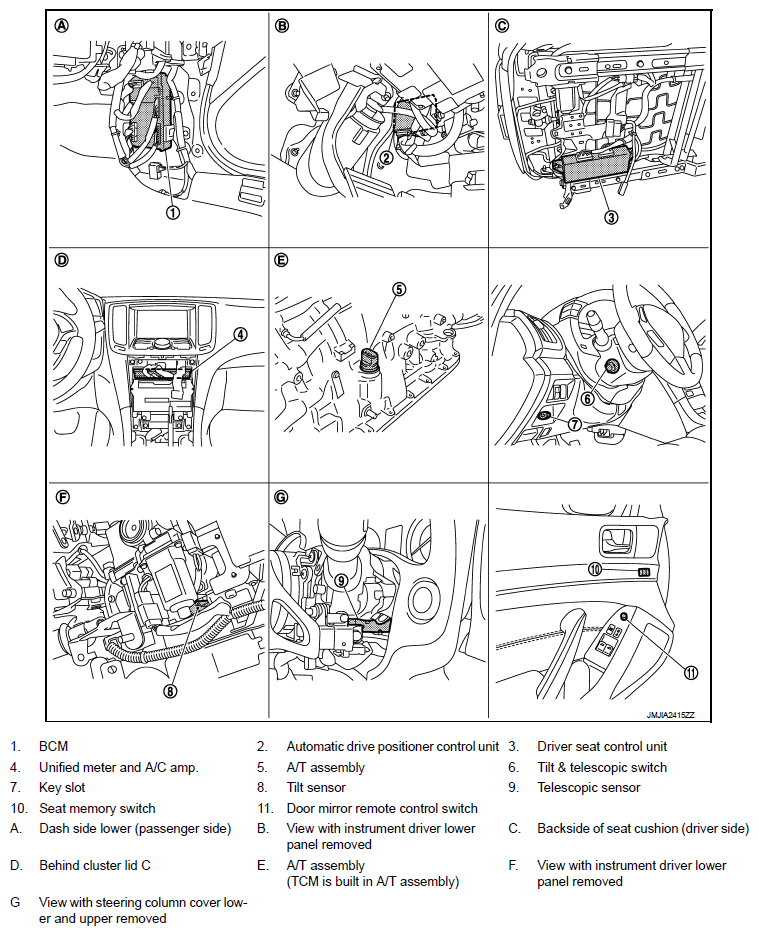

Fig 1: Manual Function Component Parts Location (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

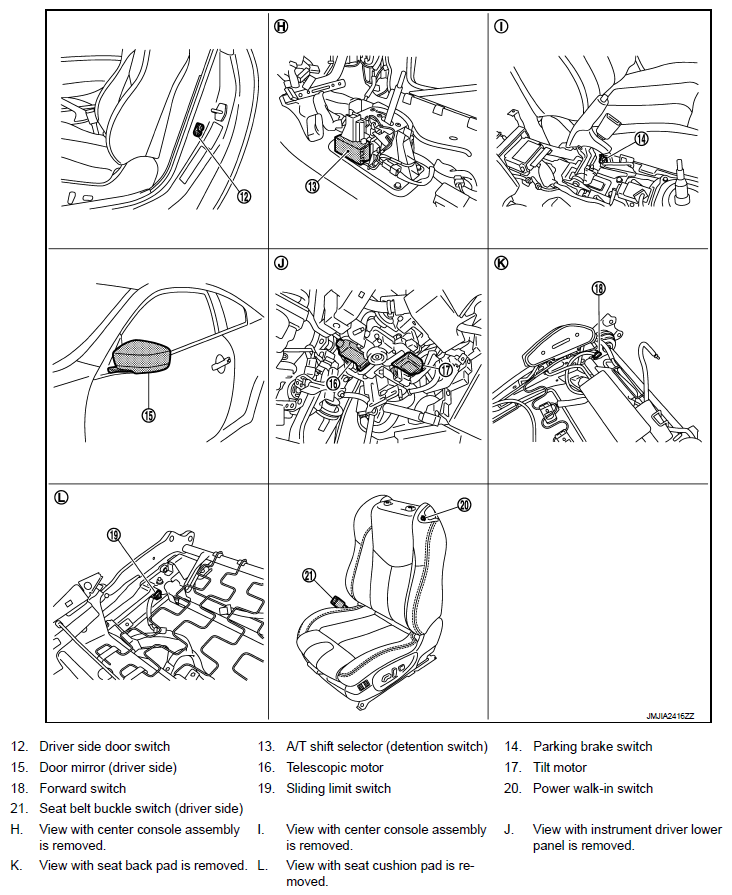

Fig 2: Manual Function Component Parts Location (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

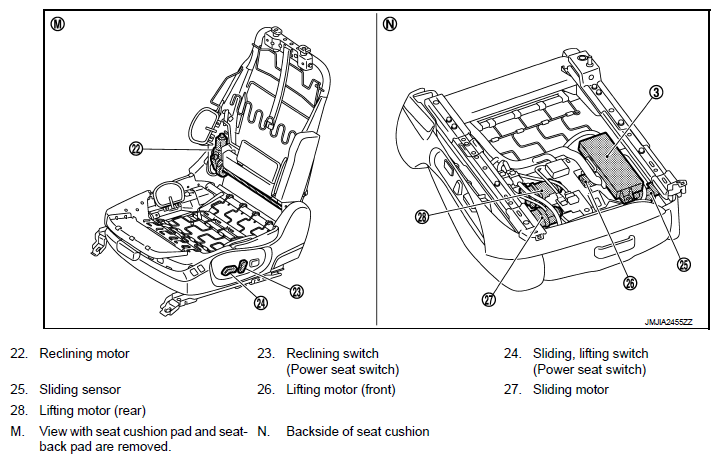

Fig 3: Manual Function Component Parts Location (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
