Exploded View: Disassembly

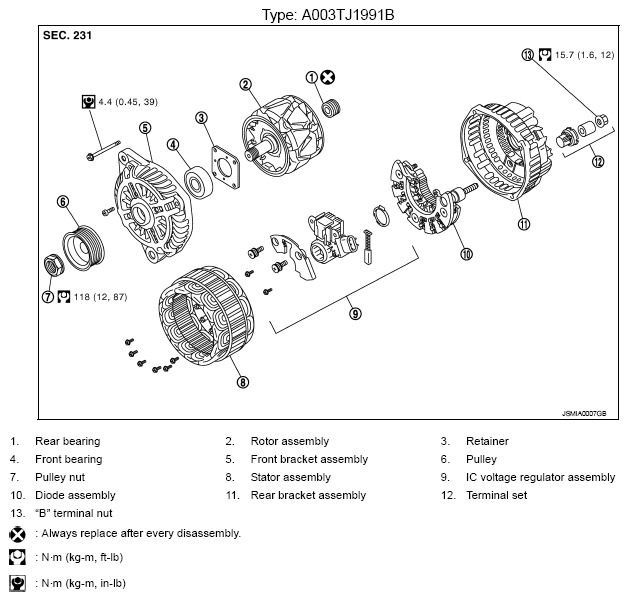

Fig 1: Exploded View Of Alternator (Type A003Tj1991B) With Torque Specifications
G09468218Courtesy of NISSAN NORTH AMERICA, INC.
