Transmitter Wake-Up Operation

  1. With ignition switch in ON position, use the Transmitter Activation Tool (J-45295) or Signal Tech II (J-50190) to activate the front left tire. See Figure.
  2. The low tire pressure warning indicator will flash as shown in Fig 1 indicating that the respective transmitter has been woken up.
  3. Continue the wake-up procedure for the remaining tires in this order: right front, right rear, left rear. When wake-up of all wheels has been completed, turn signal light flashes 2 times.
  4. After completing wake up of all transmitters, make sure low tire pressure warning light goes out.

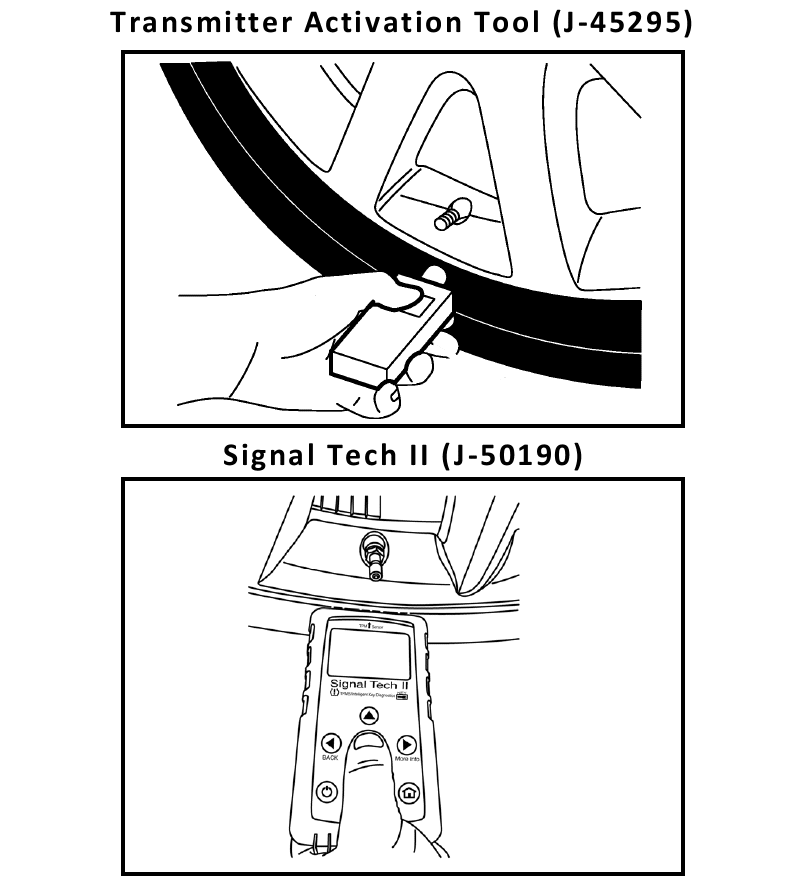

Fig 1: Waking Up Transmitter With Transmitter Activation Tool
G00225494Courtesy of NISSAN MOTOR CO., U.S.A.
