Component Parts Location

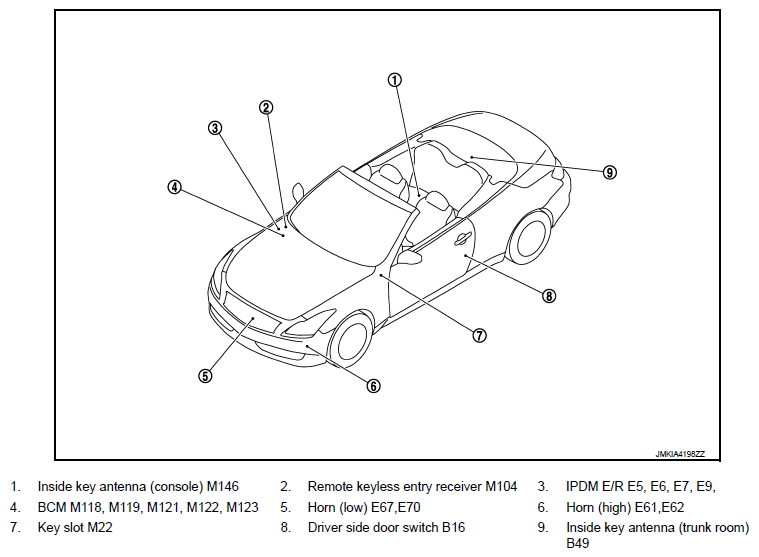

Fig 1: Intelligent Key System/Engine Start Function Component Location (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

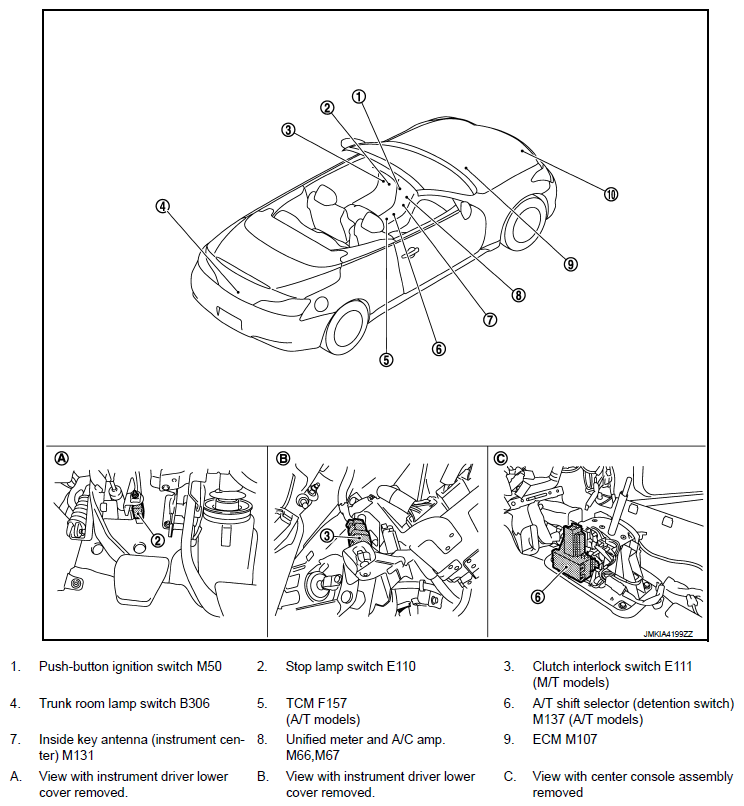

Fig 2: Intelligent Key System/Engine Start Function Component Location (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
