Power Window Control System Connector End Views

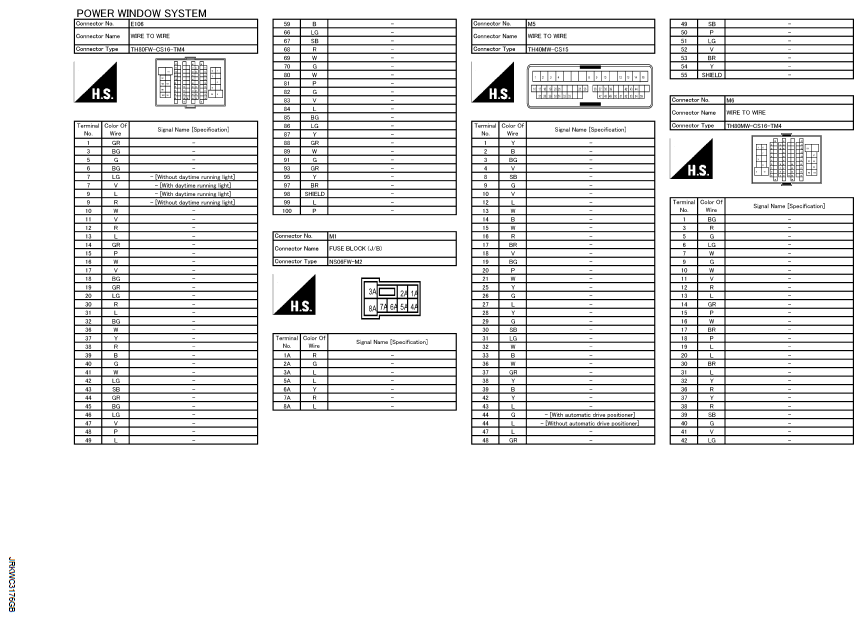

Fig 1: Power Window Control System Connector End View (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

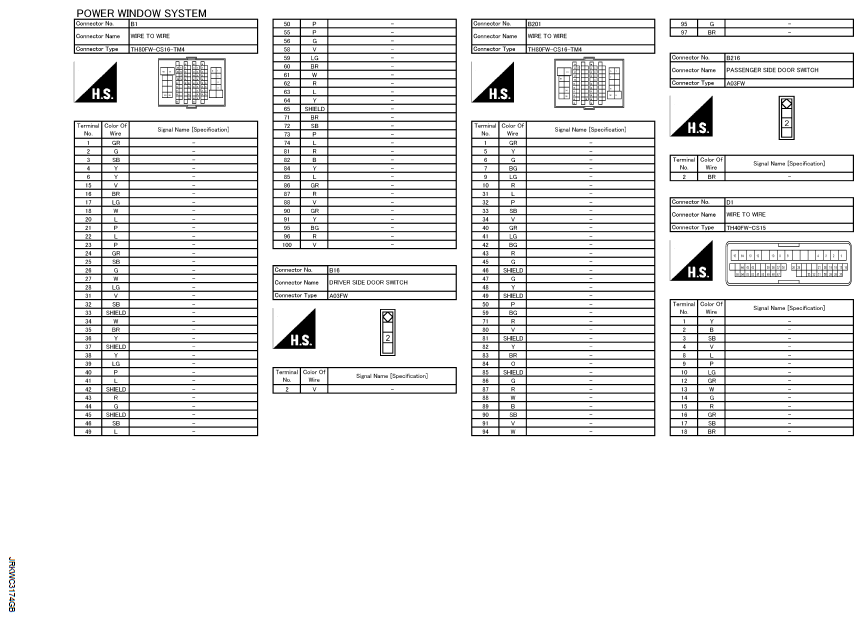

Fig 2: Power Window Control System Connector End View (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

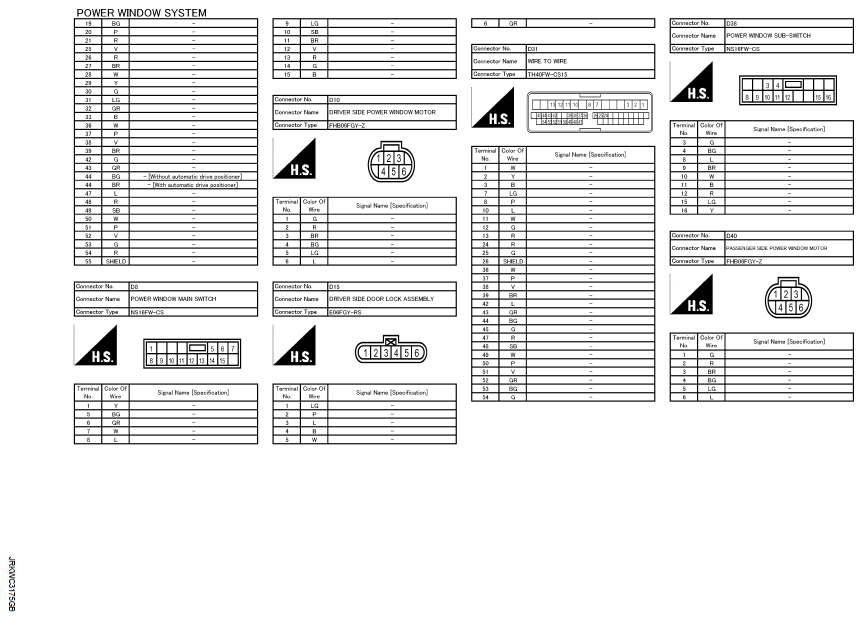

Fig 3: Power Window Control System Connector End View (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

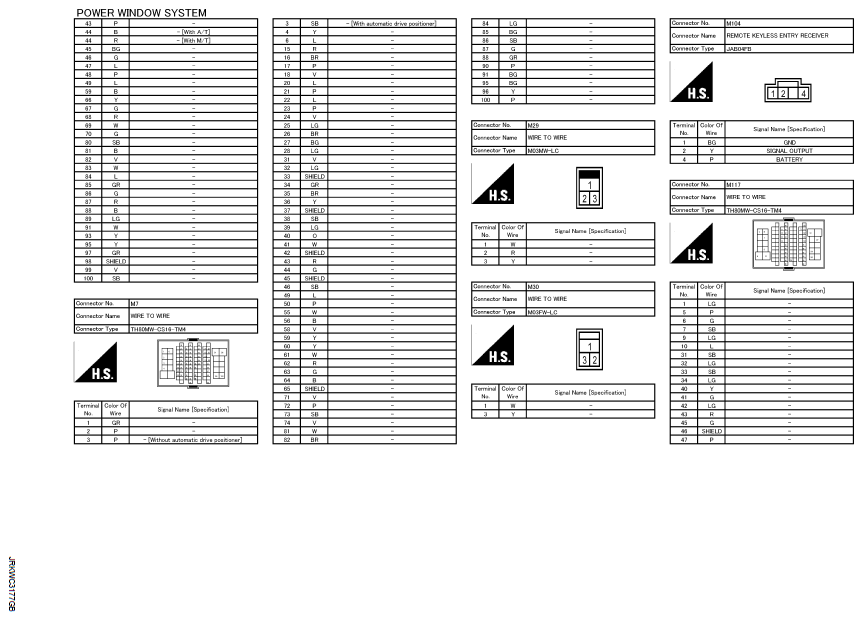

Fig 4: Power Window Control System Connector End View (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

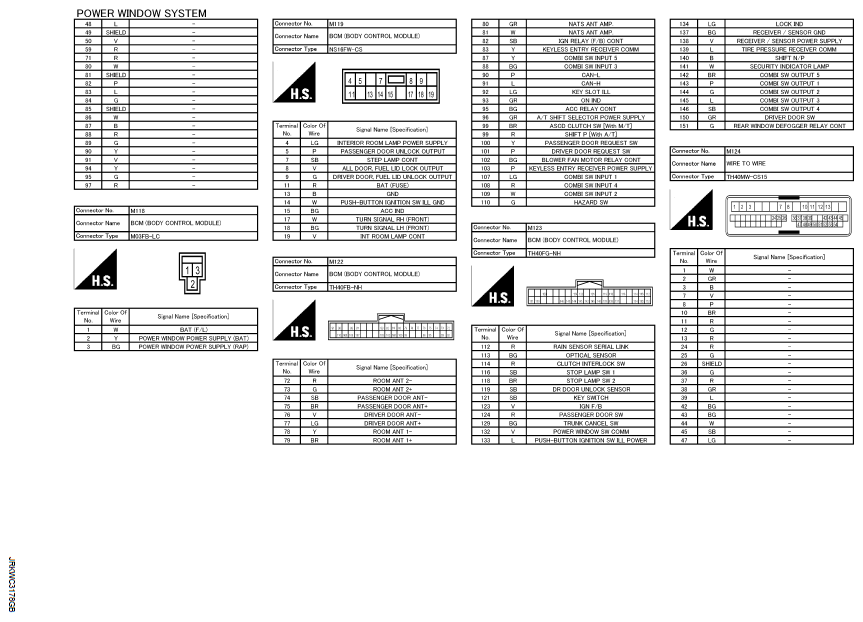

Fig 5: Power Window Control System Connector End View (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

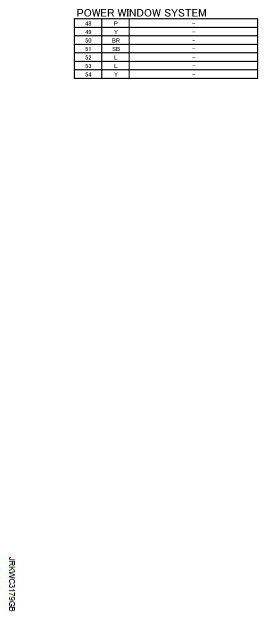

Fig 6: Power Window Control System Connector End View (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
