Component Parts Location

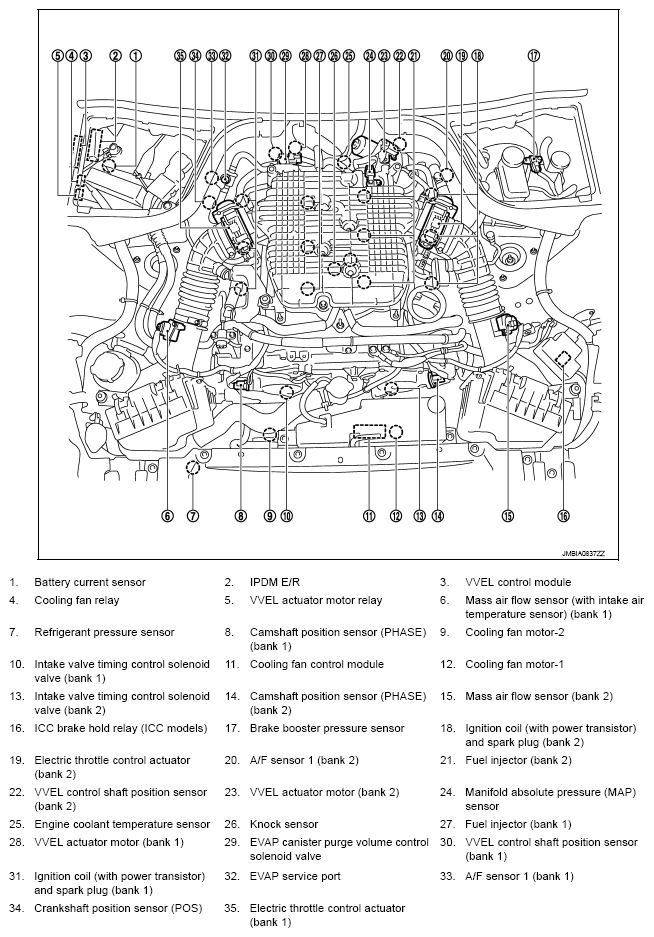

Fig 1: Intake Valve Timing Control Component Parts Location (1 Of 21)

G09470892

Courtesy of NISSAN NORTH AMERICA, INC.

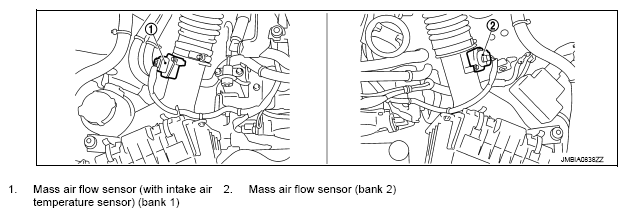

Fig 2: Intake Valve Timing Control Component Parts Location (2 Of 21)

G09470893

Courtesy of NISSAN NORTH AMERICA, INC.

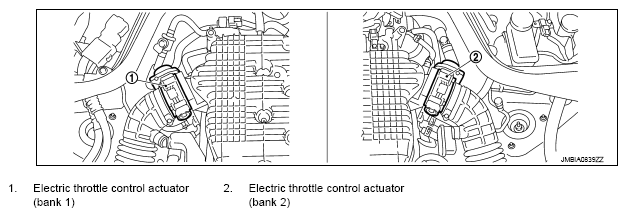

Fig 3: Intake Valve Timing Control Component Parts Location (3 Of 21)

G09470894

Courtesy of NISSAN NORTH AMERICA, INC.

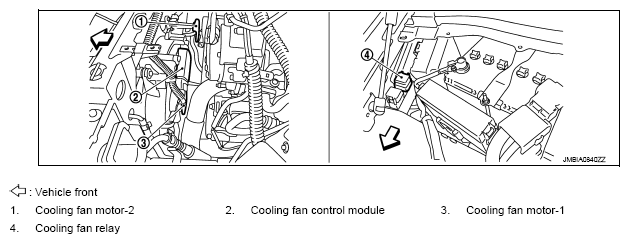

Fig 4: Intake Valve Timing Control Component Parts Location (4 Of 21)

G09470895

Courtesy of NISSAN NORTH AMERICA, INC.

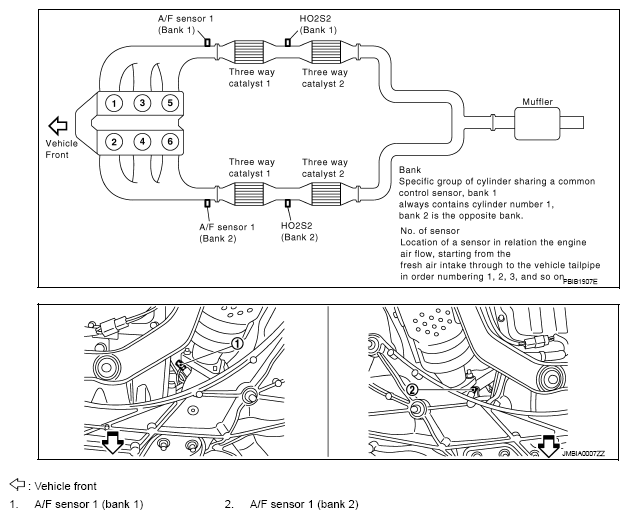

Fig 5: Intake Valve Timing Control Component Parts Location (5 Of 21)

G09470896

Courtesy of NISSAN NORTH AMERICA, INC.

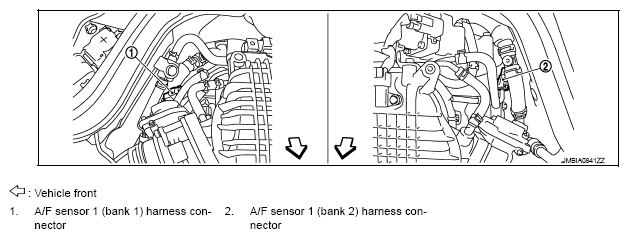

Fig 6: Intake Valve Timing Control Component Parts Location (6 Of 21)

G09470897

Courtesy of NISSAN NORTH AMERICA, INC.

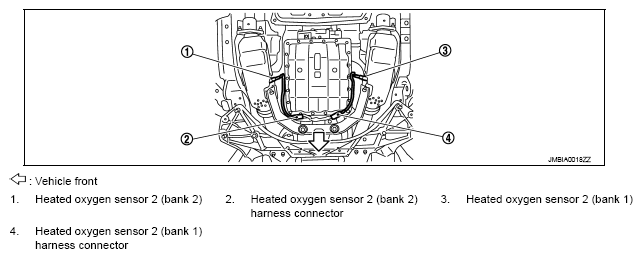

Fig 7: Intake Valve Timing Control Component Parts Location (7 Of 21)

G09470898

Courtesy of NISSAN NORTH AMERICA, INC.

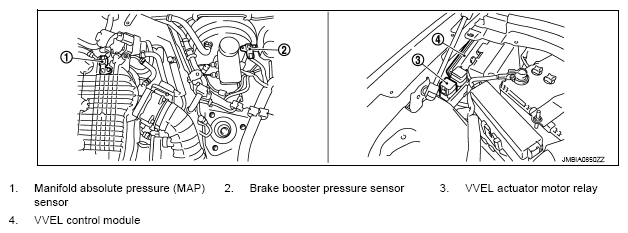

Fig 8: Intake Valve Timing Control Component Parts Location (8 Of 21)

G09470899

Courtesy of NISSAN NORTH AMERICA, INC.

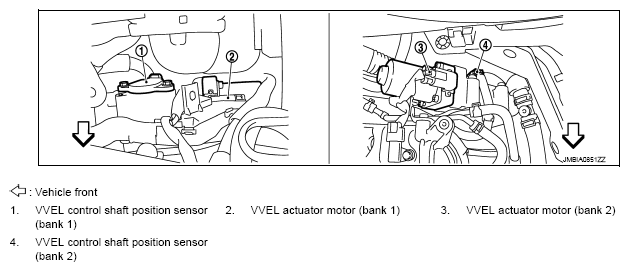

Fig 9: Intake Valve Timing Control Component Parts Location (9 Of 21)

G09470900

Courtesy of NISSAN NORTH AMERICA, INC.

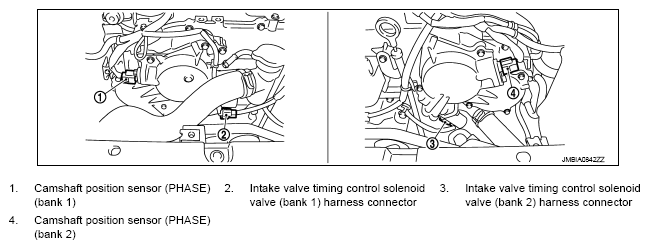

Fig 10: Intake Valve Timing Control Component Parts Location (10 Of 21)

G09470901

Courtesy of NISSAN NORTH AMERICA, INC.

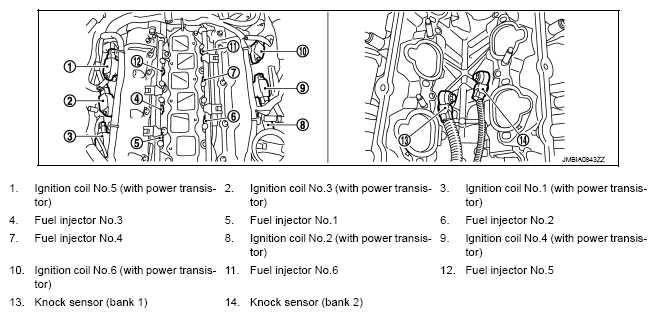

Fig 11: Intake Valve Timing Control Component Parts Location (11 Of 21)

G09470902

Courtesy of NISSAN NORTH AMERICA, INC.

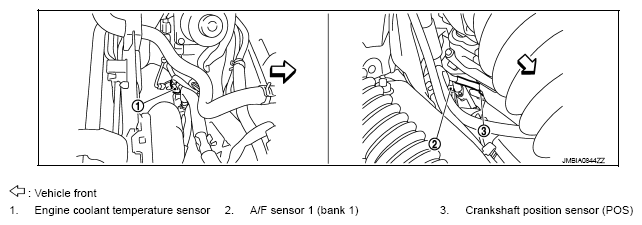

Fig 12: Intake Valve Timing Control Component Parts Location (12 Of 21)

G09470903

Courtesy of NISSAN NORTH AMERICA, INC.

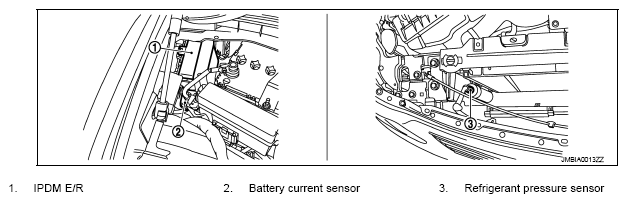

Fig 13: Intake Valve Timing Control Component Parts Location (13 Of 21)

G09470904

Courtesy of NISSAN NORTH AMERICA, INC.

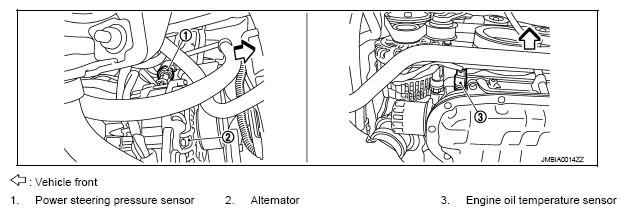

Fig 14: Intake Valve Timing Control Component Parts Location (14 Of 21)

G09470905

Courtesy of NISSAN NORTH AMERICA, INC.

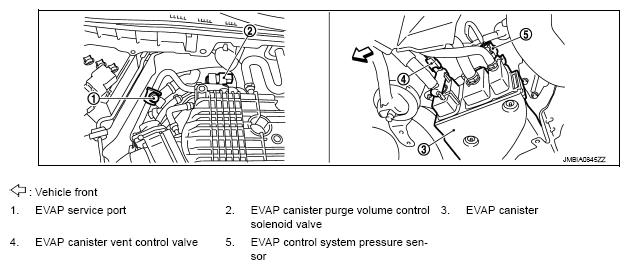

Fig 15: Intake Valve Timing Control Component Parts Location (15 Of 21)

G09470906

Courtesy of NISSAN NORTH AMERICA, INC.

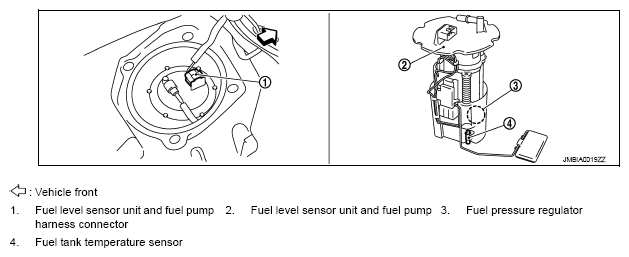

Fig 16: Intake Valve Timing Control Component Parts Location (16 Of 21)

G09470907

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Intake Valve Timing Control Component Parts Location (17 Of 21)

G09470908

Courtesy of NISSAN NORTH AMERICA, INC.

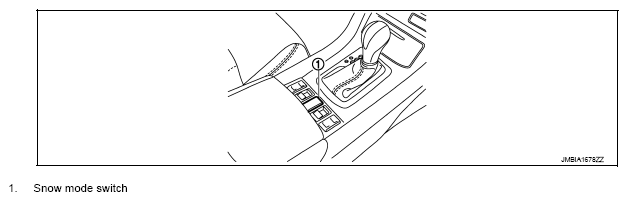

Fig 18: Intake Valve Timing Control Component Parts Location (18 Of 21)

G09470909

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Intake Valve Timing Control Component Parts Location (19 Of 21)

G09470910

Courtesy of NISSAN NORTH AMERICA, INC.

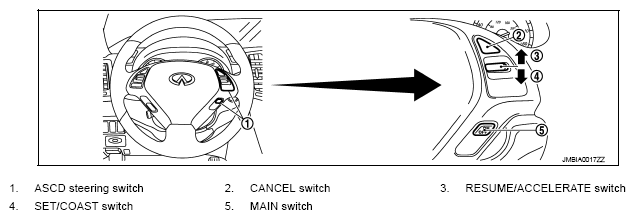

Fig 20: Intake Valve Timing Control Component Parts Location (20 Of 21)

G09470911

Courtesy of NISSAN NORTH AMERICA, INC.

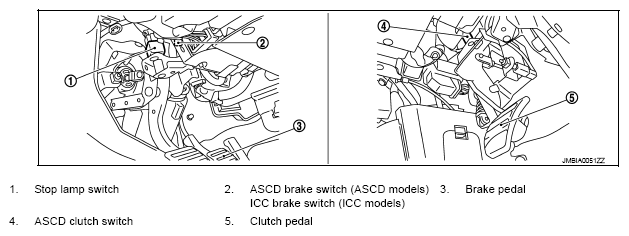

Fig 21: Intake Valve Timing Control Component Parts Location (21 Of 21)

G09470912

Courtesy of NISSAN NORTH AMERICA, INC.
