A/T MODELS: Exploded View

WARNING: This page is about a different variant/trim than selected.

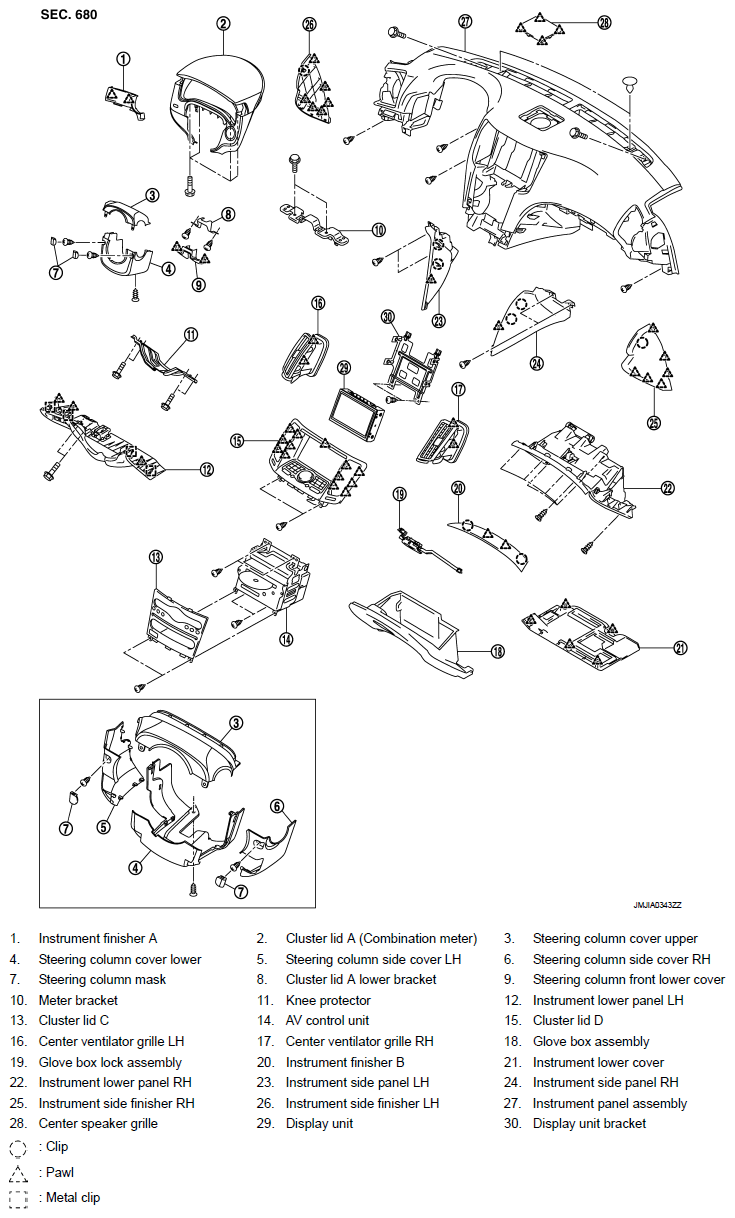

Fig 1: Exploded View Of Instrument Panel Assembly (A/T Models)
G09466447Courtesy of NISSAN NORTH AMERICA, INC.
