Component Parts Location

Fig 1: Air Conditioning Cut Control Component Parts Location (1 Of 21)

G09470778

Courtesy of NISSAN NORTH AMERICA, INC.

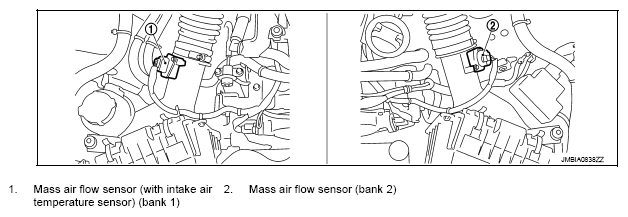

Fig 2: Air Conditioning Cut Control Component Parts Location (2 Of 21)

G09470779

Courtesy of NISSAN NORTH AMERICA, INC.

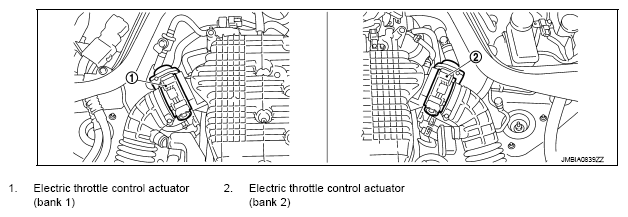

Fig 3: Air Conditioning Cut Control Component Parts Location (3 Of 21)

G09470780

Courtesy of NISSAN NORTH AMERICA, INC.

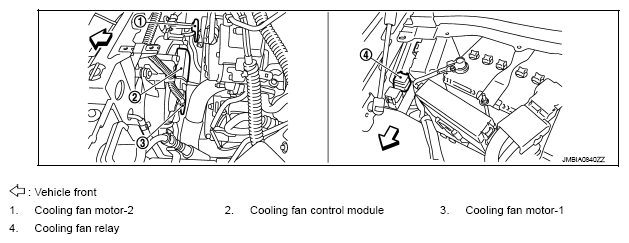

Fig 4: Air Conditioning Cut Control Component Parts Location (4 Of 21)

G09470781

Courtesy of NISSAN NORTH AMERICA, INC.

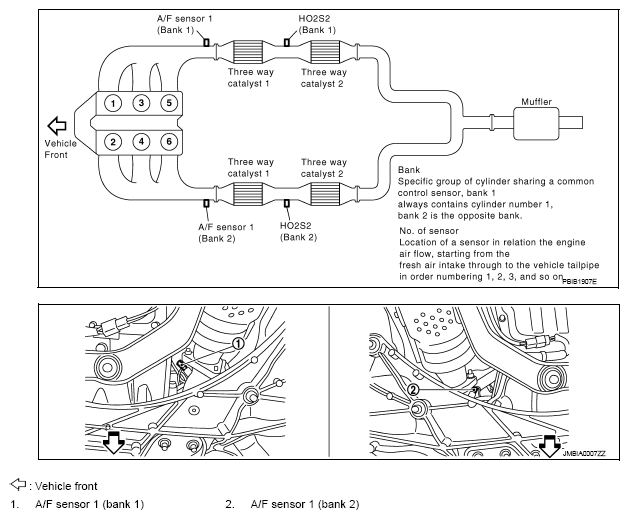

Fig 5: Air Conditioning Cut Control Component Parts Location (5 Of 21)

G09470782

Courtesy of NISSAN NORTH AMERICA, INC.

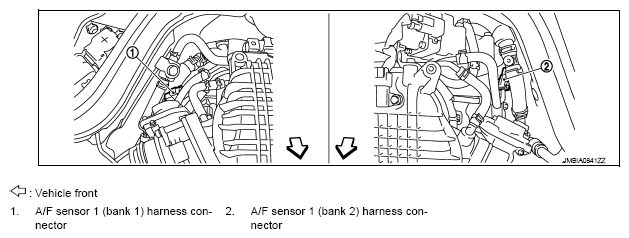

Fig 6: Air Conditioning Cut Control Component Parts Location (6 Of 21)

G09470783

Courtesy of NISSAN NORTH AMERICA, INC.

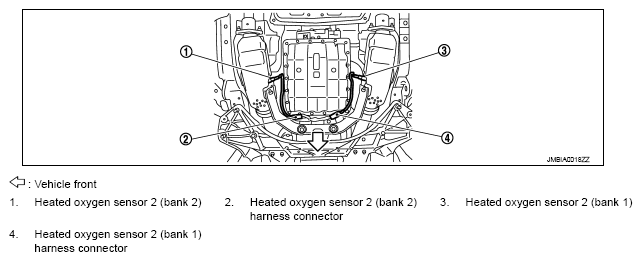

Fig 7: Air Conditioning Cut Control Component Parts Location (7 Of 21)

G09470784

Courtesy of NISSAN NORTH AMERICA, INC.

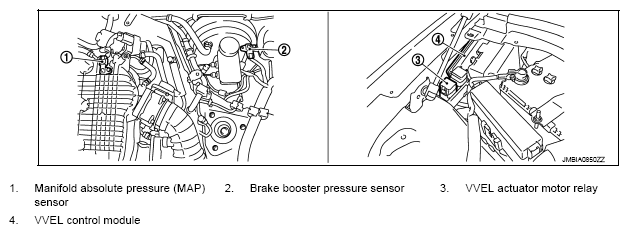

Fig 8: Air Conditioning Cut Control Component Parts Location (8 Of 21)

G09470785

Courtesy of NISSAN NORTH AMERICA, INC.

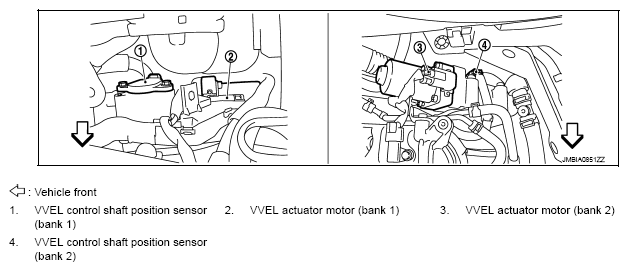

Fig 9: Air Conditioning Cut Control Component Parts Location (9 Of 21)

G09470786

Courtesy of NISSAN NORTH AMERICA, INC.

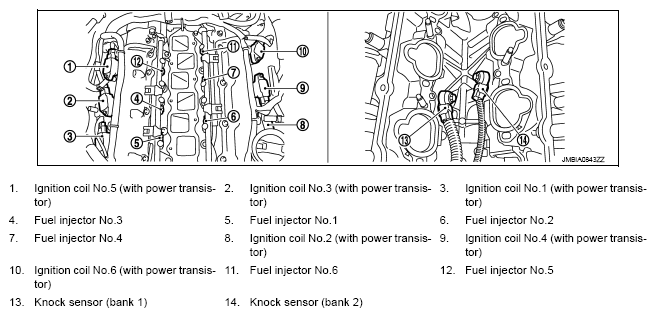

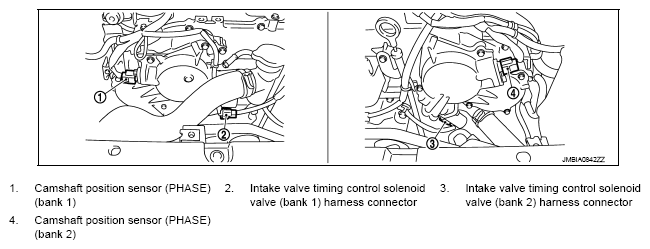

Fig 10: Air Conditioning Cut Control Component Parts Location (10 Of 21)

G09470787

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Air Conditioning Cut Control Component Parts Location (11 Of 21)

G09470788

Courtesy of NISSAN NORTH AMERICA, INC.

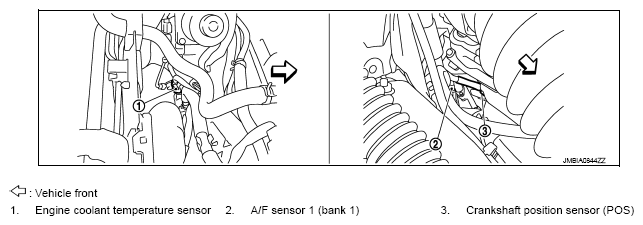

Fig 12: Air Conditioning Cut Control Component Parts Location (12 Of 21)

G09470789

Courtesy of NISSAN NORTH AMERICA, INC.

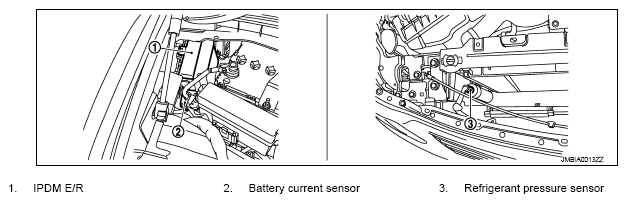

Fig 13: Air Conditioning Cut Control Component Parts Location (13 Of 21)

G09470790

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Air Conditioning Cut Control Component Parts Location (14 Of 21)

G09470791

Courtesy of NISSAN NORTH AMERICA, INC.

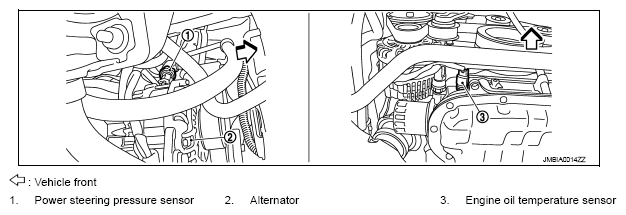

Fig 15: Air Conditioning Cut Control Component Parts Location (15 Of 21)

G09470792

Courtesy of NISSAN NORTH AMERICA, INC.

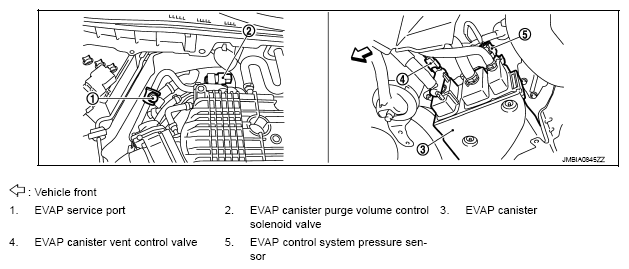

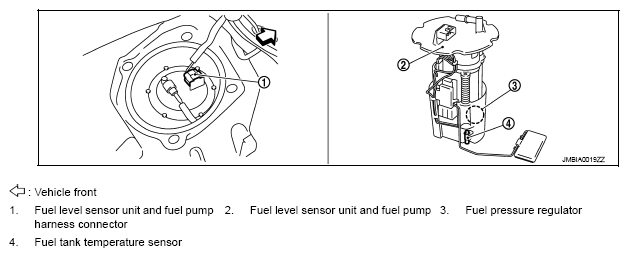

Fig 16: Air Conditioning Cut Control Component Parts Location (16 Of 21)

G09470793

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Air Conditioning Cut Control Component Parts Location (17 Of 21)

G09470794

Courtesy of NISSAN NORTH AMERICA, INC.

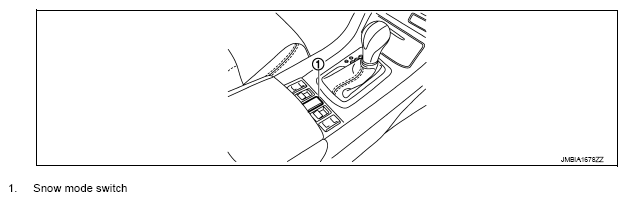

Fig 18: Air Conditioning Cut Control Component Parts Location (18 Of 21)

G09470795

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Air Conditioning Cut Control Component Parts Location (19 Of 21)

G09470796

Courtesy of NISSAN NORTH AMERICA, INC.

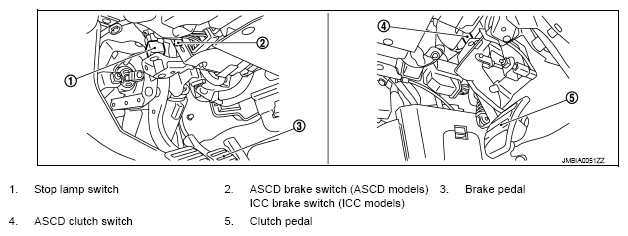

Fig 20: Air Conditioning Cut Control Component Parts Location (20 Of 21)

G09470797

Courtesy of NISSAN NORTH AMERICA, INC.

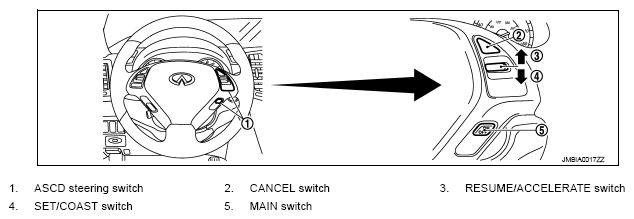

Fig 21: Air Conditioning Cut Control Component Parts Location (21 Of 21)

G09470798

Courtesy of NISSAN NORTH AMERICA, INC.
