Component Parts Location

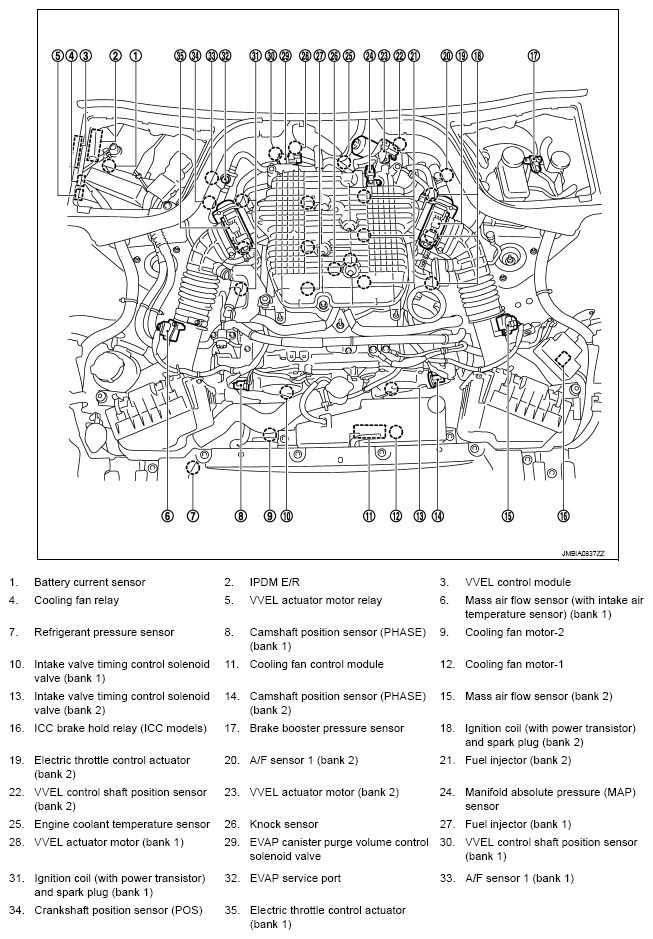

Fig 1: Automatic Speed Control Device Component Parts Location (1 Of 21)

G09470800

Courtesy of NISSAN NORTH AMERICA, INC.

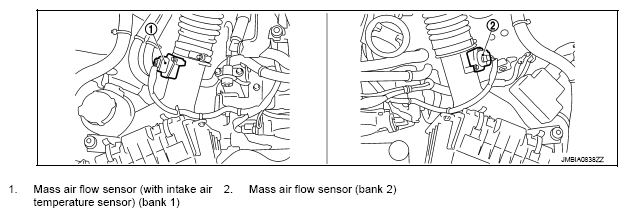

Fig 2: Automatic Speed Control Device Component Parts Location (2 Of 21)

G09470801

Courtesy of NISSAN NORTH AMERICA, INC.

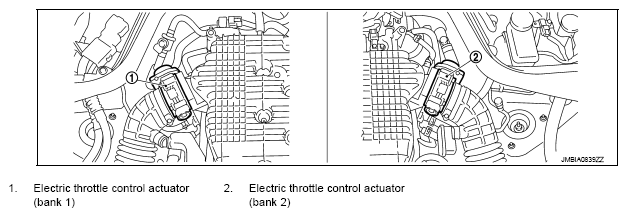

Fig 3: Automatic Speed Control Device Component Parts Location (3 Of 21)

G09470802

Courtesy of NISSAN NORTH AMERICA, INC.

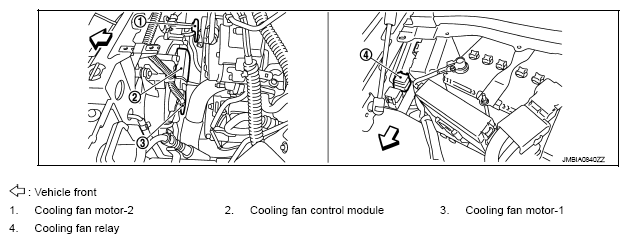

Fig 4: Automatic Speed Control Device Component Parts Location (4 Of 21)

G09470803

Courtesy of NISSAN NORTH AMERICA, INC.

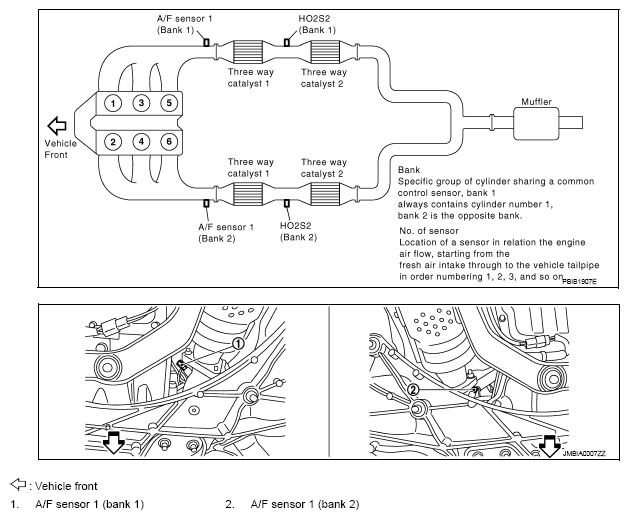

Fig 5: Automatic Speed Control Device Component Parts Location (5 Of 21)

G09470804

Courtesy of NISSAN NORTH AMERICA, INC.

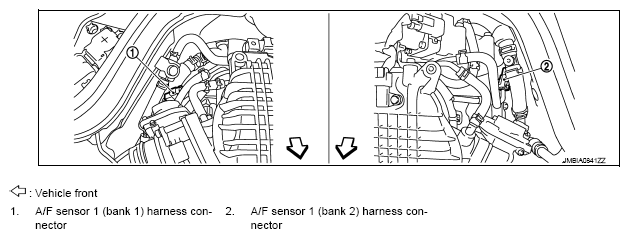

Fig 6: Automatic Speed Control Device Component Parts Location (6 Of 21)

G09470805

Courtesy of NISSAN NORTH AMERICA, INC.

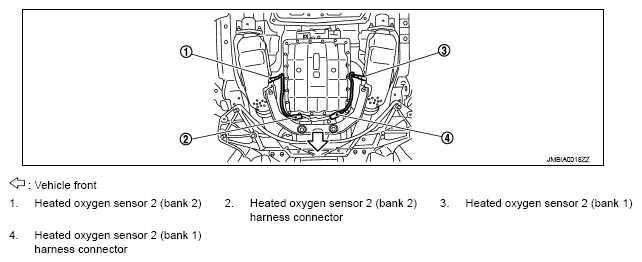

Fig 7: Automatic Speed Control Device Component Parts Location (7 Of 21)

G09470806

Courtesy of NISSAN NORTH AMERICA, INC.

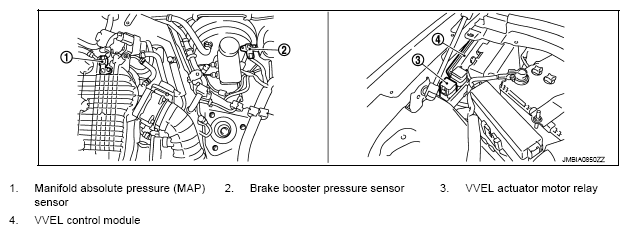

Fig 8: Automatic Speed Control Device Component Parts Location (8 Of 21)

G09470807

Courtesy of NISSAN NORTH AMERICA, INC.

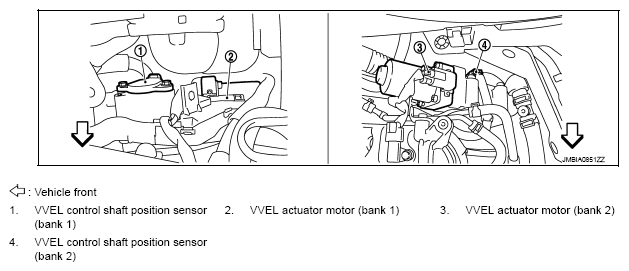

Fig 9: Automatic Speed Control Device Component Parts Location (9 Of 21)

G09470808

Courtesy of NISSAN NORTH AMERICA, INC.

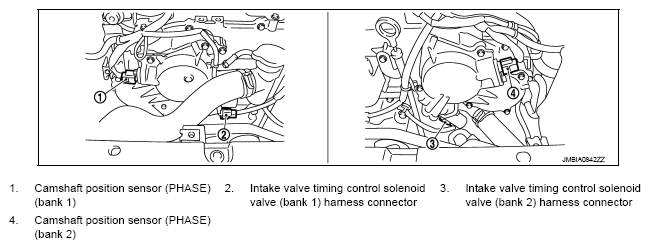

Fig 10: Automatic Speed Control Device Component Parts Location (10 Of 21)

G09470809

Courtesy of NISSAN NORTH AMERICA, INC.

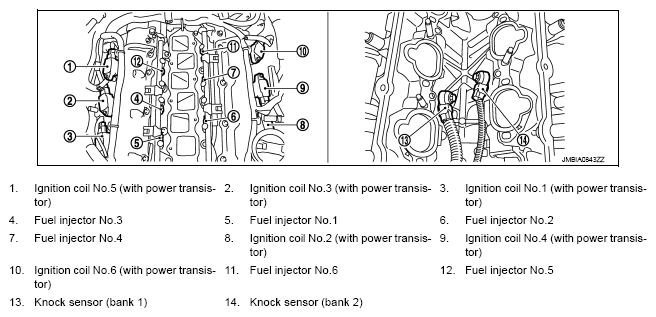

Fig 11: Automatic Speed Control Device Component Parts Location (11 Of 21)

G09470810

Courtesy of NISSAN NORTH AMERICA, INC.

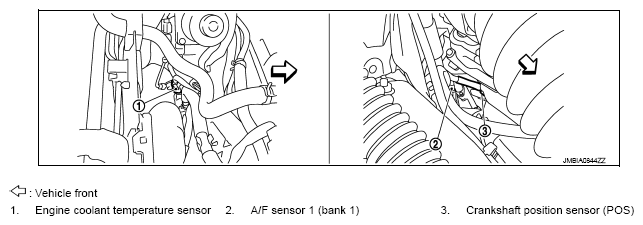

Fig 12: Automatic Speed Control Device Component Parts Location (12 Of 21)

G09470811

Courtesy of NISSAN NORTH AMERICA, INC.

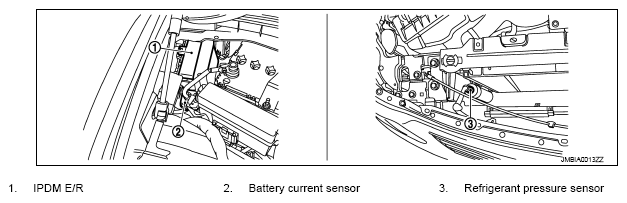

Fig 13: Automatic Speed Control Device Component Parts Location (13 Of 21)

G09470812

Courtesy of NISSAN NORTH AMERICA, INC.

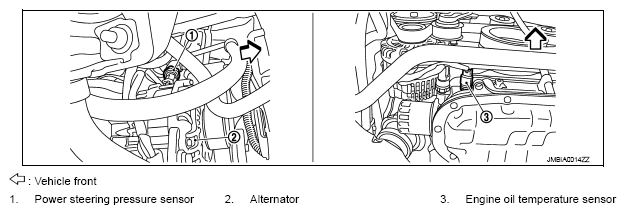

Fig 14: Automatic Speed Control Device Component Parts Location (14 Of 21)

G09470813

Courtesy of NISSAN NORTH AMERICA, INC.

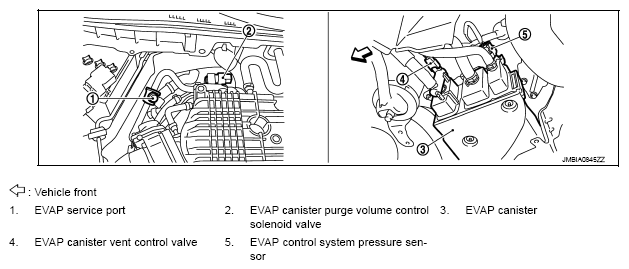

Fig 15: Automatic Speed Control Device Component Parts Location (15 Of 21)

G09470814

Courtesy of NISSAN NORTH AMERICA, INC.

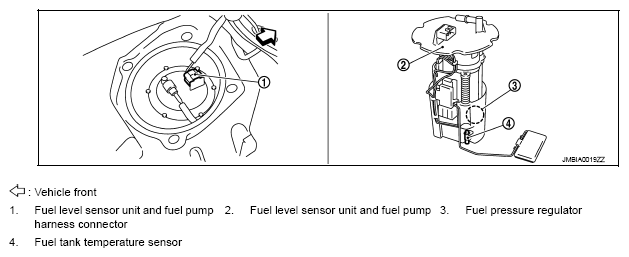

Fig 16: Automatic Speed Control Device Component Parts Location (16 Of 21)

G09470815

Courtesy of NISSAN NORTH AMERICA, INC.

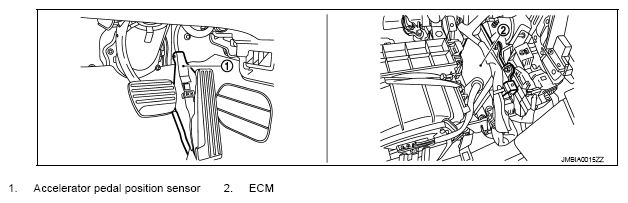

Fig 17: Automatic Speed Control Device Component Parts Location (17 Of 21)

G09470816

Courtesy of NISSAN NORTH AMERICA, INC.

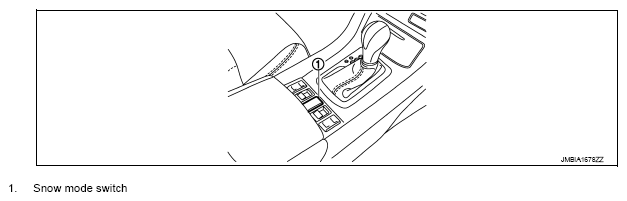

Fig 18: Automatic Speed Control Device Component Parts Location (18 Of 21)

G09470817

Courtesy of NISSAN NORTH AMERICA, INC.

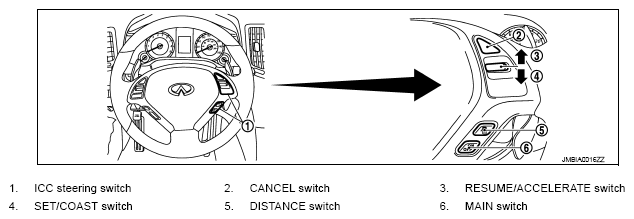

Fig 19: Automatic Speed Control Device Component Parts Location (19 Of 21)

G09470818

Courtesy of NISSAN NORTH AMERICA, INC.

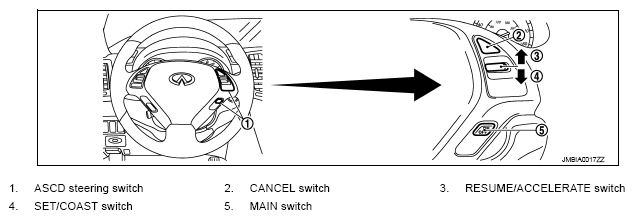

Fig 20: Automatic Speed Control Device Component Parts Location (20 Of 21)

G09470819

Courtesy of NISSAN NORTH AMERICA, INC.

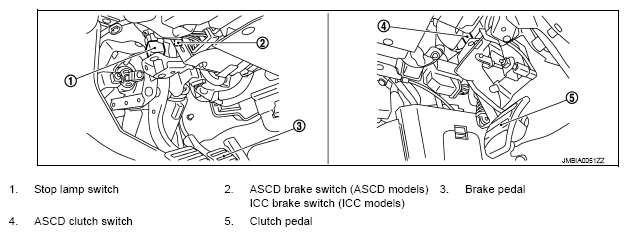

Fig 21: Automatic Speed Control Device Component Parts Location (21 Of 21)

G09470820

Courtesy of NISSAN NORTH AMERICA, INC.
