Component Parts Location

Fig 1: Cooling Fan Control Component Parts Location (1 Of 21)

G09470822

Courtesy of NISSAN NORTH AMERICA, INC.

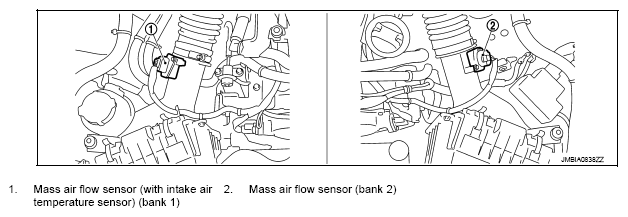

Fig 2: Cooling Fan Control Component Parts Location (2 Of 21)

G09470823

Courtesy of NISSAN NORTH AMERICA, INC.

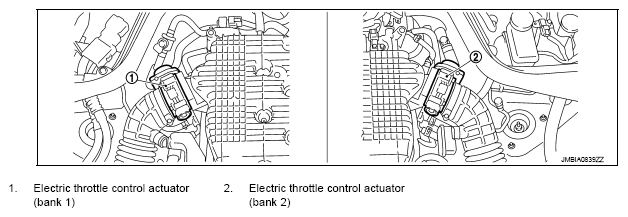

Fig 3: Cooling Fan Control Component Parts Location (3 Of 21)

G09470824

Courtesy of NISSAN NORTH AMERICA, INC.

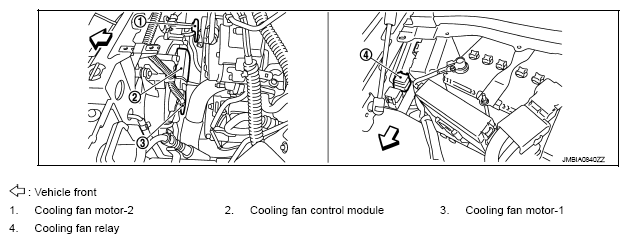

Fig 4: Cooling Fan Control Component Parts Location (4 Of 21)

G09470825

Courtesy of NISSAN NORTH AMERICA, INC.

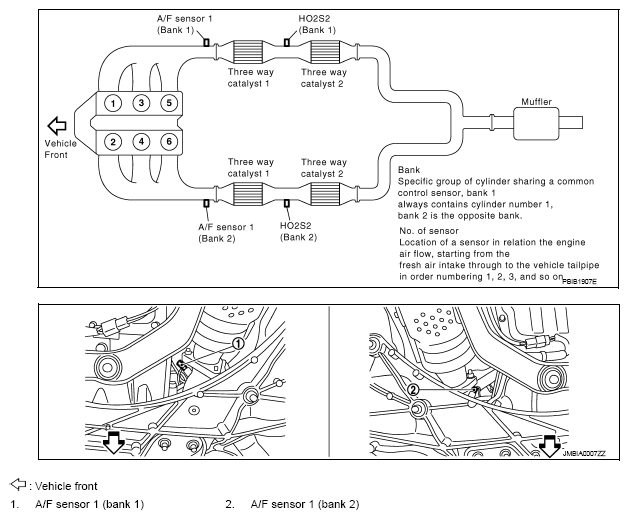

Fig 5: Cooling Fan Control Component Parts Location (5 Of 21)

G09470826

Courtesy of NISSAN NORTH AMERICA, INC.

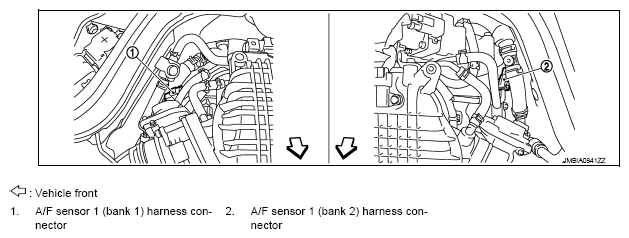

Fig 6: Cooling Fan Control Component Parts Location (6 Of 21)

G09470827

Courtesy of NISSAN NORTH AMERICA, INC.

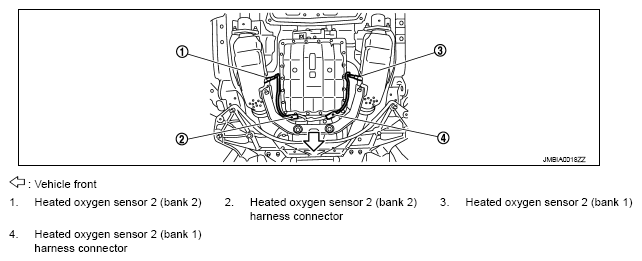

Fig 7: Cooling Fan Control Component Parts Location (7 Of 21)

G09470828

Courtesy of NISSAN NORTH AMERICA, INC.

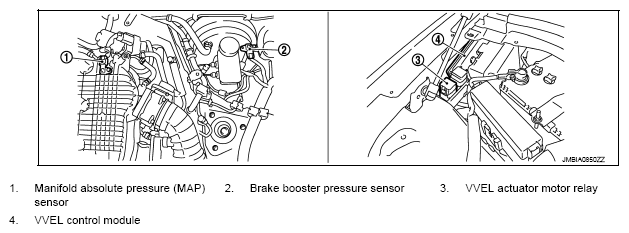

Fig 8: Cooling Fan Control Component Parts Location (8 Of 21)

G09470829

Courtesy of NISSAN NORTH AMERICA, INC.

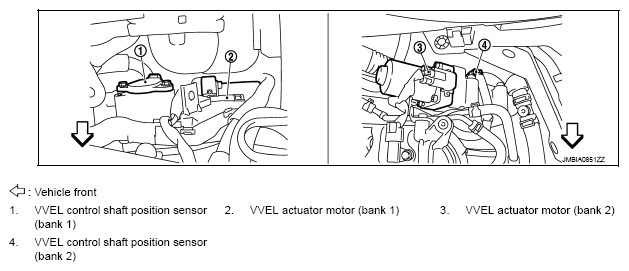

Fig 9: Cooling Fan Control Component Parts Location (9 Of 21)

G09470830

Courtesy of NISSAN NORTH AMERICA, INC.

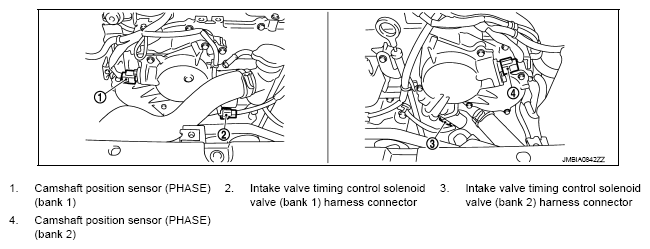

Fig 10: Cooling Fan Control Component Parts Location (10 Of 21)

G09470831

Courtesy of NISSAN NORTH AMERICA, INC.

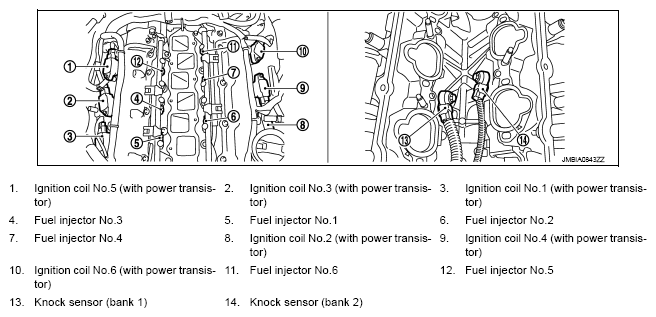

Fig 11: Cooling Fan Control Component Parts Location (11 Of 21)

G09470832

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Cooling Fan Control Component Parts Location (12 Of 21)

G09470833

Courtesy of NISSAN NORTH AMERICA, INC.

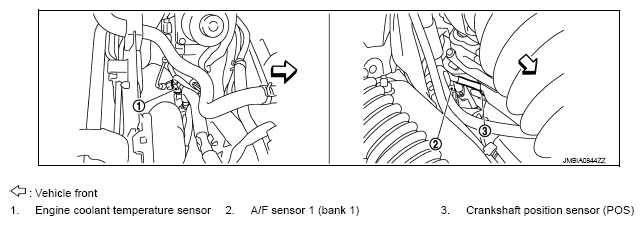

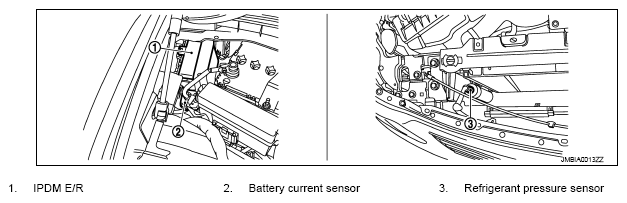

Fig 13: Cooling Fan Control Component Parts Location (13 Of 21)

G09470834

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Cooling Fan Control Component Parts Location (14 Of 21)

G09470835

Courtesy of NISSAN NORTH AMERICA, INC.

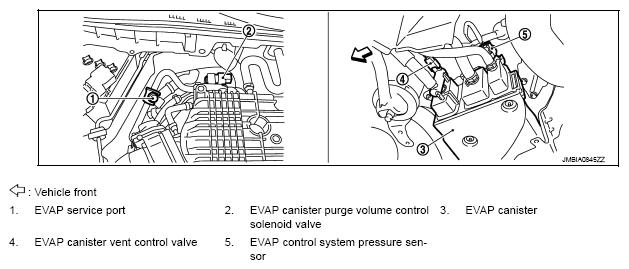

Fig 15: Cooling Fan Control Component Parts Location (15 Of 21)

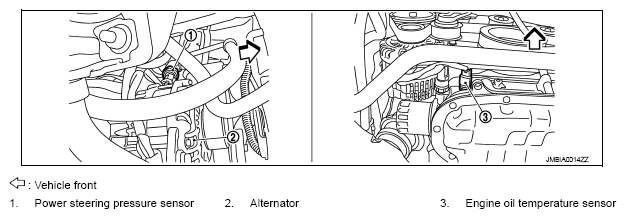

G09470836

Courtesy of NISSAN NORTH AMERICA, INC.

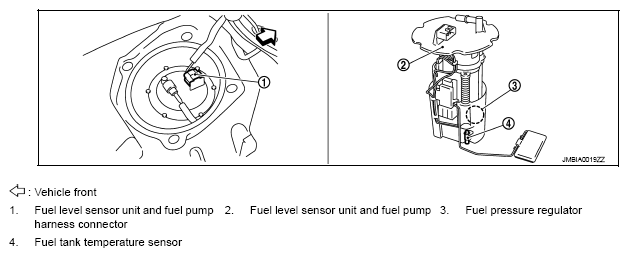

Fig 16: Cooling Fan Control Component Parts Location (16 Of 21)

G09470837

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Cooling Fan Control Component Parts Location (17 Of 21)

G09470838

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Cooling Fan Control Component Parts Location (18 Of 21)

G09470839

Courtesy of NISSAN NORTH AMERICA, INC.

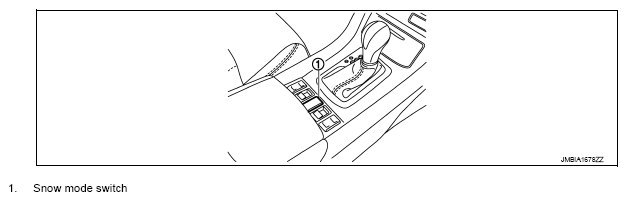

Fig 19: Cooling Fan Control Component Parts Location (19 Of 21)

G09470840

Courtesy of NISSAN NORTH AMERICA, INC.

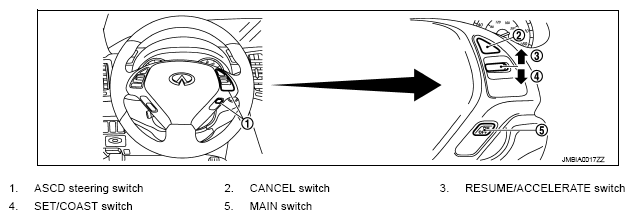

Fig 20: Cooling Fan Control Component Parts Location (20 Of 21)

G09470841

Courtesy of NISSAN NORTH AMERICA, INC.

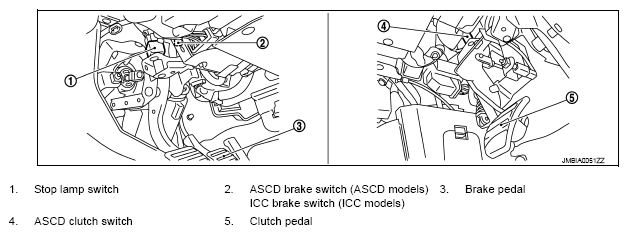

Fig 21: Cooling Fan Control Component Parts Location (21 Of 21)

G09470842

Courtesy of NISSAN NORTH AMERICA, INC.
