Component Parts Location

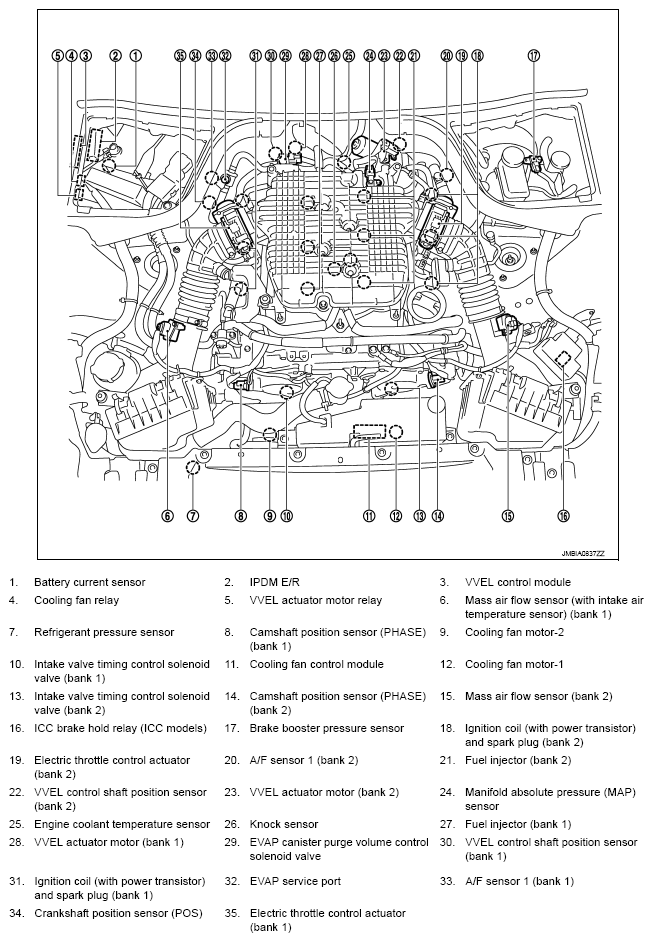

Fig 1: VVEL System Component Parts Location (1 Of 21)

G09470915

Courtesy of NISSAN NORTH AMERICA, INC.

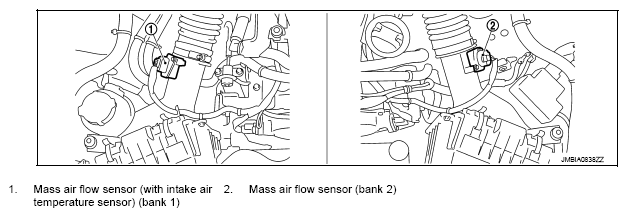

Fig 2: VVEL System Component Parts Location (2 Of 21)

G09470917

Courtesy of NISSAN NORTH AMERICA, INC.

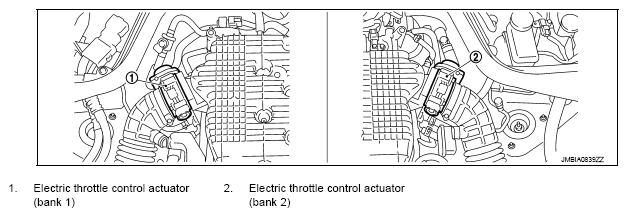

Fig 3: VVEL System Component Parts Location (3 Of 21)

G09470918

Courtesy of NISSAN NORTH AMERICA, INC.

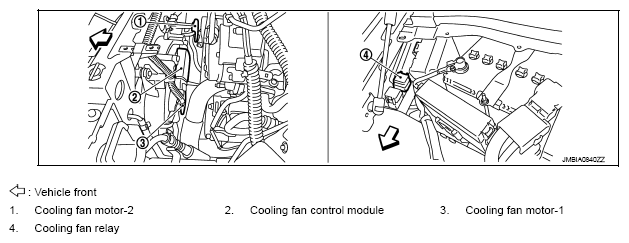

Fig 4: VVEL System Component Parts Location (4 Of 21)

G09470919

Courtesy of NISSAN NORTH AMERICA, INC.

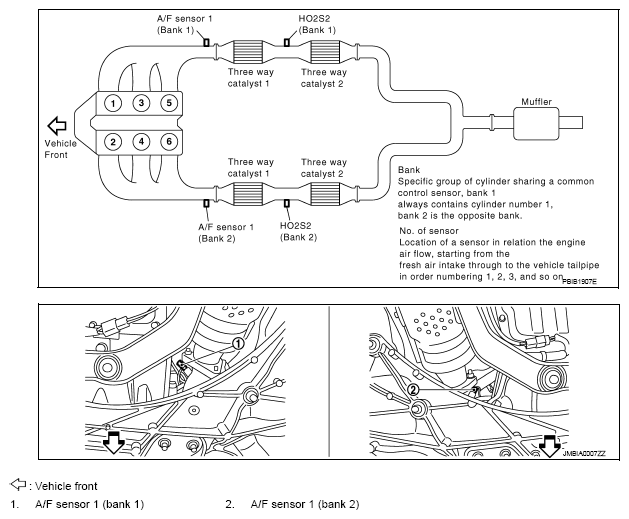

Fig 5: VVEL System Component Parts Location (5 Of 21)

G09470920

Courtesy of NISSAN NORTH AMERICA, INC.

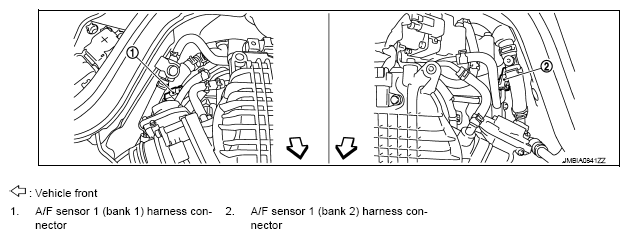

Fig 6: VVEL System Component Parts Location (6 Of 21)

G09470921

Courtesy of NISSAN NORTH AMERICA, INC.

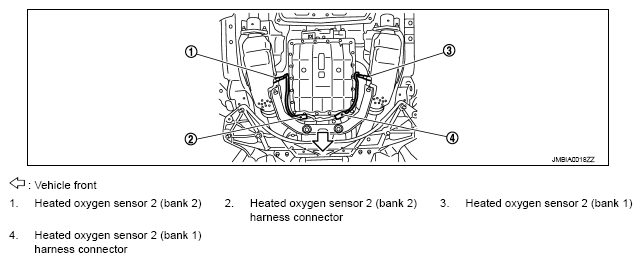

Fig 7: VVEL System Component Parts Location (7 Of 21)

G09470922

Courtesy of NISSAN NORTH AMERICA, INC.

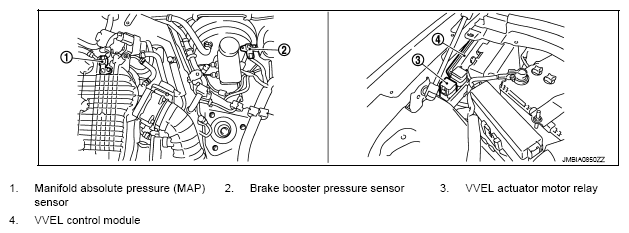

Fig 8: VVEL System Component Parts Location (8 Of 21)

G09470923

Courtesy of NISSAN NORTH AMERICA, INC.

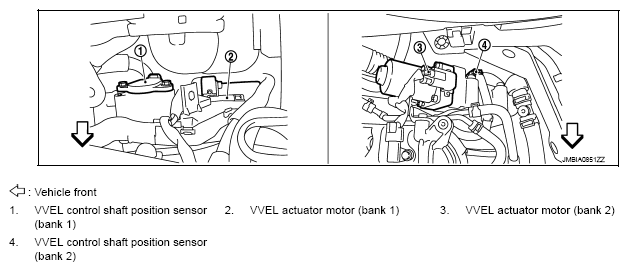

Fig 9: VVEL System Component Parts Location (9 Of 21)

G09470924

Courtesy of NISSAN NORTH AMERICA, INC.

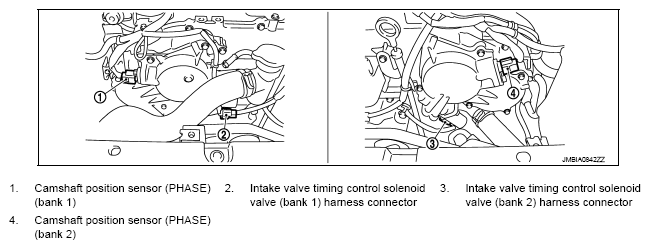

Fig 10: VVEL System Component Parts Location (10 Of 21)

G09470925

Courtesy of NISSAN NORTH AMERICA, INC.

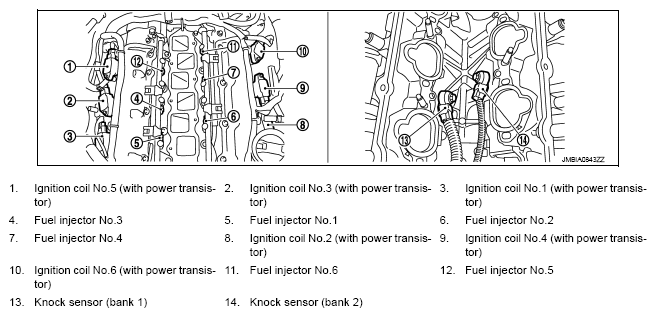

Fig 11: VVEL System Component Parts Location (11 Of 21)

G09470926

Courtesy of NISSAN NORTH AMERICA, INC.

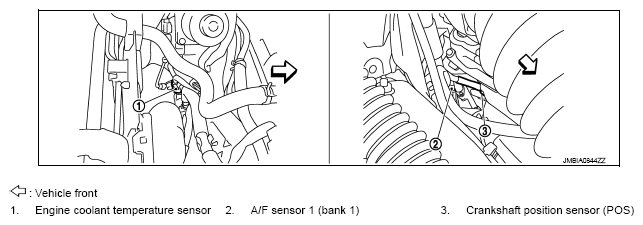

Fig 12: VVEL System Component Parts Location (12 Of 21)

G09470927

Courtesy of NISSAN NORTH AMERICA, INC.

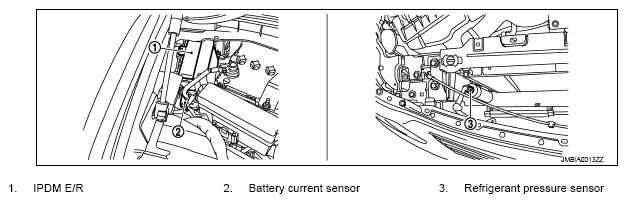

Fig 13: VVEL System Component Parts Location (13 Of 21)

G09470928

Courtesy of NISSAN NORTH AMERICA, INC.

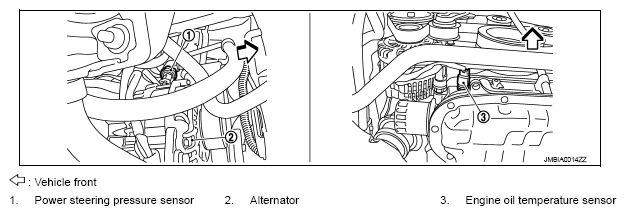

Fig 14: VVEL System Component Parts Location (14 Of 21)

G09470929

Courtesy of NISSAN NORTH AMERICA, INC.

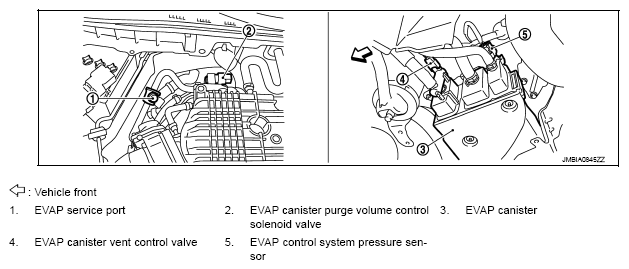

Fig 15: VVEL System Component Parts Location (15 Of 21)

G09470930

Courtesy of NISSAN NORTH AMERICA, INC.

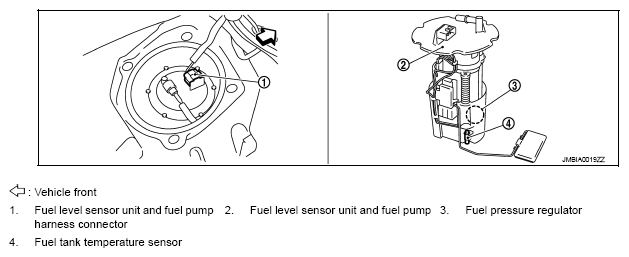

Fig 16: VVEL System Component Parts Location (16 Of 21)

G09470931

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: VVEL System Component Parts Location (17 Of 21)

G09470932

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: VVEL System Component Parts Location (18 Of 21)

G09470933

Courtesy of NISSAN NORTH AMERICA, INC.

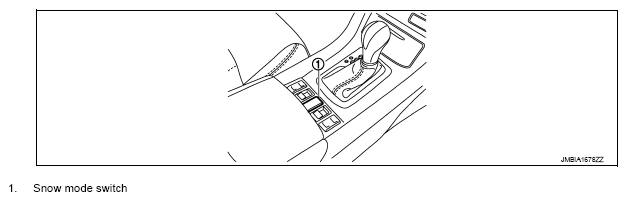

Fig 19: VVEL System Component Parts Location (19 Of 21)

G09470934

Courtesy of NISSAN NORTH AMERICA, INC.

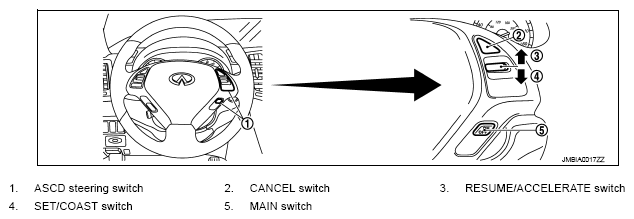

Fig 20: VVEL System Component Parts Location (20 Of 21)

G09470935

Courtesy of NISSAN NORTH AMERICA, INC.

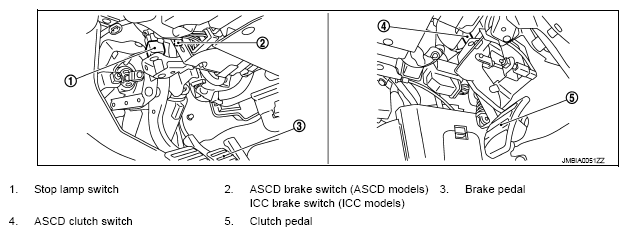

Fig 21: VVEL System Component Parts Location (21 Of 21)

G09470936

Courtesy of NISSAN NORTH AMERICA, INC.
