Fuel Pressure Release

With CONSULT

1. Turn ignition switch ON.
2. Select ENGINE using CONSULT.
3. Perform INSPECTION MODE 5. Refer to "DESCRIPTION ".
4. Perform "FUEL PRESSURE RELEASE " in "WORK SUPPORT" mode of "ENGINE".
5. Start engine.
6. After engine stalls, crank it two or three times to release all fuel pressure.
7. Turn ignition switch OFF.

Without CONSULT

1. Remove fuel pump fuse (1) located in IPDM E/R (2).
2. Perform INSPECTION MODE 5. Refer to "DESCRIPTION ".
3. Start engine.
4. After engine stalls, crank it two or three times to release all fuel pressure.
5. Turn ignition switch OFF.
6. Reinstall fuel pump fuse after servicing fuel system.

: INSPECTION END

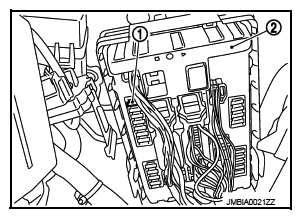

Fig 1: Identifying Fuel Pump Fuse In IPDM E/R

Courtesy of NISSAN NORTH AMERICA, INC.
