Vehicle Equipment Identification Information

NOTE: Check CAN system type from the vehicle shape and equipment.

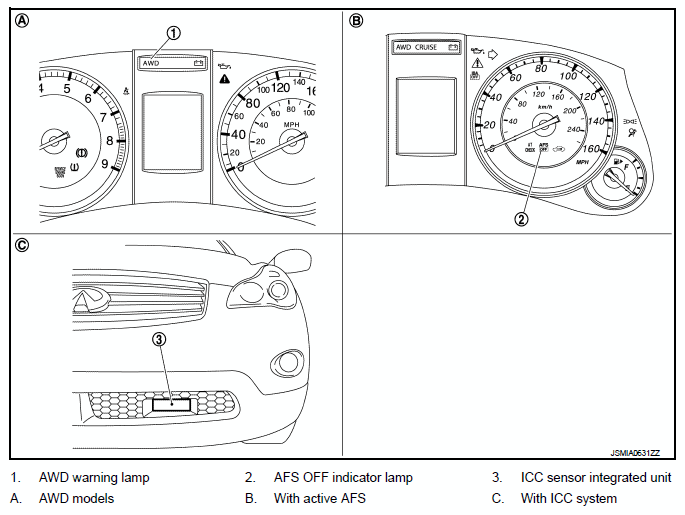

Fig 1: Identifying AWD Warning Lamp (AWD Models), AFS OFF Indicator Lamp (With Active AFS) And ICC Sensor Integrated Unit (With ICC System)
G09175152Courtesy of NISSAN NORTH AMERICA, INC.
