Exploded View

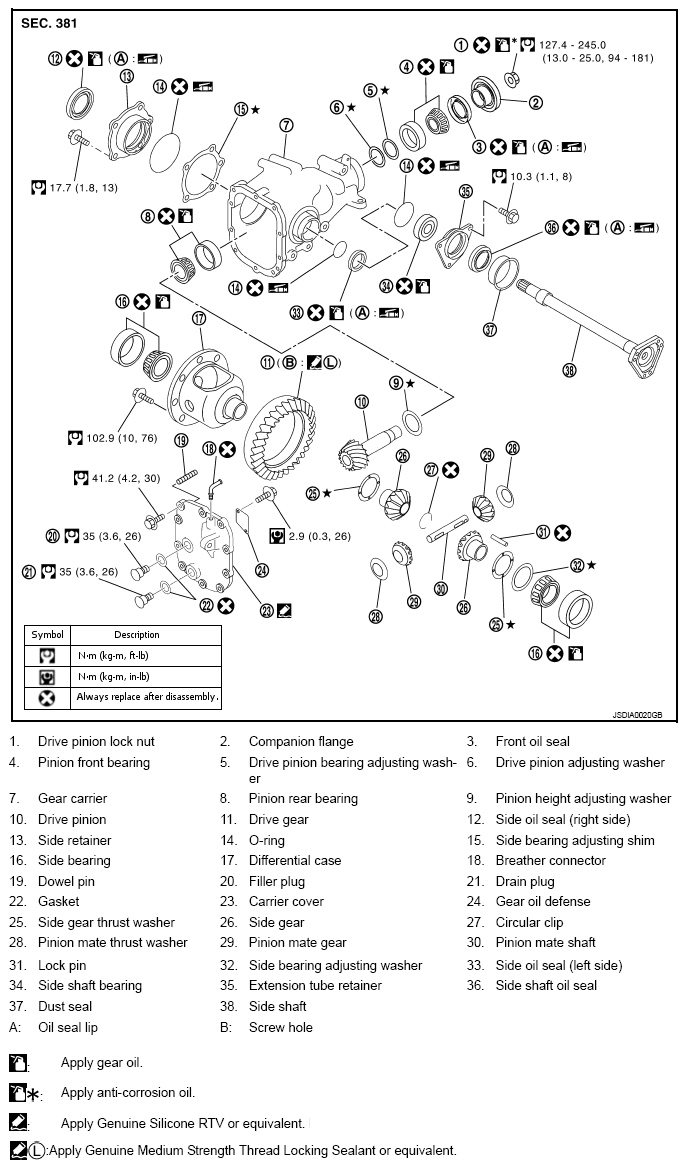

Fig 1: Exploded View Of Differential Assembly
G09175899Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
