Connector Terminal Identification

Fig 1: Body Control Module Connector End View (1 Of 10)
G09174162Courtesy of NISSAN NORTH AMERICA, INC.

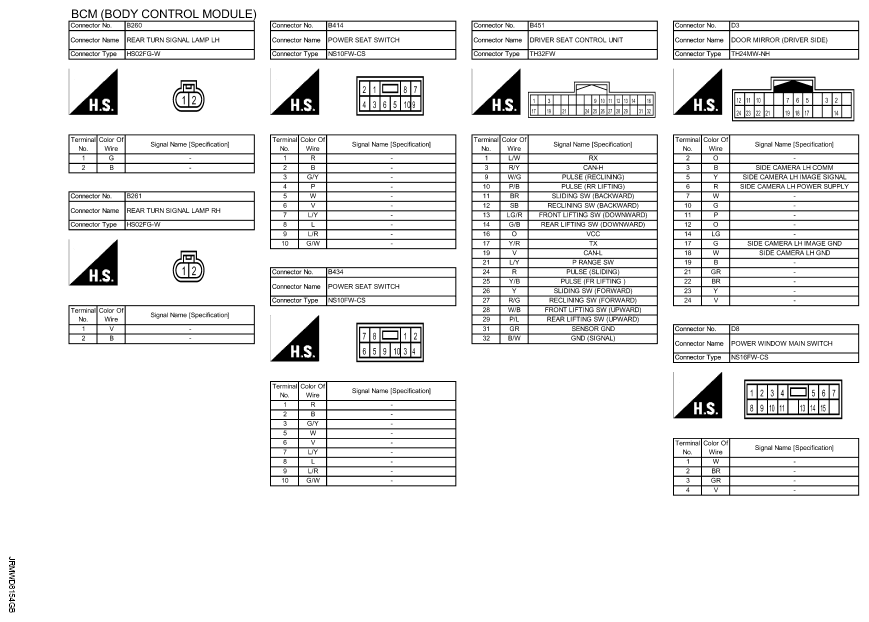

Fig 2: Body Control Module Connector End View (2 Of 10)
G09174163Courtesy of NISSAN NORTH AMERICA, INC.

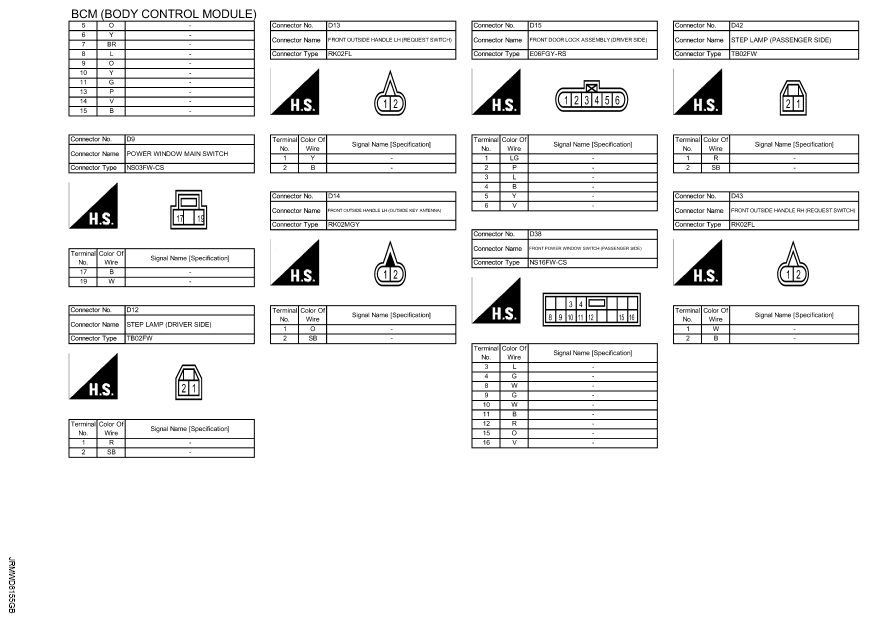

Fig 3: Body Control Module Connector End View (3 Of 10)
G09174164Courtesy of NISSAN NORTH AMERICA, INC.

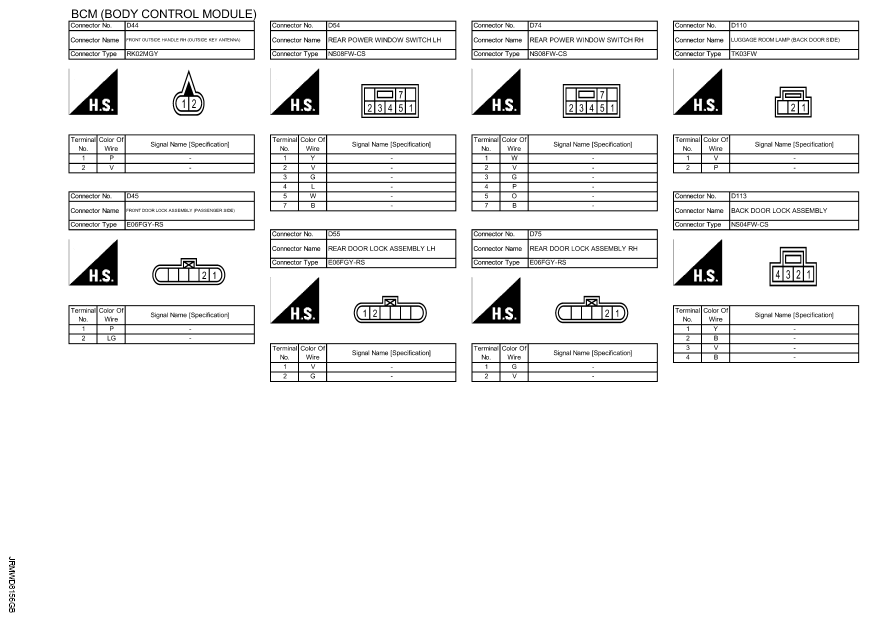

Fig 4: Body Control Module Connector End View (4 Of 10)
G09174165Courtesy of NISSAN NORTH AMERICA, INC.

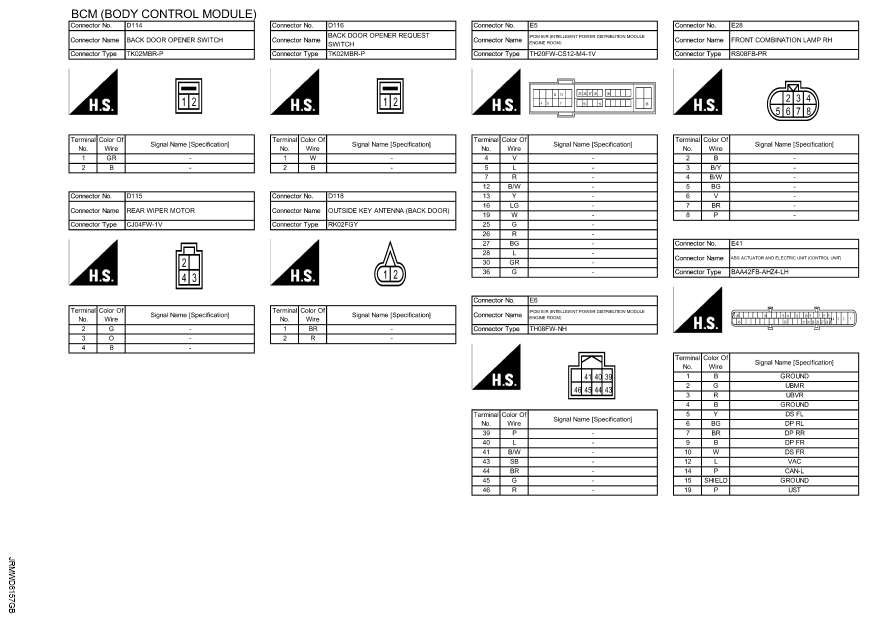

Fig 5: Body Control Module Connector End View (5 Of 10)
G09174166Courtesy of NISSAN NORTH AMERICA, INC.

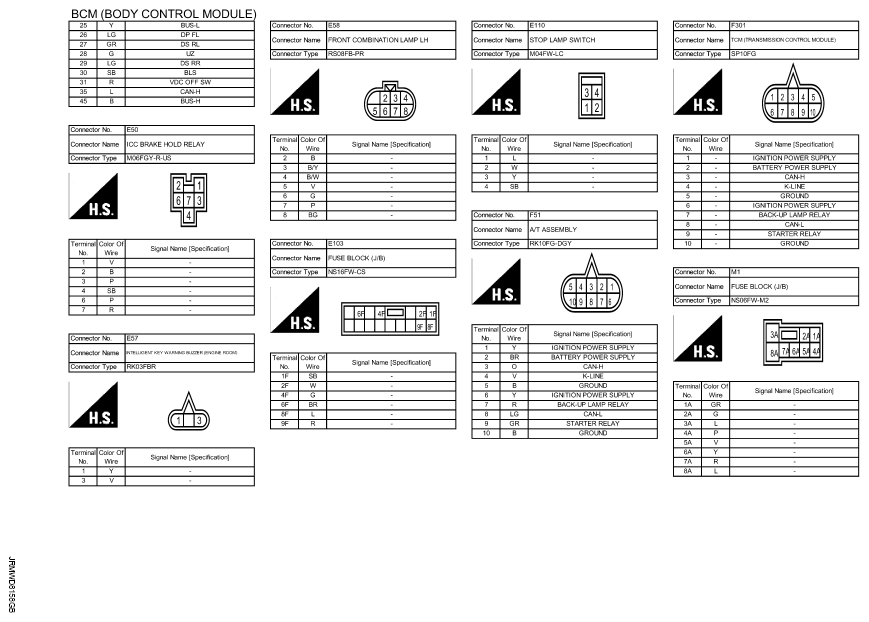

Fig 6: Body Control Module Connector End View (6 Of 10)
G09174167Courtesy of NISSAN NORTH AMERICA, INC.

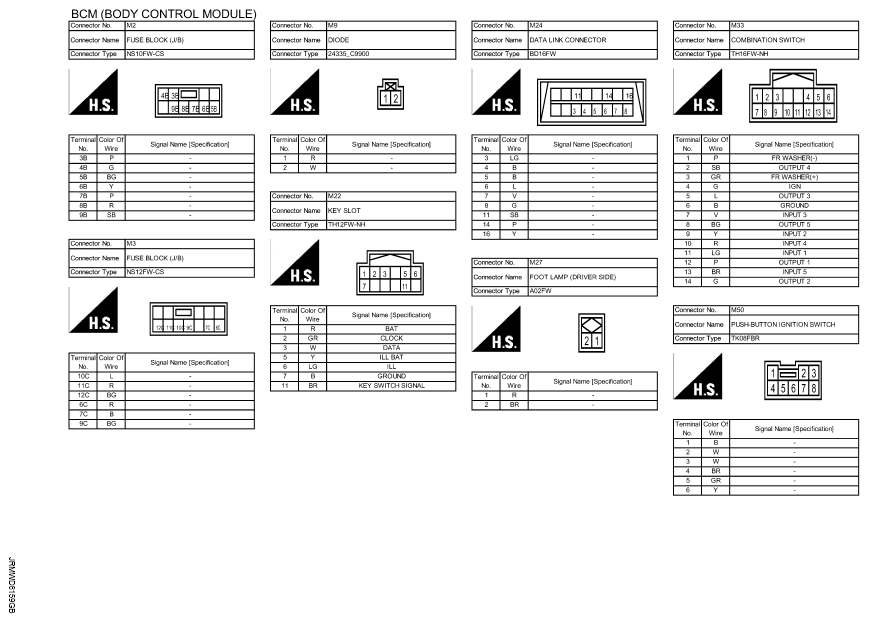

Fig 7: Body Control Module Connector End View (7 Of 10)
G09174168Courtesy of NISSAN NORTH AMERICA, INC.

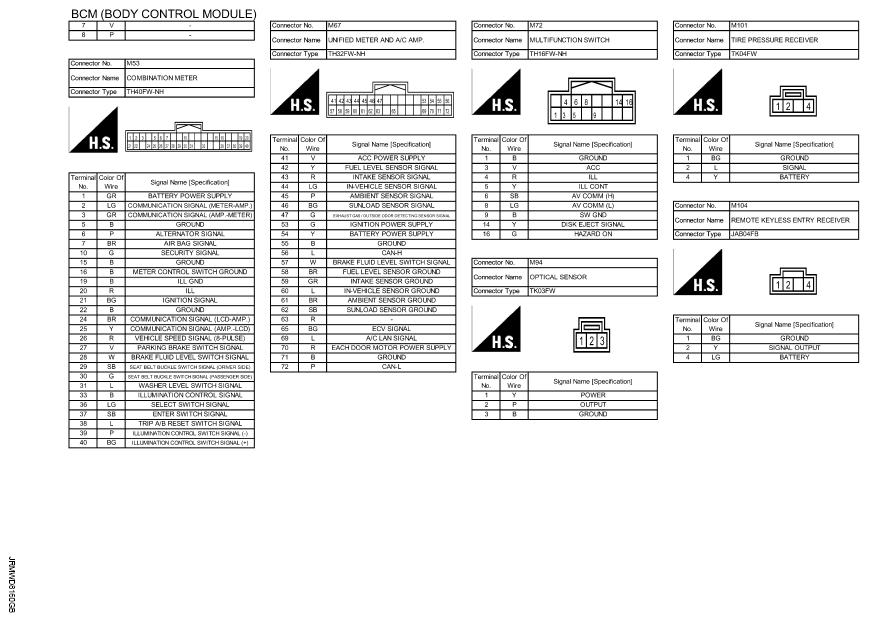

Fig 8: Body Control Module Connector End View (8 Of 10)
G09174169Courtesy of NISSAN NORTH AMERICA, INC.

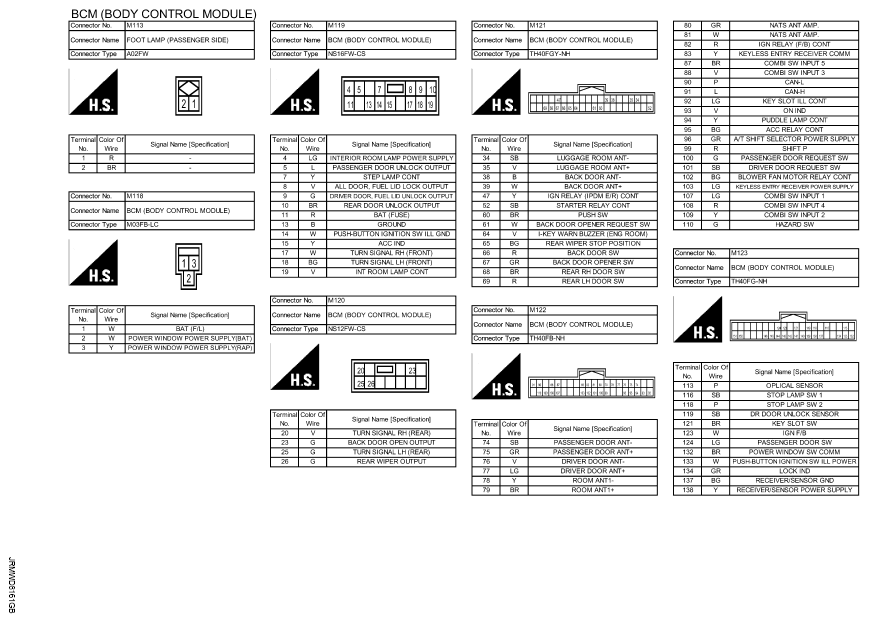

Fig 9: Body Control Module Connector End View (9 Of 10)
G09174170Courtesy of NISSAN NORTH AMERICA, INC.

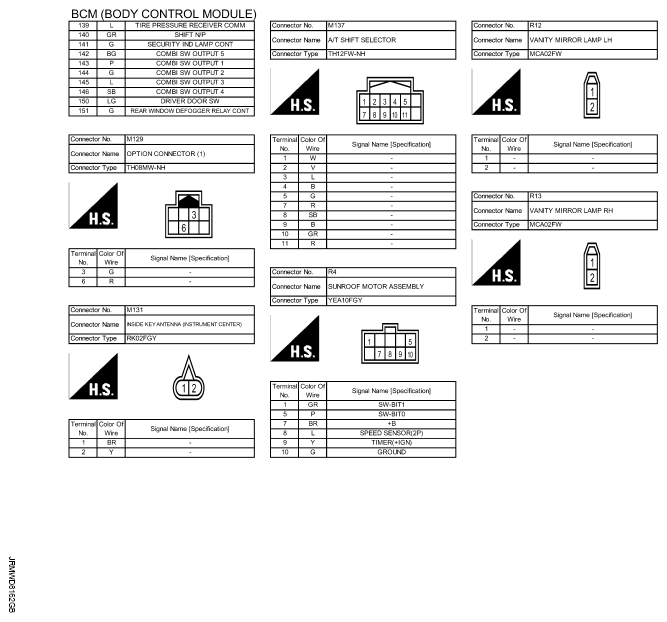

Fig 10: Body Control Module Connector End View (10 Of 10)
G09174171Courtesy of NISSAN NORTH AMERICA, INC.
