Exploded View

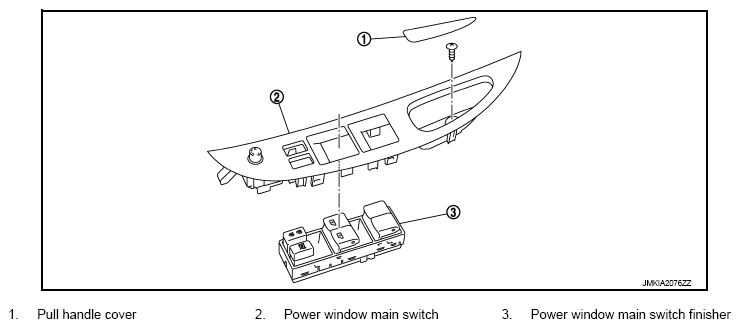

Fig 1: Identifying Pull Handle Cover, Power Window Main Switch And Power Window Main Switch Finisher
G09174746Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: The same procedure is also performed for front power window switch (passenger side) and rear power switch (LH & RH).
Refer to removal and installation procedure. Refer to "REMOVAL AND INSTALLATION ".
