AWD: Exploded View: Removal

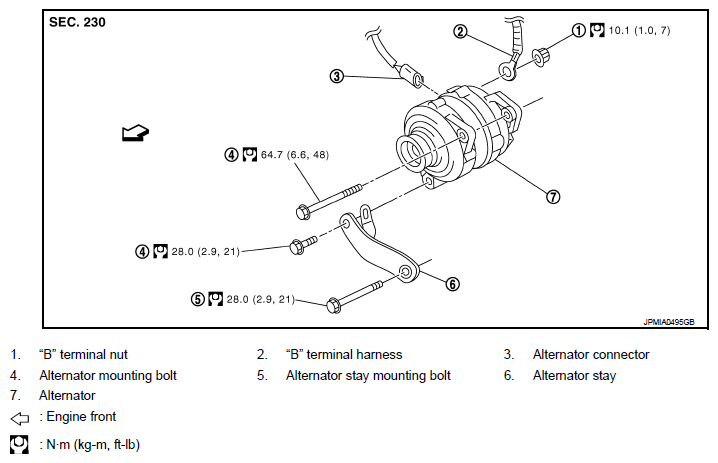

Fig 1: Exploded View Of Alternator (AWD) With Torque Specifications
G09175200Courtesy of NISSAN NORTH AMERICA, INC.
