Engine Mechanical
>>
Engine Mechanical
>>
Periodic Maintenance
>>
Drive Belt
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

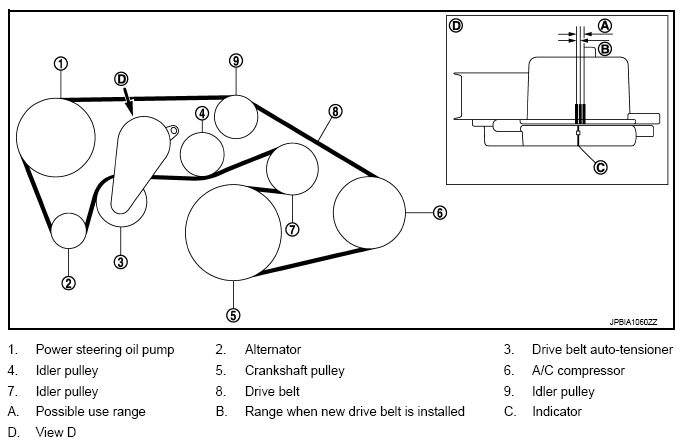

Fig 1: Drive Belt Routing Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
