Without CONSULT

  1. Remove fuel pump fuse (1) located in IPDM E/R (2).

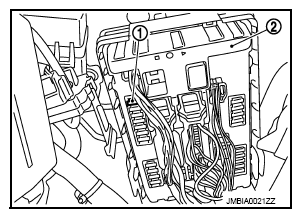

    Fig 1: Locating IPDM E/R And Fuel Pump Fuse
    G09171992Courtesy of NISSAN NORTH AMERICA, INC.
  2. Start engine.
  3. After engine stalls, crank it two or three times to release all fuel pressure.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.
