Component Parts Location

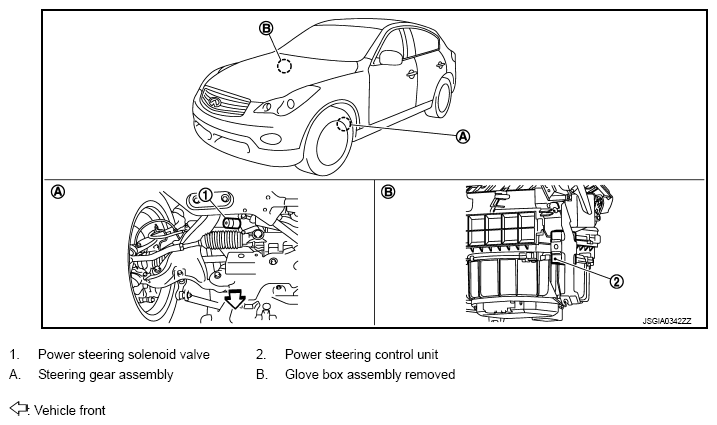

Fig 1: Power Steering Control System Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
