Exploded View

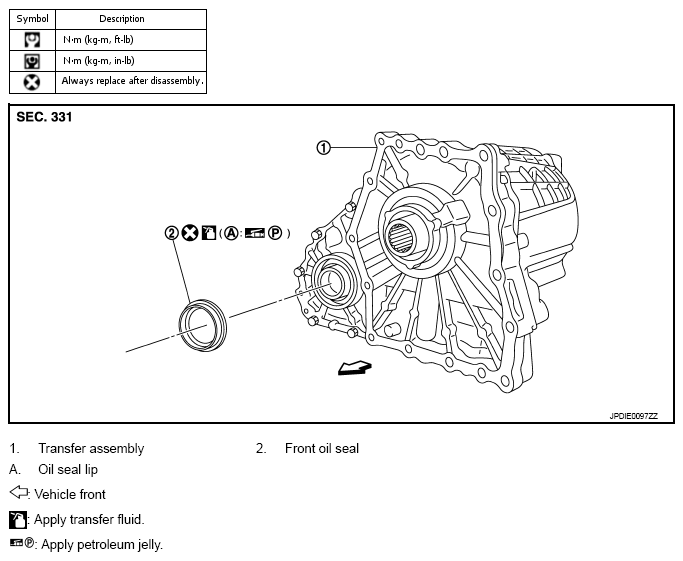

Fig 1: Identifying Transfer Assembly And Front Oil Seal
G09173771Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
