Connector End Views

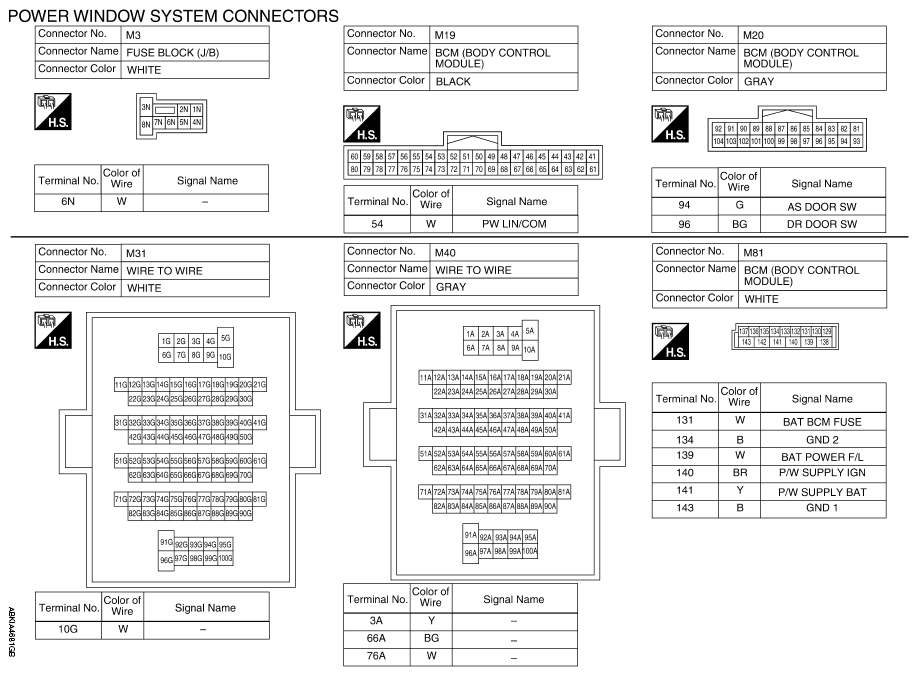

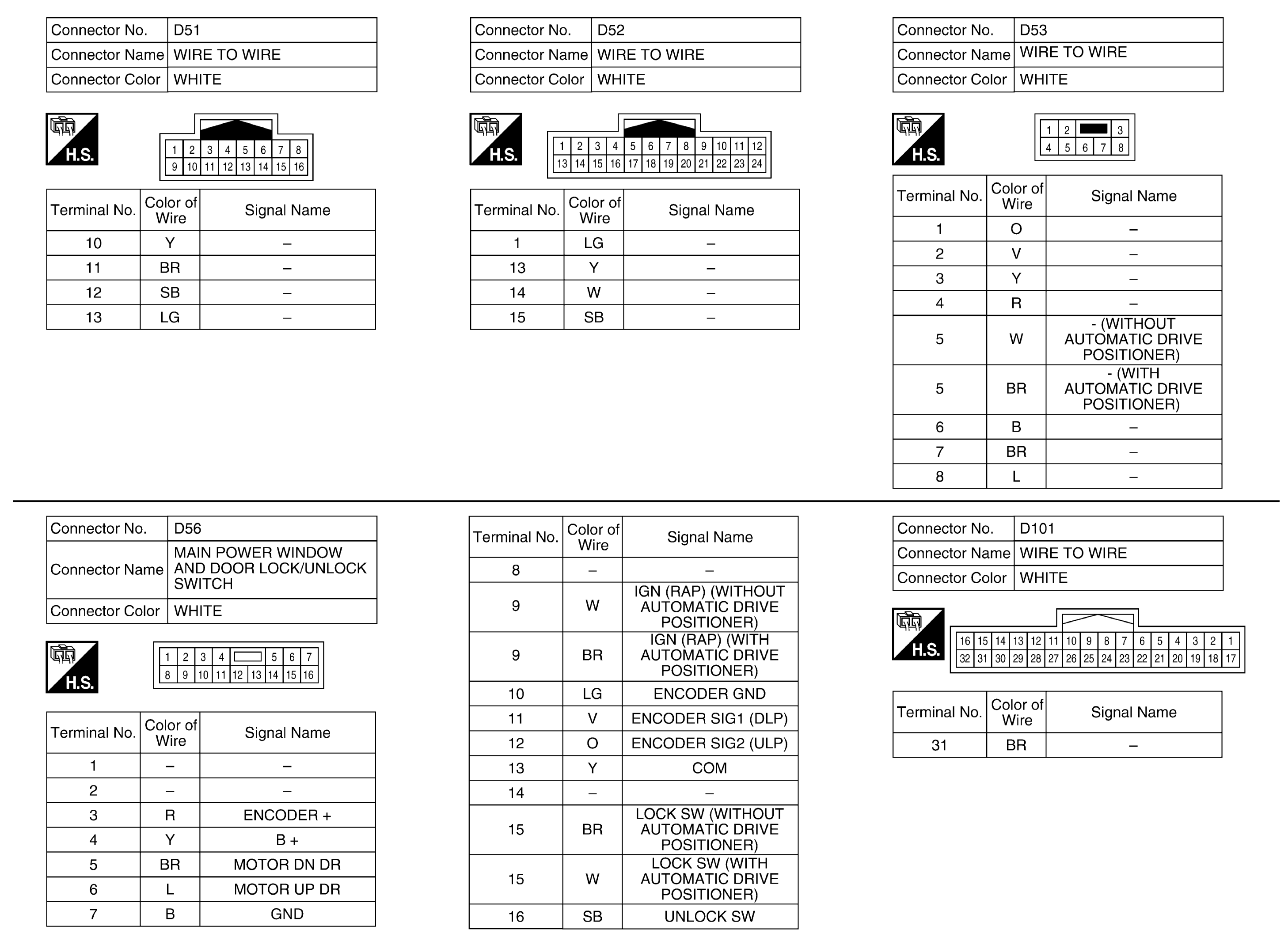

Fig 1: Power Window System Connector End Views (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

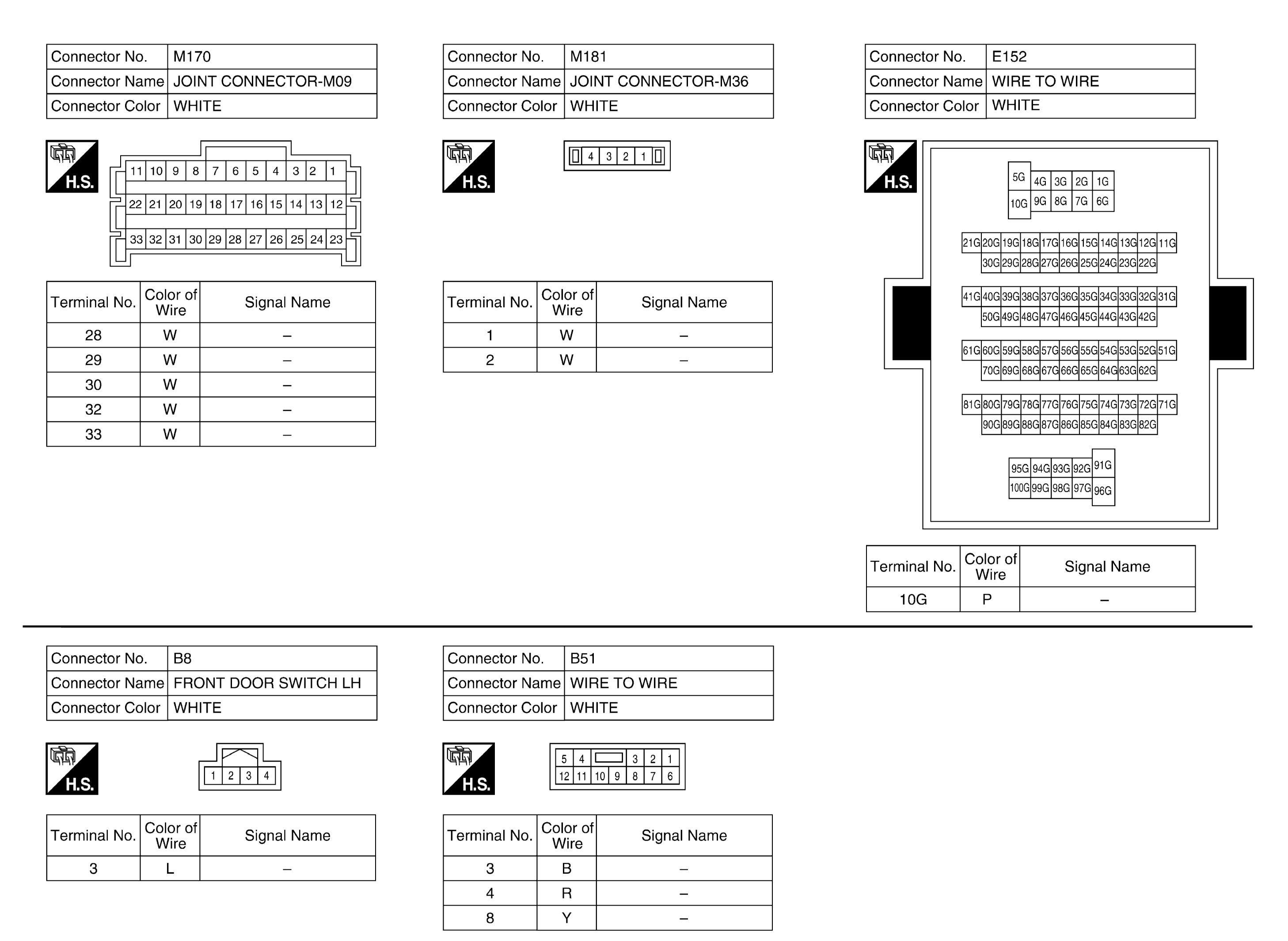

Fig 2: Power Window System Connector End Views (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

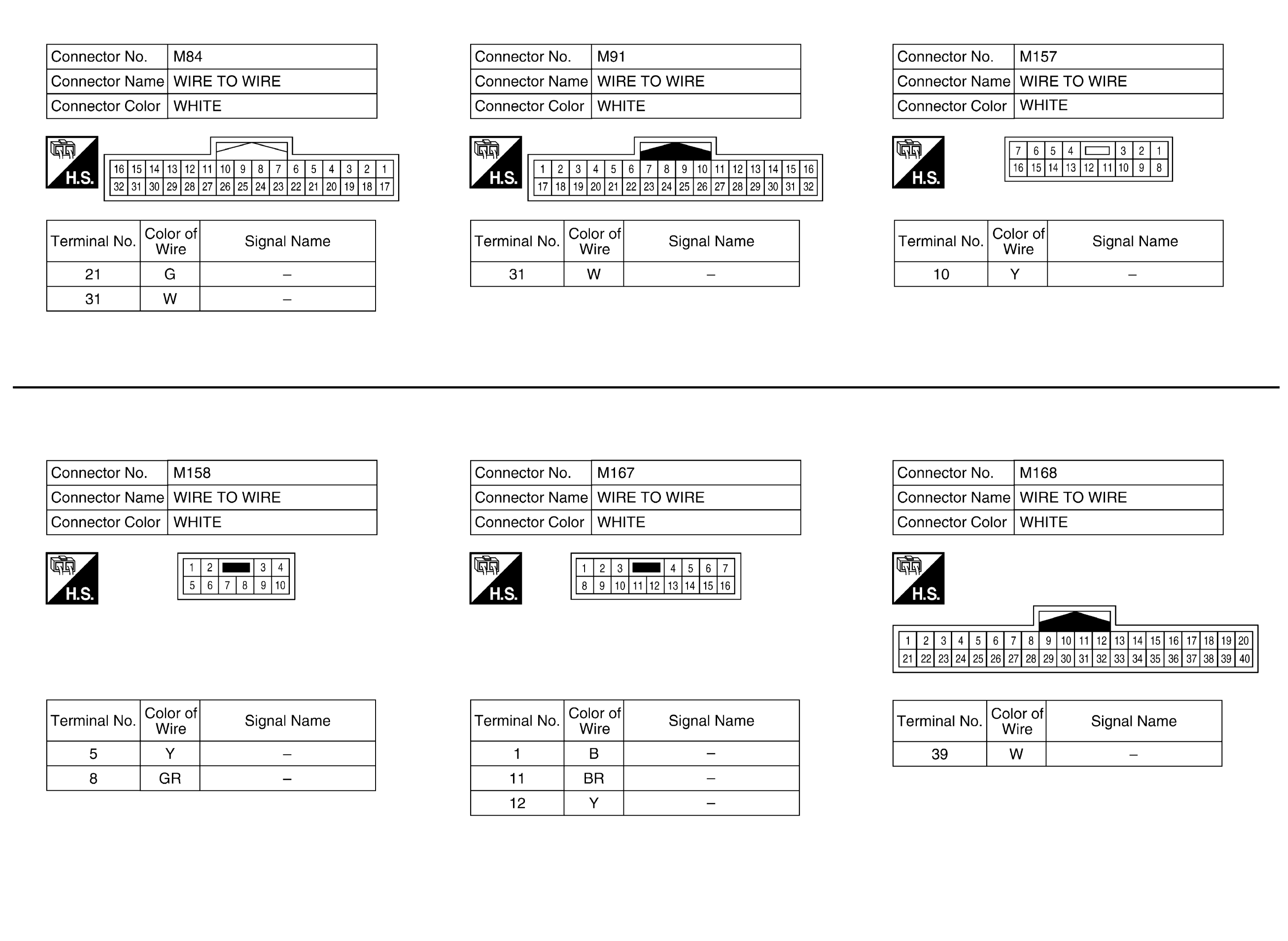

Fig 3: Power Window System Connector End Views (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

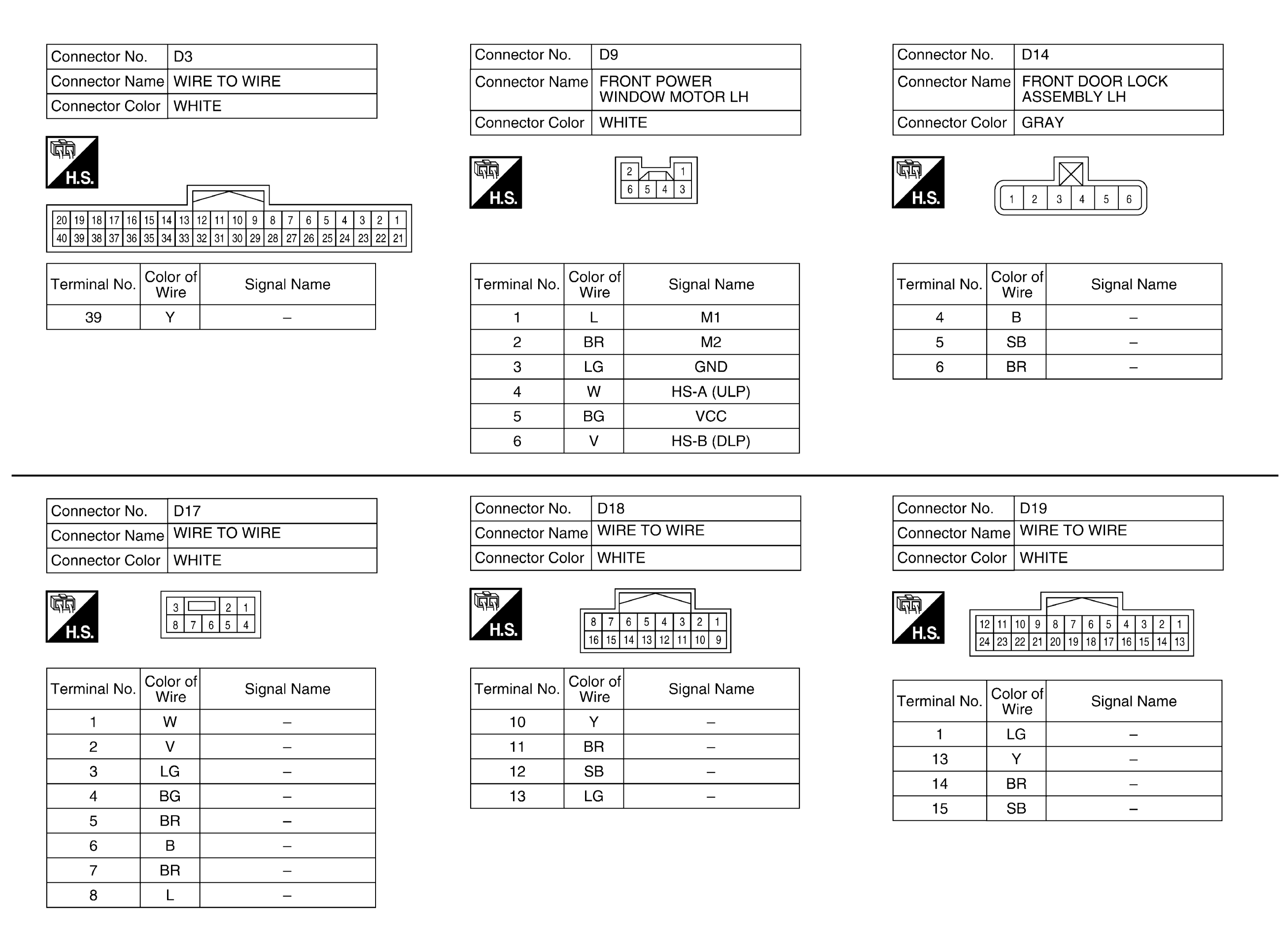

Fig 4: Power Window System Connector End Views (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

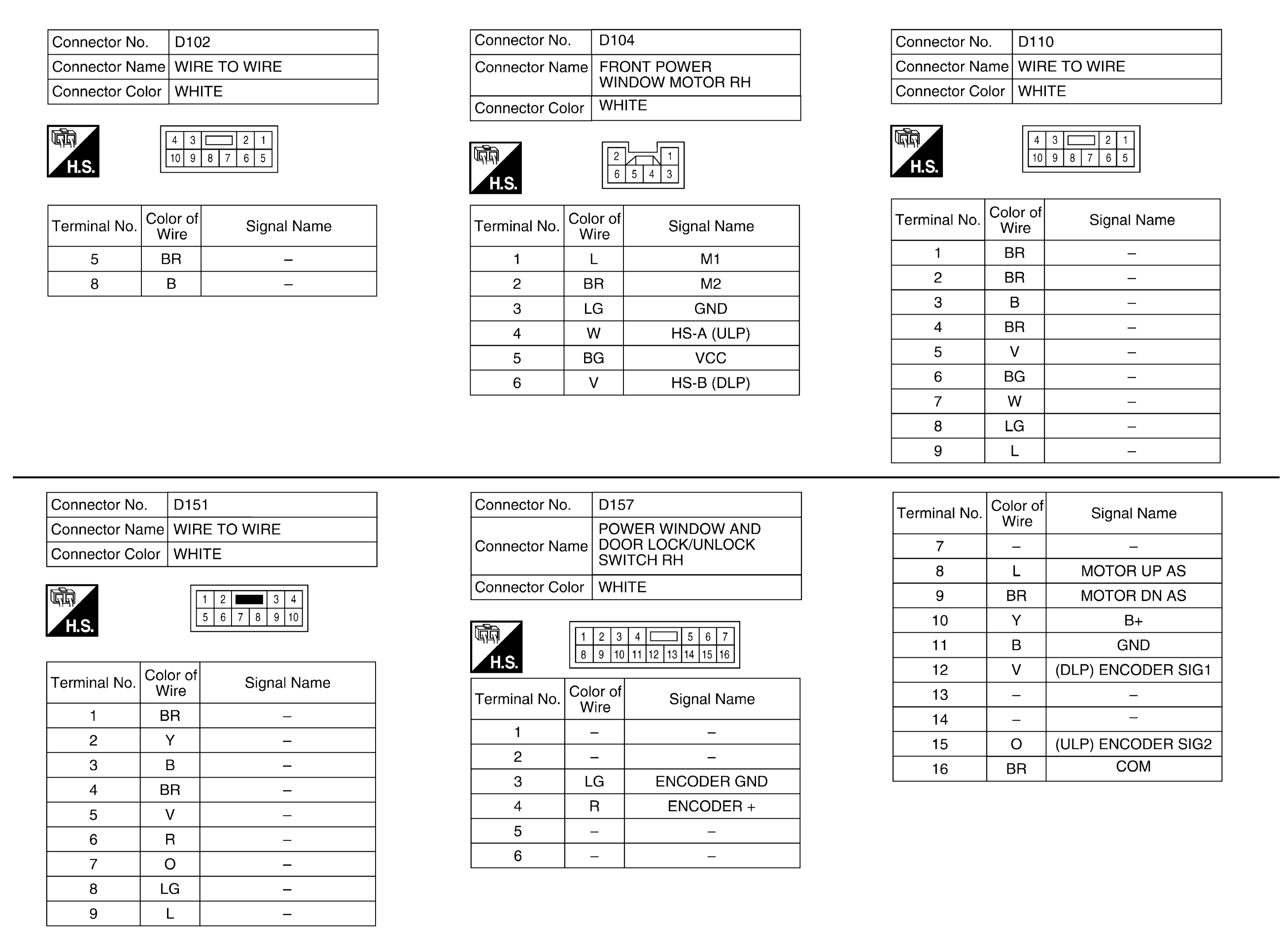

Fig 5: Power Window System Connector End Views(5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

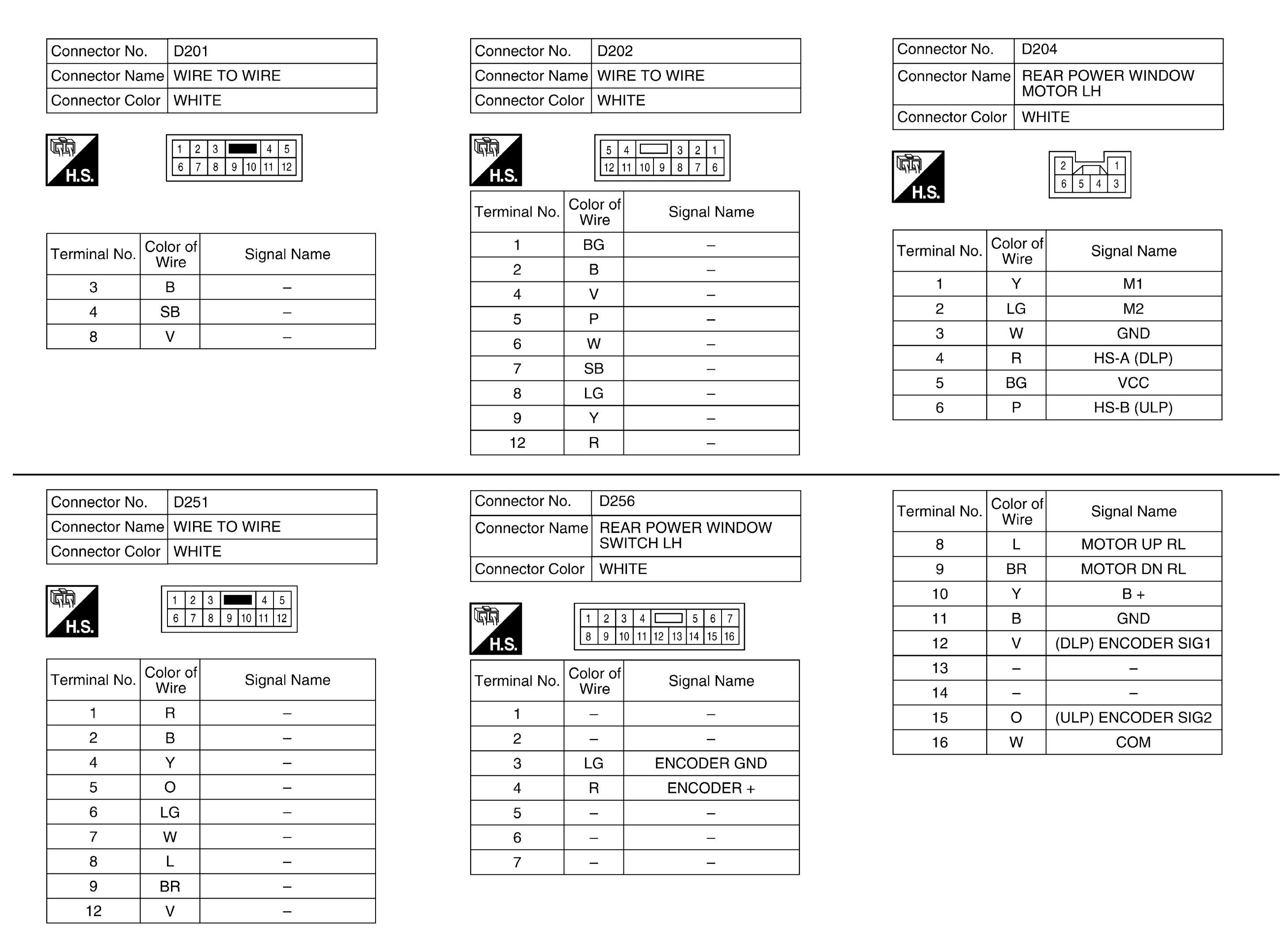

Fig 6: Power Window System Connector End Views (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

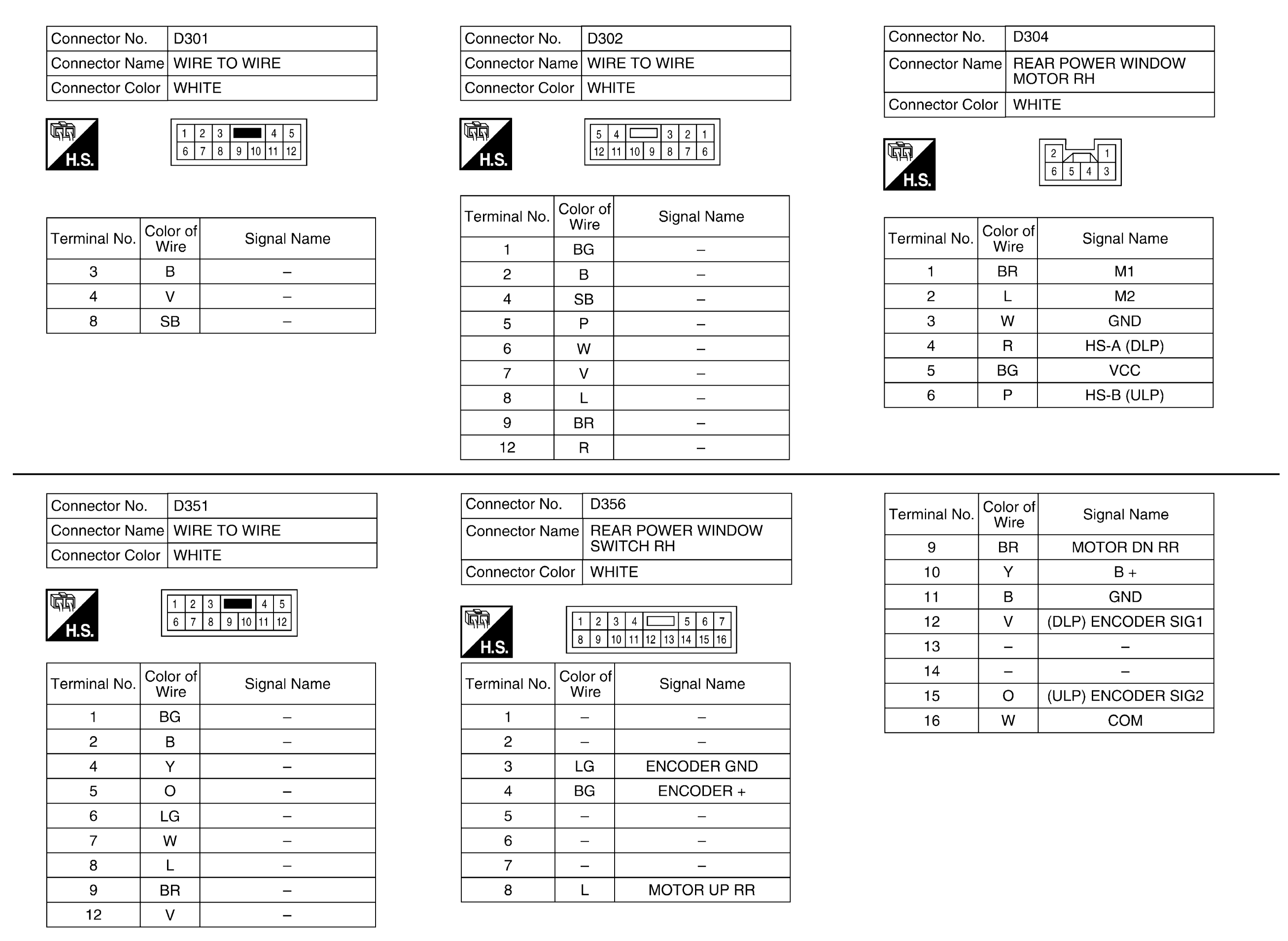

Fig 7: Power Window System Connector End Views (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

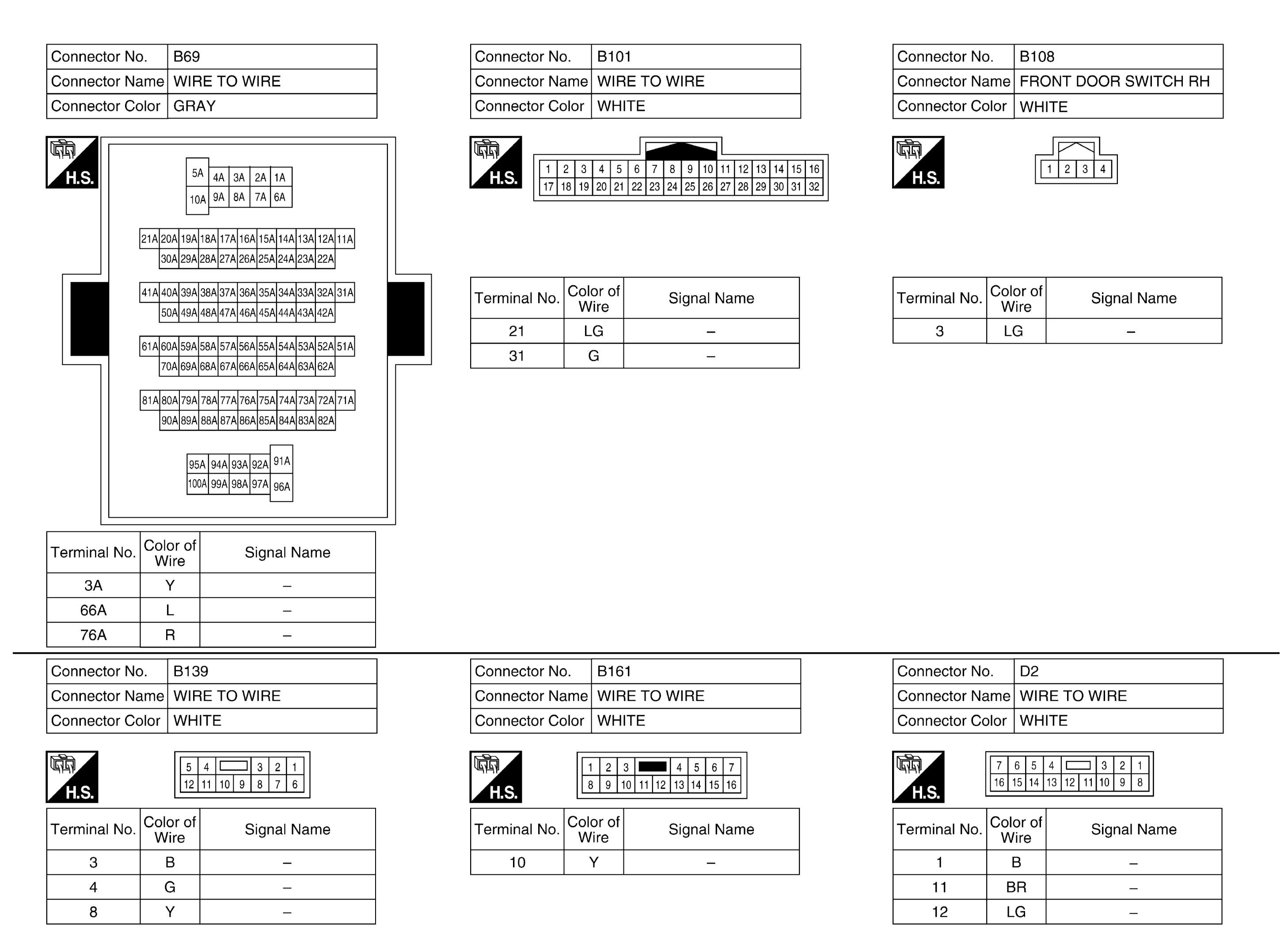

Fig 8: Power Window System Connector End Views (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Power Window System Connector End Views (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
