CAN COMMUNICATION SYSTEM: CAN Communication Signal Chart

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE:

CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.
Refer to "ABBREVIATION LIST " for the abbreviations of the connecting units.

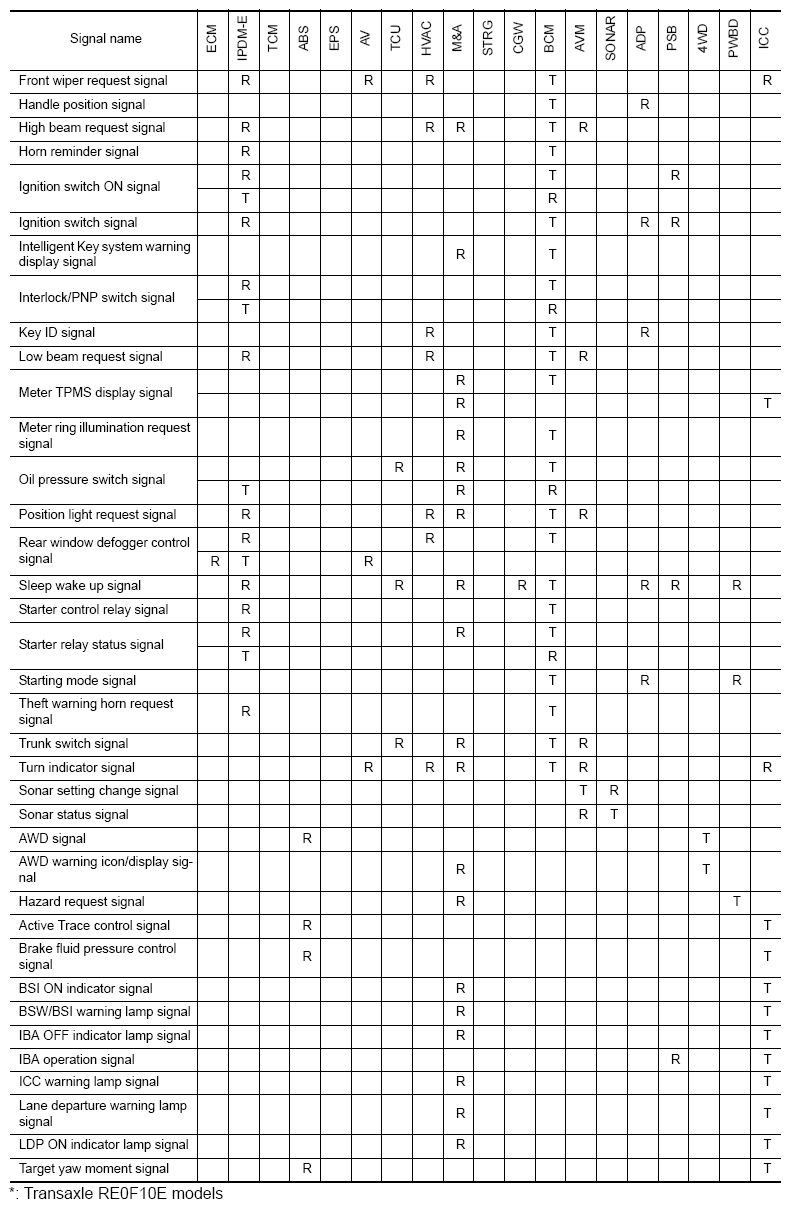

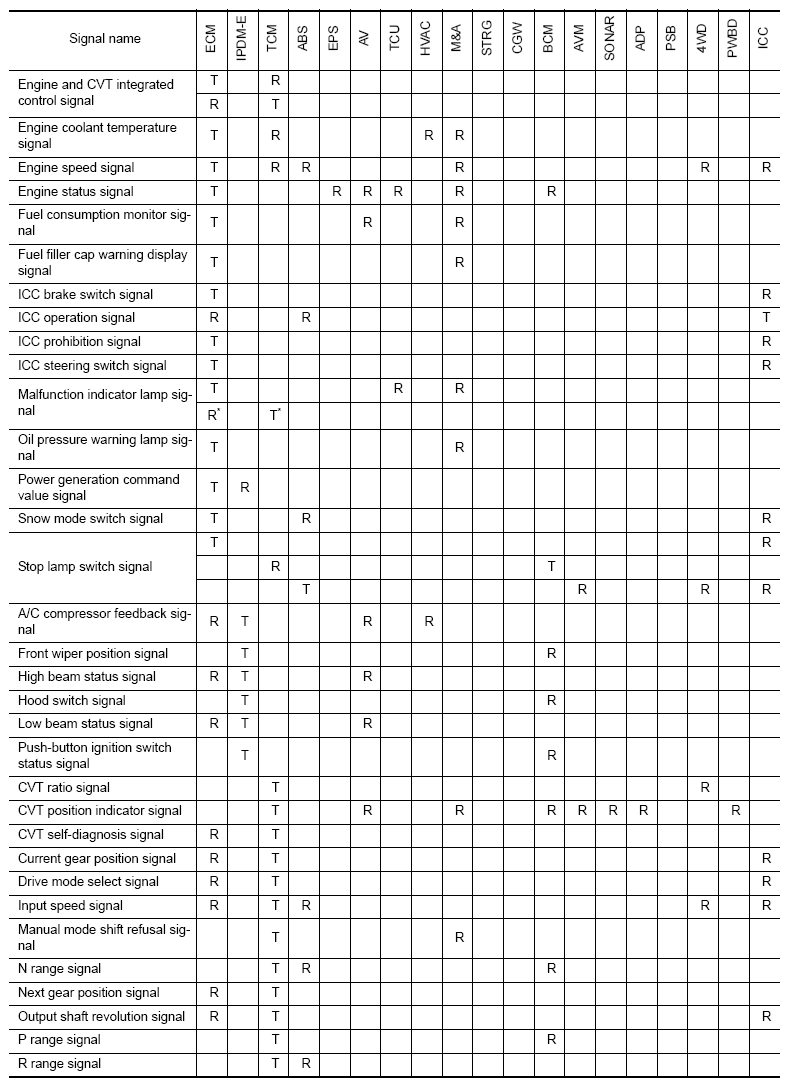

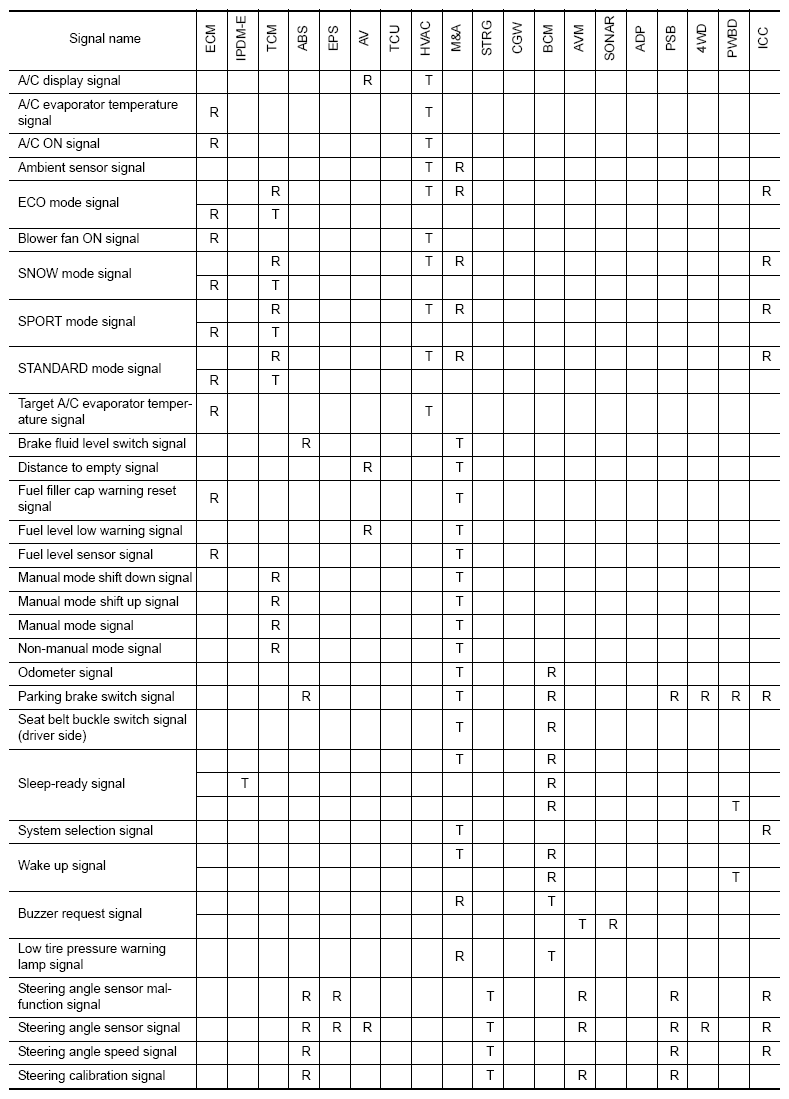

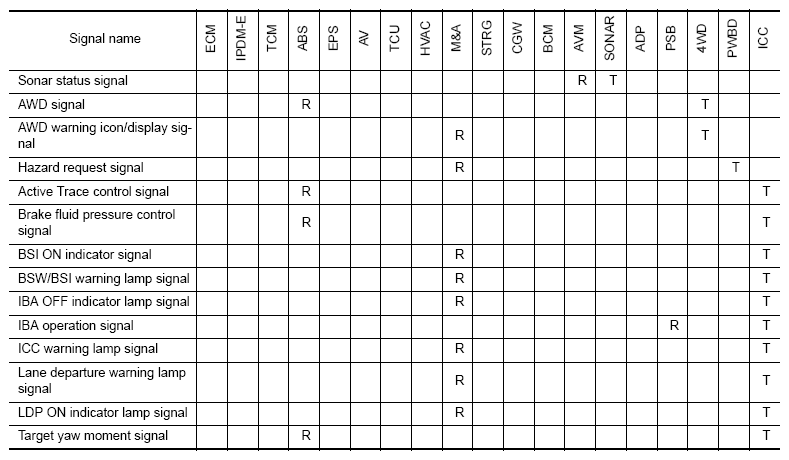

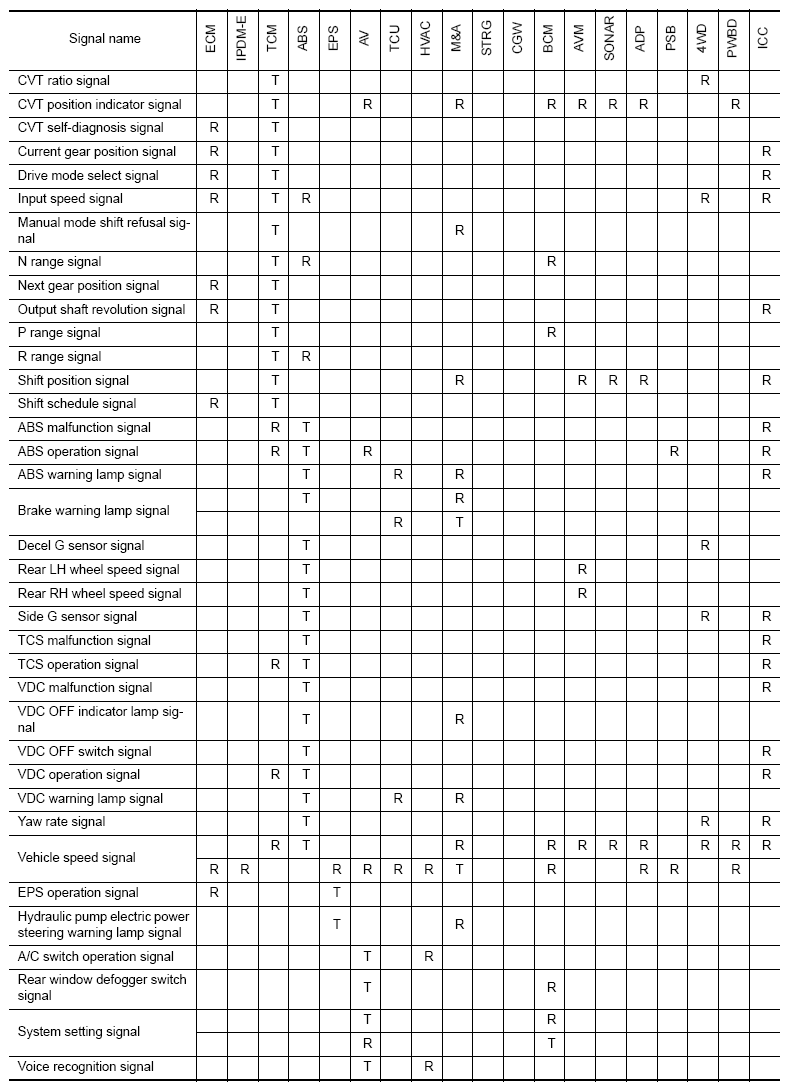

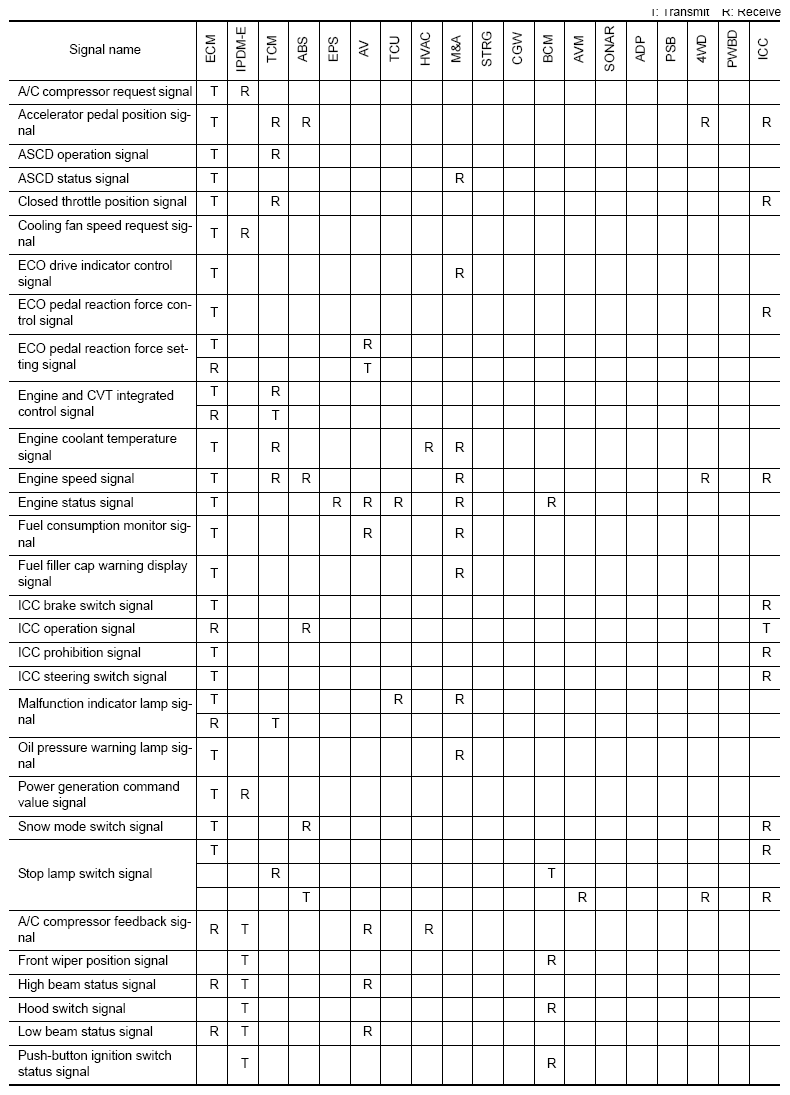

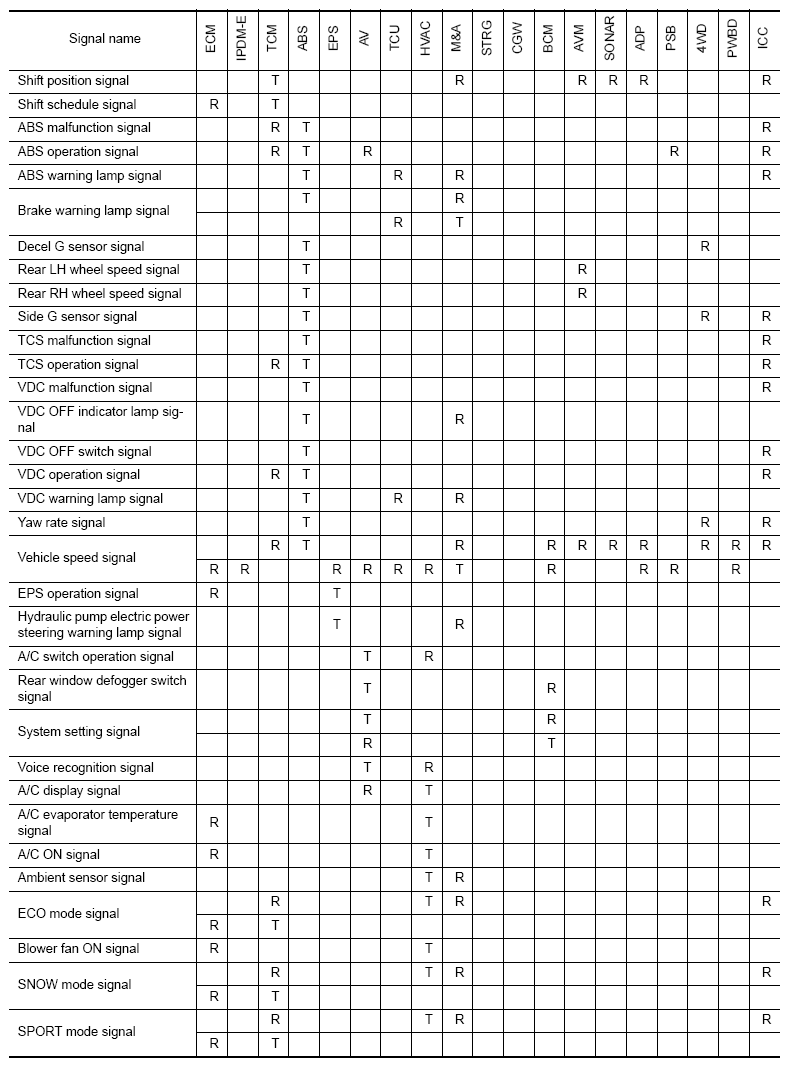

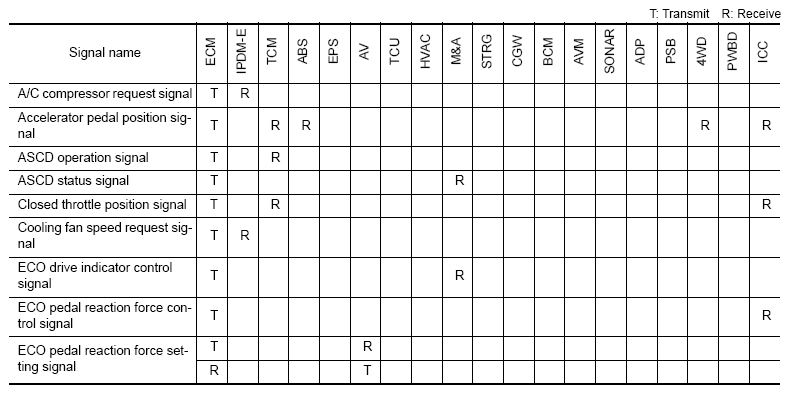

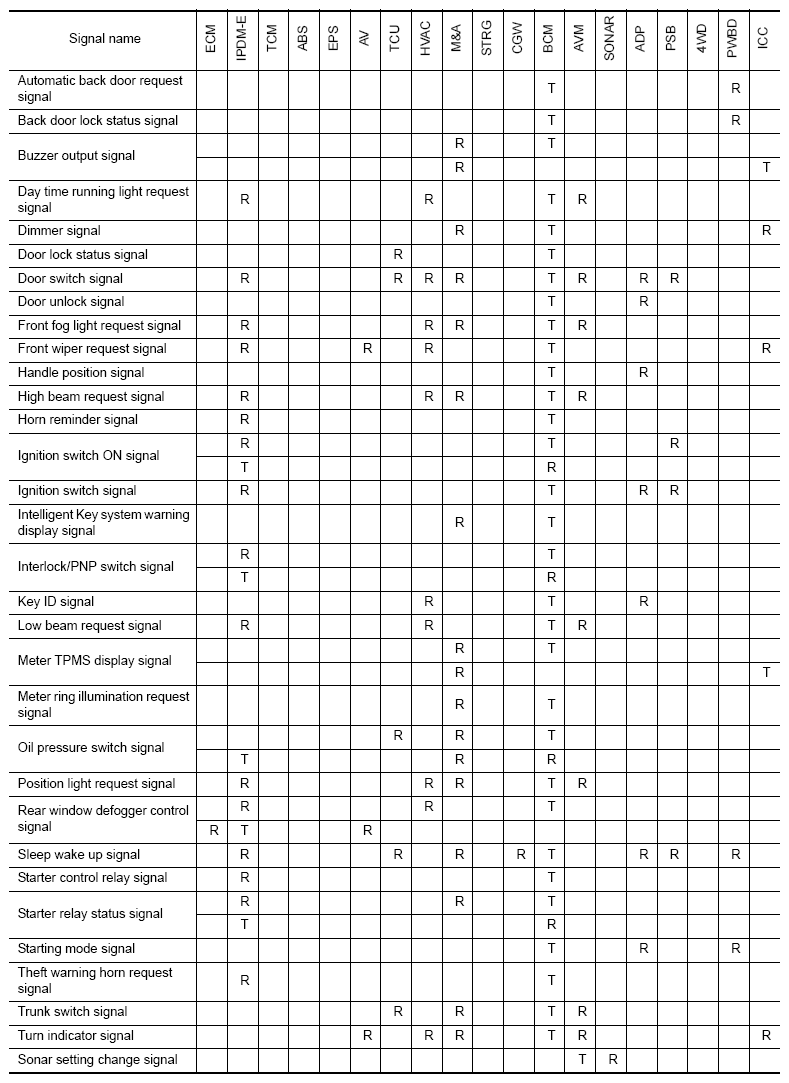

Fig 1: CAN Communication Signal Chart (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

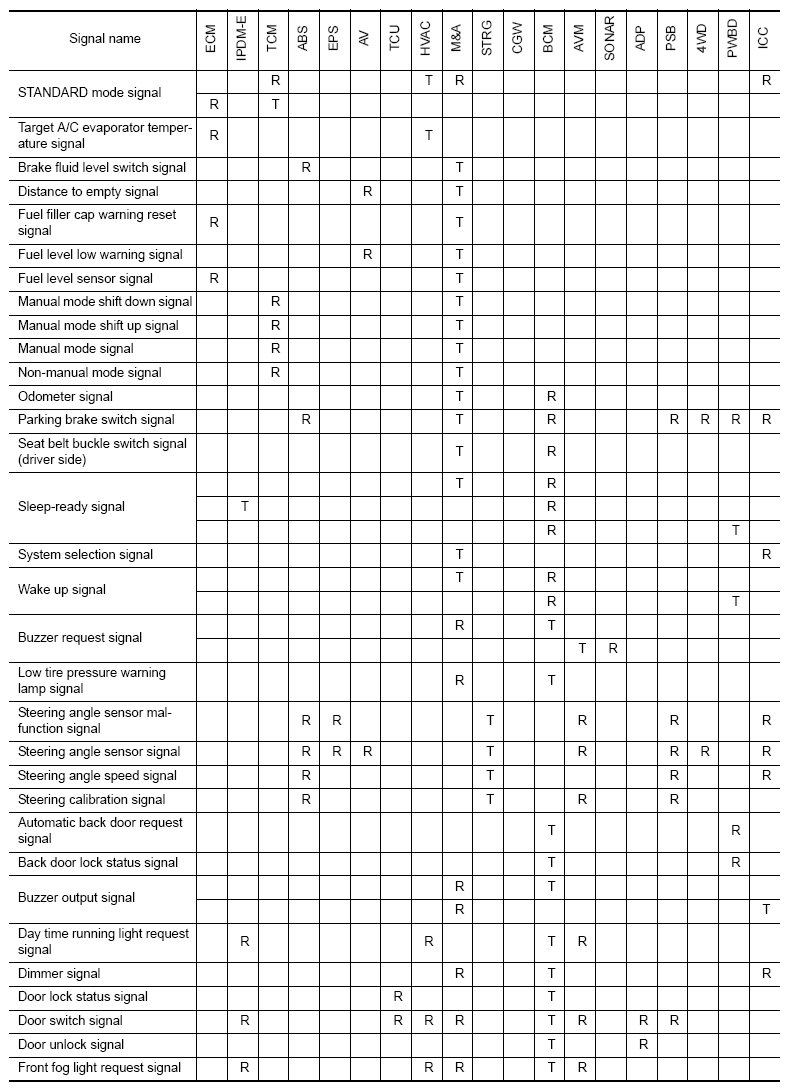

Fig 2: CAN Communication Signal Chart (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: CAN Communication Signal Chart (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: CAN Communication Signal Chart (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: CAN Communication Signal Chart (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
