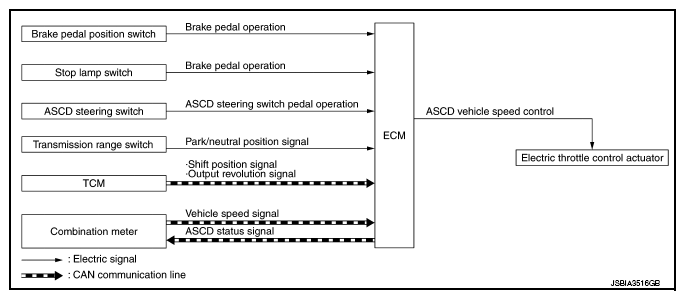

Home >> Infiniti >> 2014 >> QX60 Base, FWD >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System (Introduction) (Except Hybrid) >> System Description >> System >> Automatic Speed Control Device (ASCD) >> AUTOMATIC SPEED CONTROL DEVICE (ASCD): System Description >> System Diagram
