System Diagram

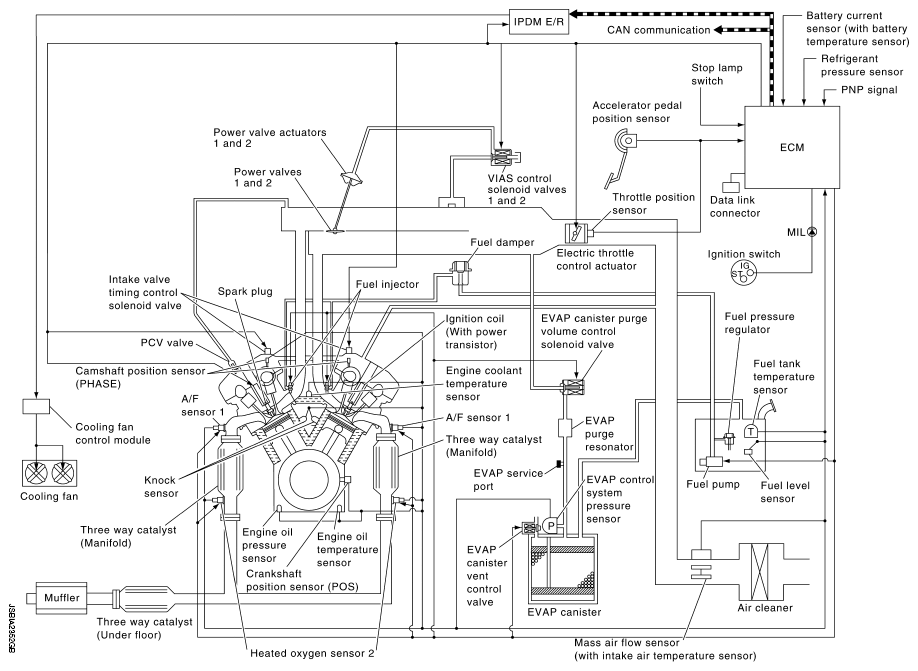

Fig 1: Engine Control System Diagram
G09404455Courtesy of NISSAN NORTH AMERICA, INC.

Battery current sensor (with battery temperature sensor) is not used for engine control system.
