Intake Manifold Runner Control Valve Motor

Intake manifold runner control valve motor (1) is connected to the rear end of the valve shaft.

The motor opens or closes the valve by the output signal of the ECM.

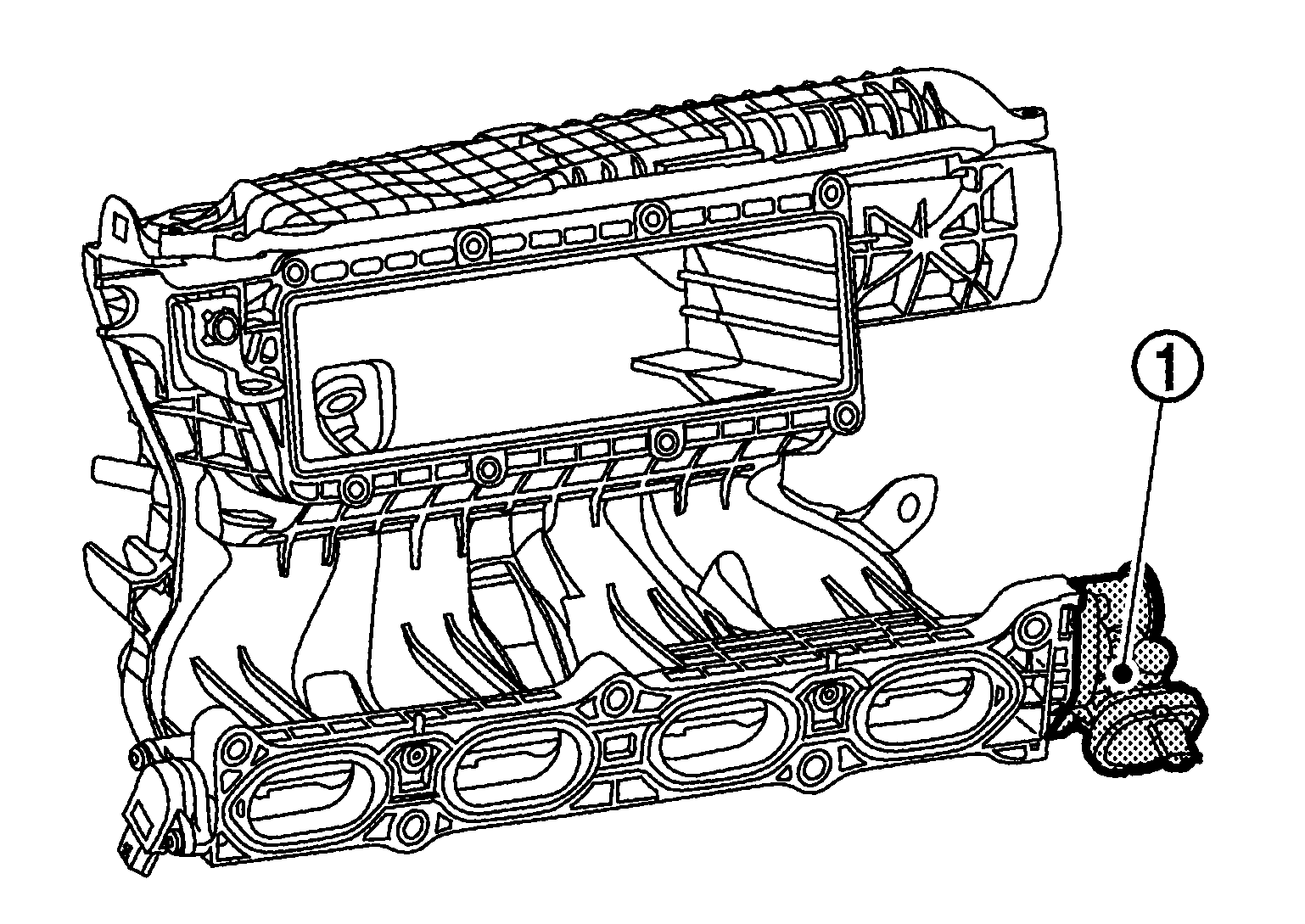

Fig 1: Identifying Intake Manifold Runner Control Valve Motor
G09512806Courtesy of NISSAN NORTH AMERICA, INC.
