Engine Control System Connector End Views

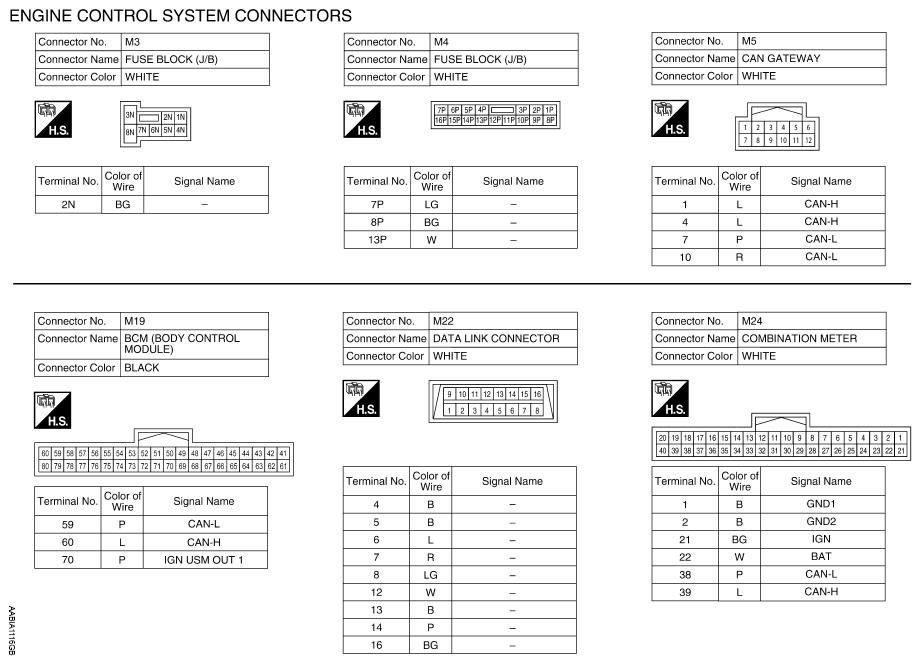

Fig 1: Engine Control System Connector End View (1 Of 24)
G09512926Courtesy of NISSAN NORTH AMERICA, INC.

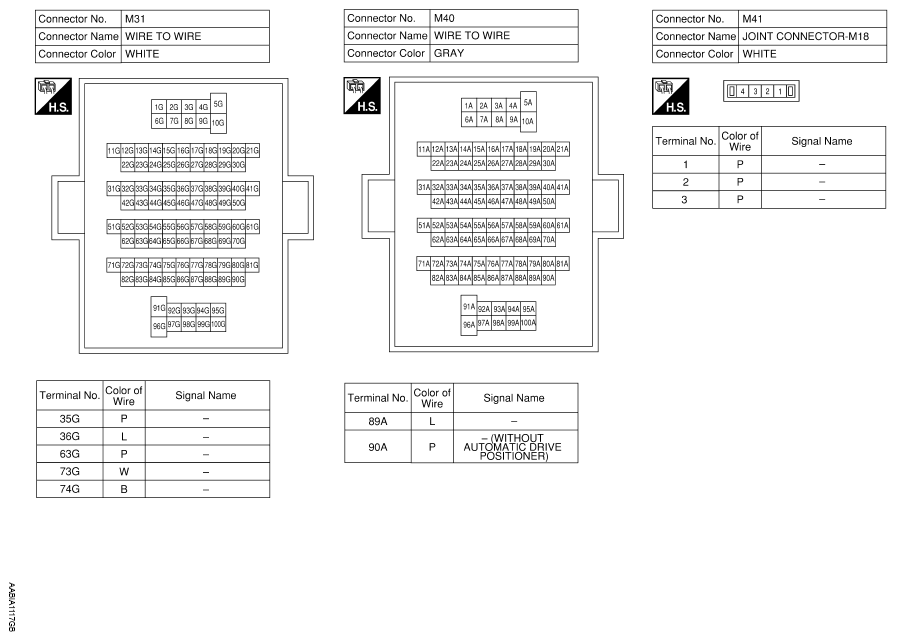

Fig 2: Engine Control System Connector End View (2 Of 24)
G09512927Courtesy of NISSAN NORTH AMERICA, INC.

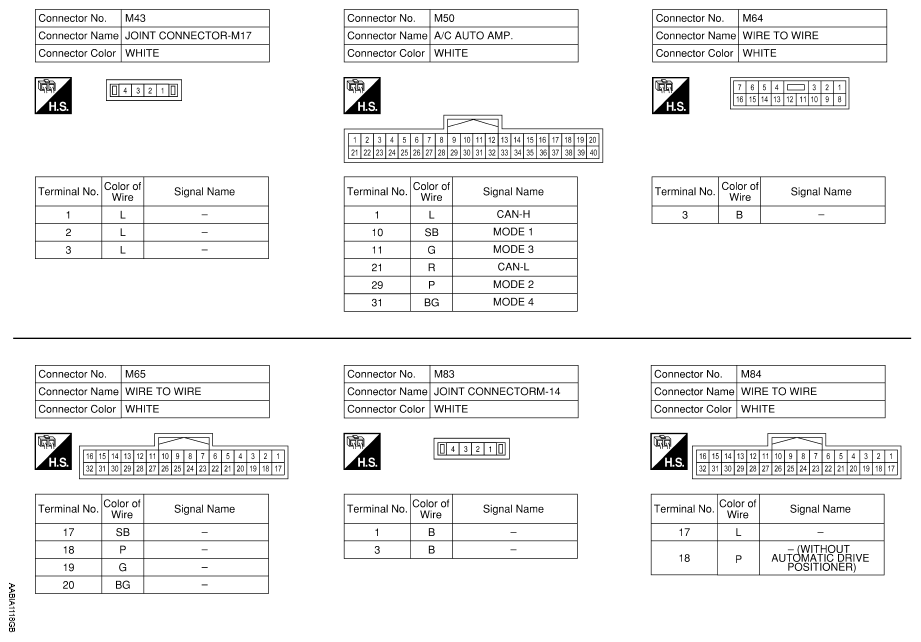

Fig 3: Engine Control System Connector End View (3 Of 24)
G09512928Courtesy of NISSAN NORTH AMERICA, INC.

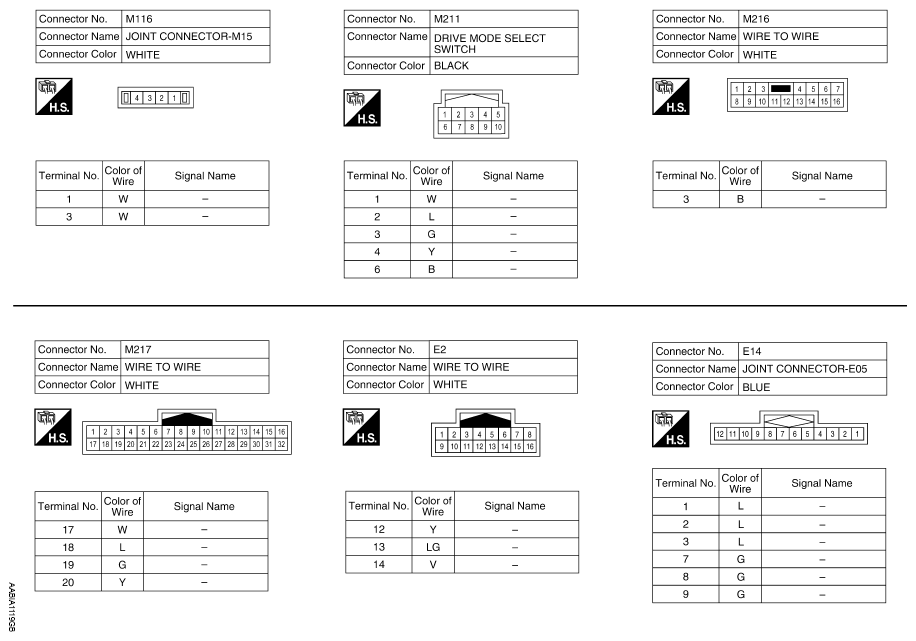

Fig 4: Engine Control System Connector End View (4 Of 24)
G09512929Courtesy of NISSAN NORTH AMERICA, INC.

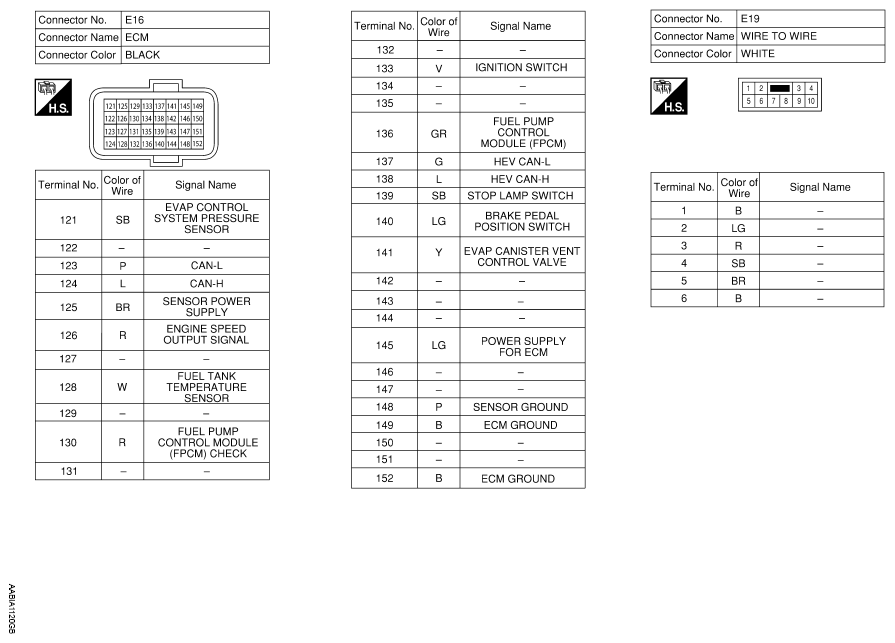

Fig 5: Engine Control System Connector End View (5 Of 24)
G09512930Courtesy of NISSAN NORTH AMERICA, INC.

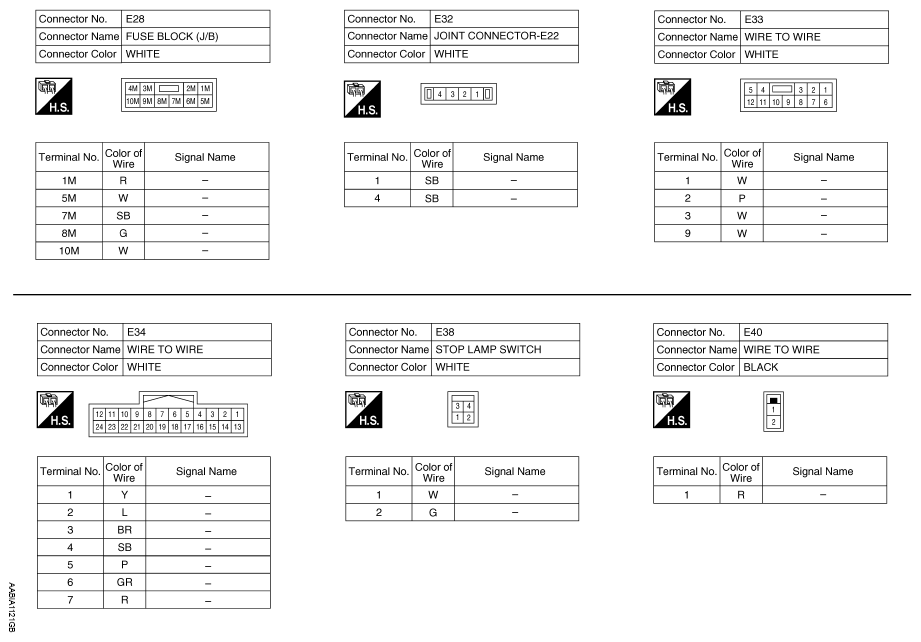

Fig 6: Engine Control System Connector End View (6 Of 24)
G09512931Courtesy of NISSAN NORTH AMERICA, INC.

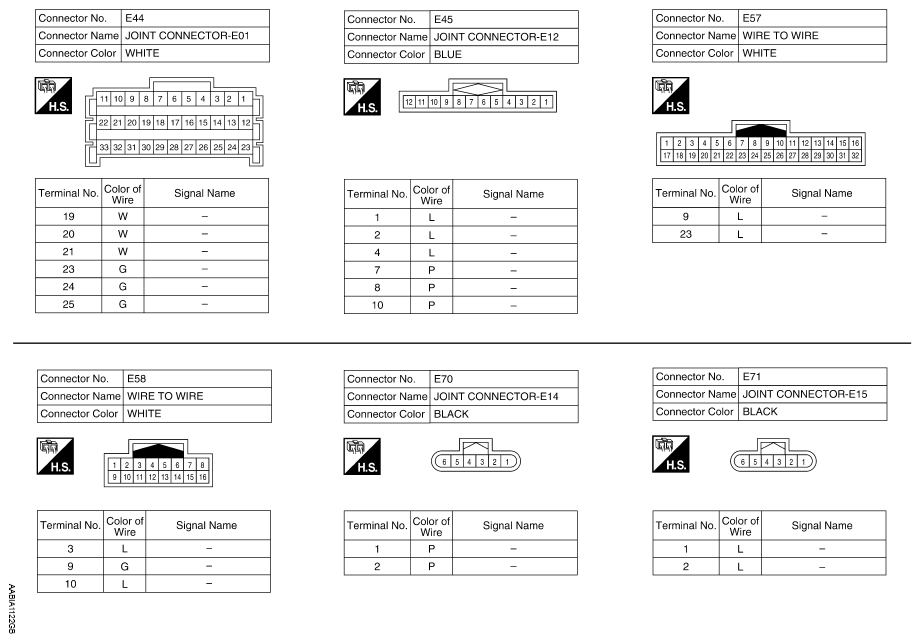

Fig 7: Engine Control System Connector End View (7 Of 24)
G09512932Courtesy of NISSAN NORTH AMERICA, INC.

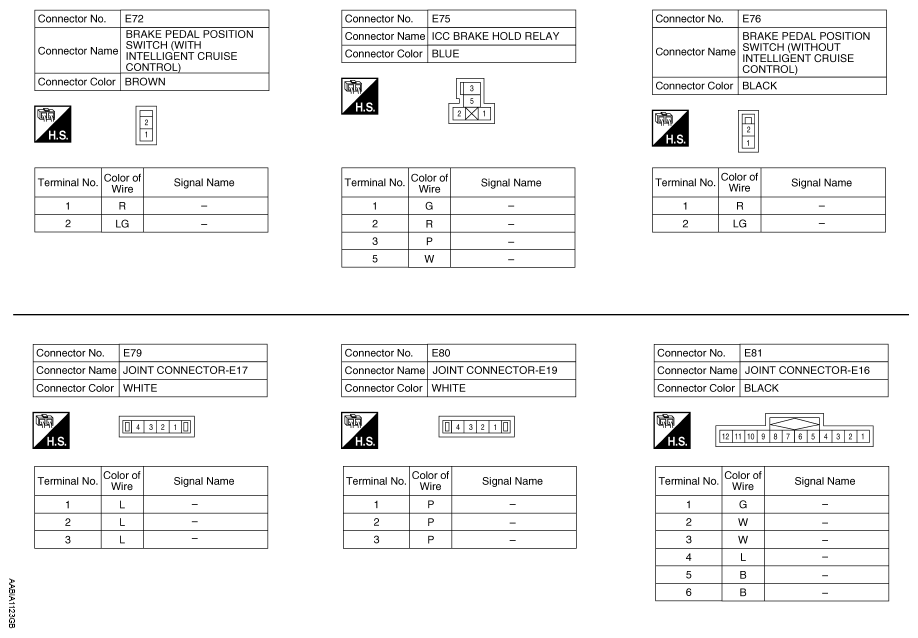

Fig 8: Engine Control System Connector End View (8 Of 24)
G09512933Courtesy of NISSAN NORTH AMERICA, INC.

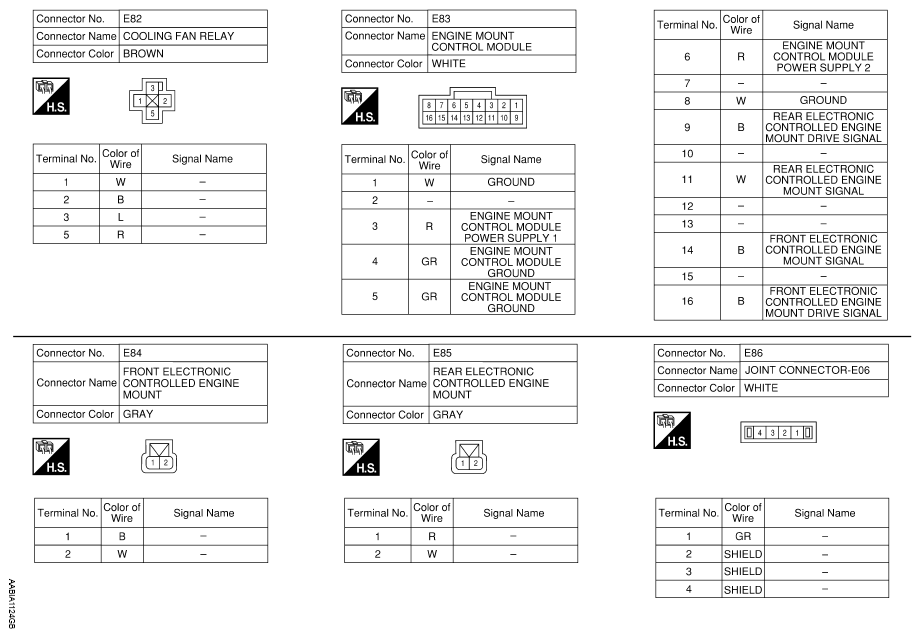

Fig 9: Engine Control System Connector End View (9 Of 24)
G09512934Courtesy of NISSAN NORTH AMERICA, INC.

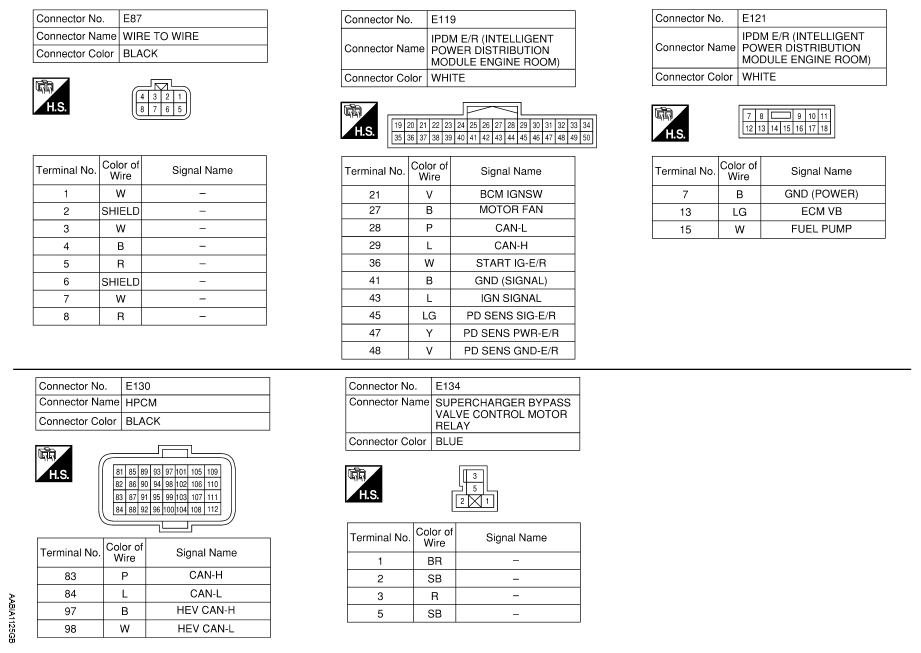

Fig 10: Engine Control System Connector End View (10 Of 24)
G09512935Courtesy of NISSAN NORTH AMERICA, INC.

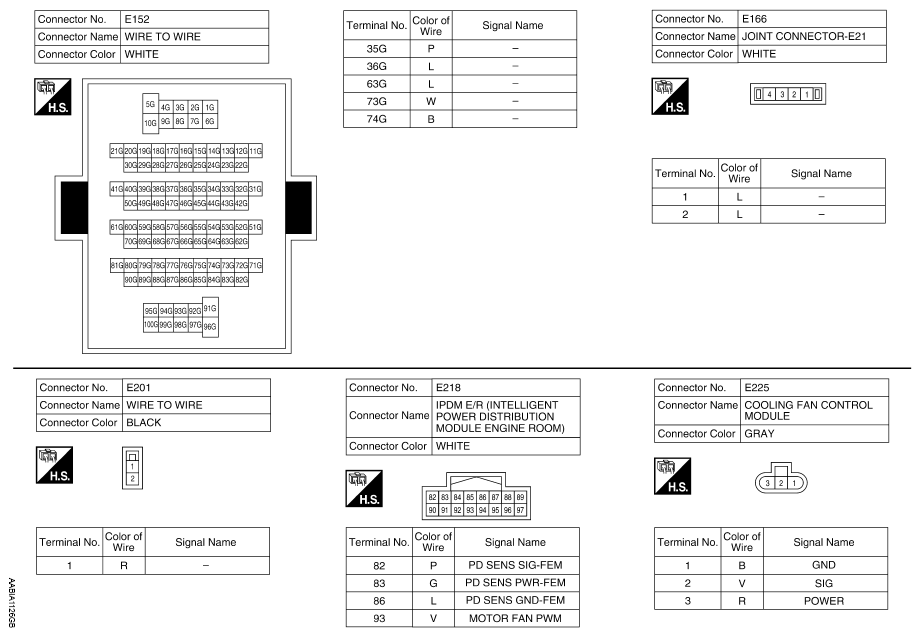

Fig 11: Engine Control System Connector End View (11 Of 24)
G09512936Courtesy of NISSAN NORTH AMERICA, INC.
Fig 12: Engine Control System Connector End View (12 Of 24)
G09512937Courtesy of NISSAN NORTH AMERICA, INC.

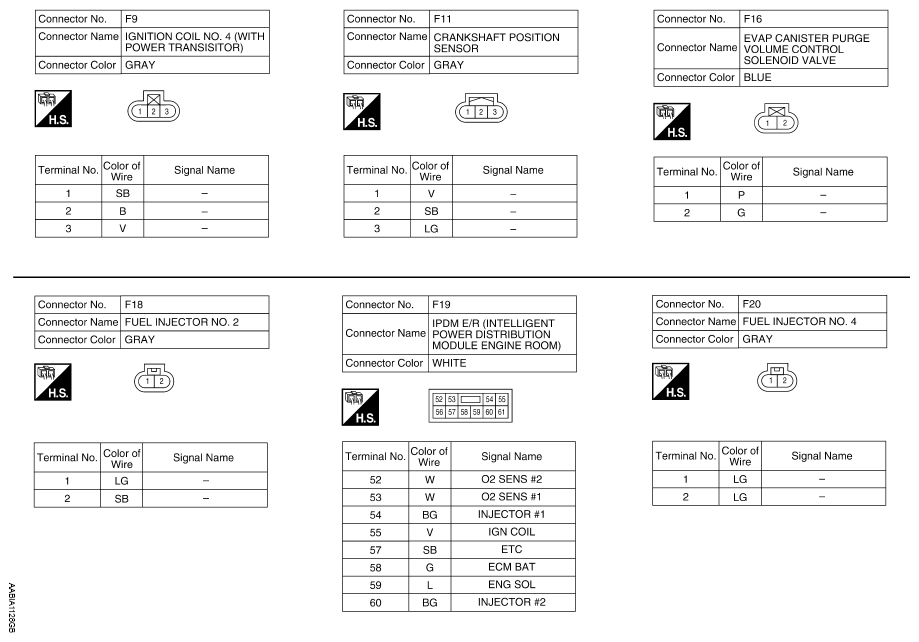

Fig 13: Engine Control System Connector End View (13 Of 24)
G09512938Courtesy of NISSAN NORTH AMERICA, INC.
Fig 14: Engine Control System Connector End View (14 Of 24)
G09512939Courtesy of NISSAN NORTH AMERICA, INC.

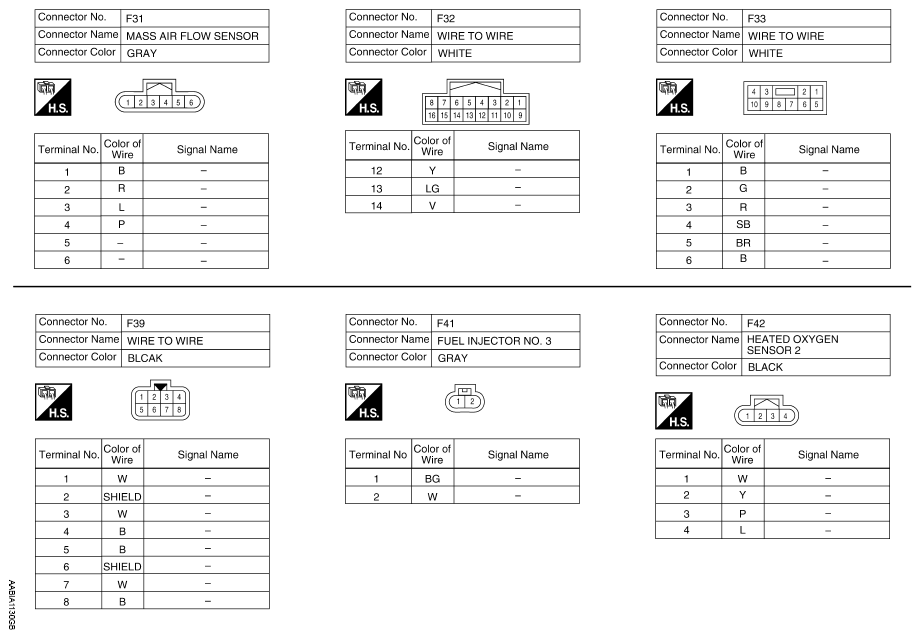

Fig 15: Engine Control System Connector End View (15 Of 24)
G09512940Courtesy of NISSAN NORTH AMERICA, INC.

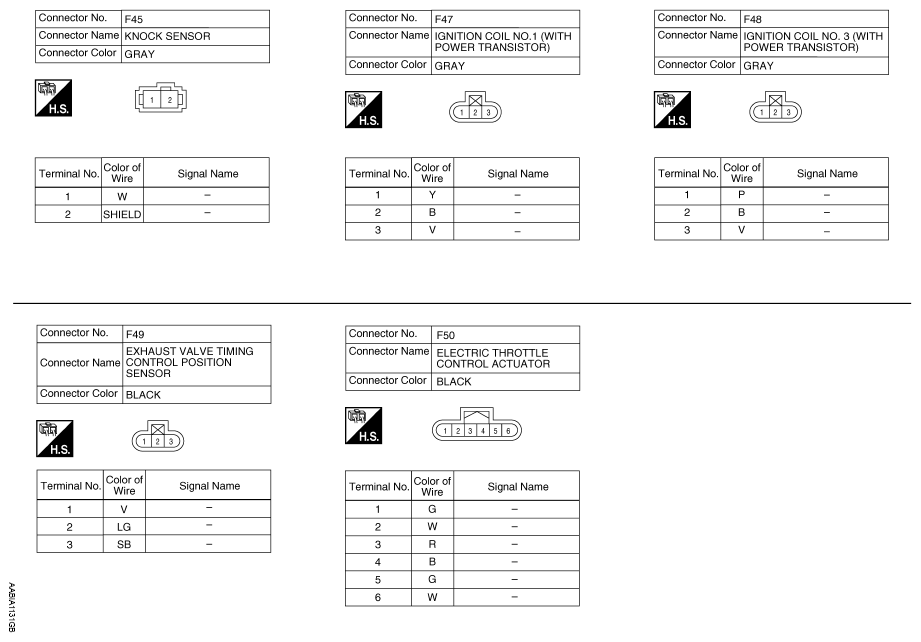

Fig 16: Engine Control System Connector End View (16 Of 24)
G09512941Courtesy of NISSAN NORTH AMERICA, INC.

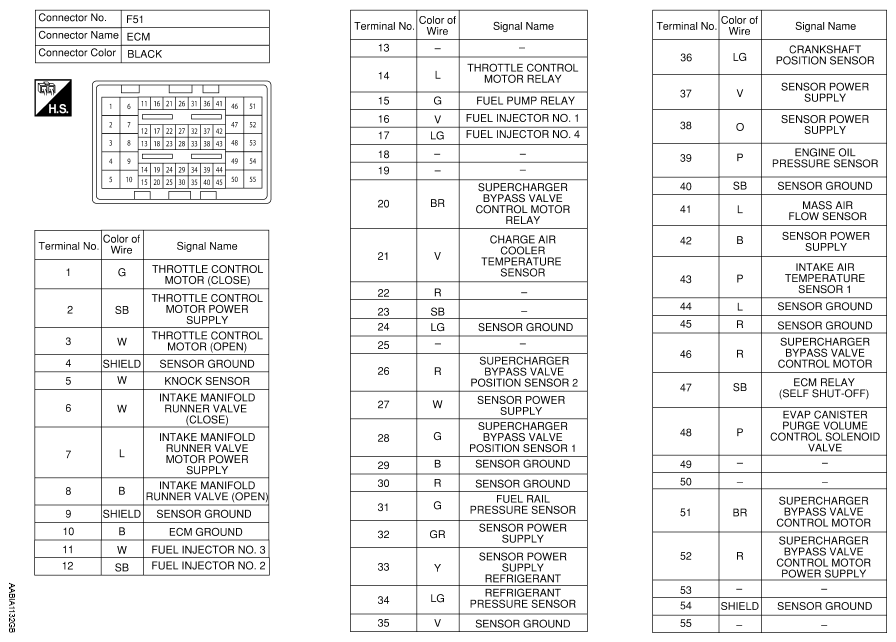

Fig 17: Engine Control System Connector End View (17 Of 24)
G09512942Courtesy of NISSAN NORTH AMERICA, INC.

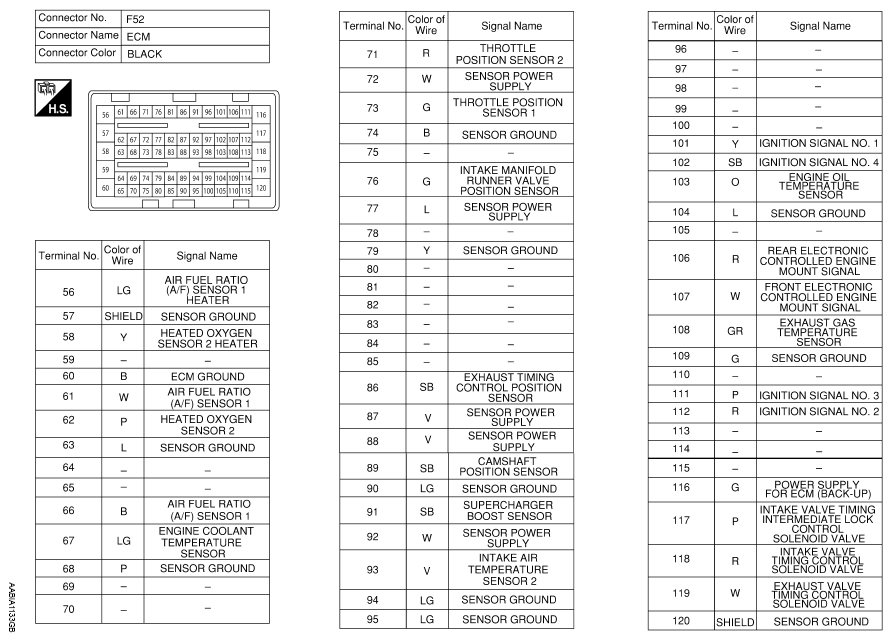

Fig 18: Engine Control System Connector End View (18 Of 24)
G09512943Courtesy of NISSAN NORTH AMERICA, INC.

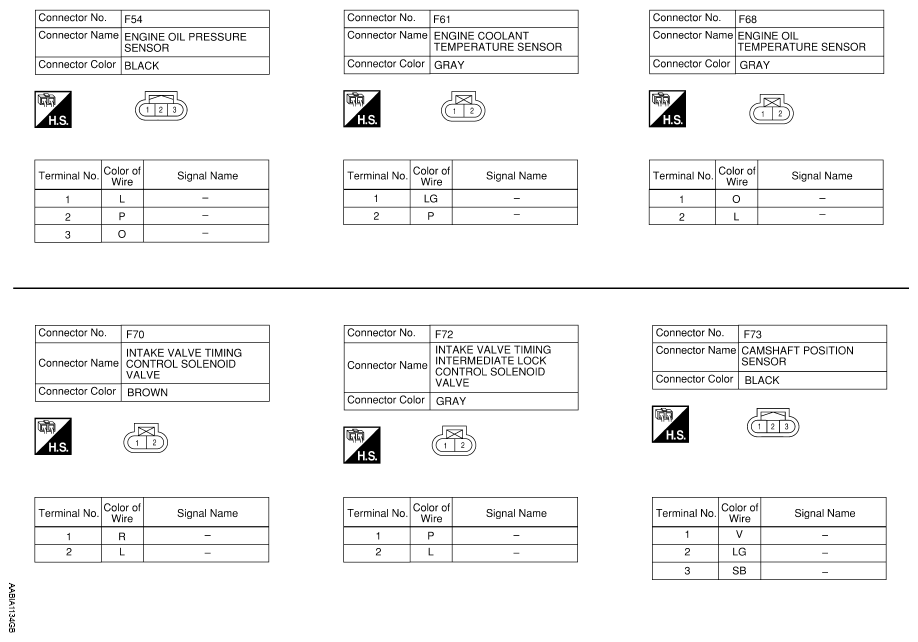

Fig 19: Engine Control System Connector End View (19 Of 24)
G09512944Courtesy of NISSAN NORTH AMERICA, INC.

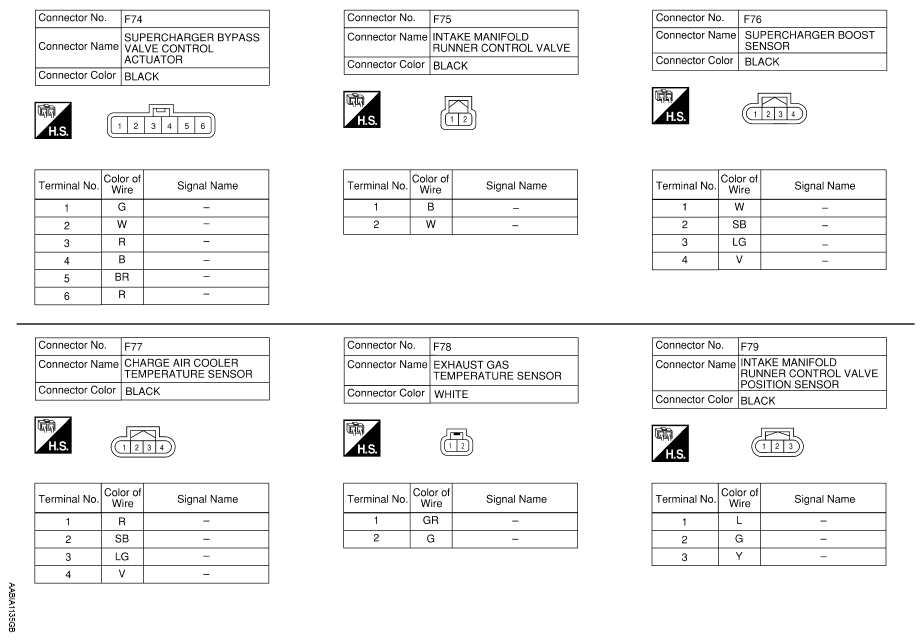

Fig 20: Engine Control System Connector End View (20 Of 24)
G09512945Courtesy of NISSAN NORTH AMERICA, INC.

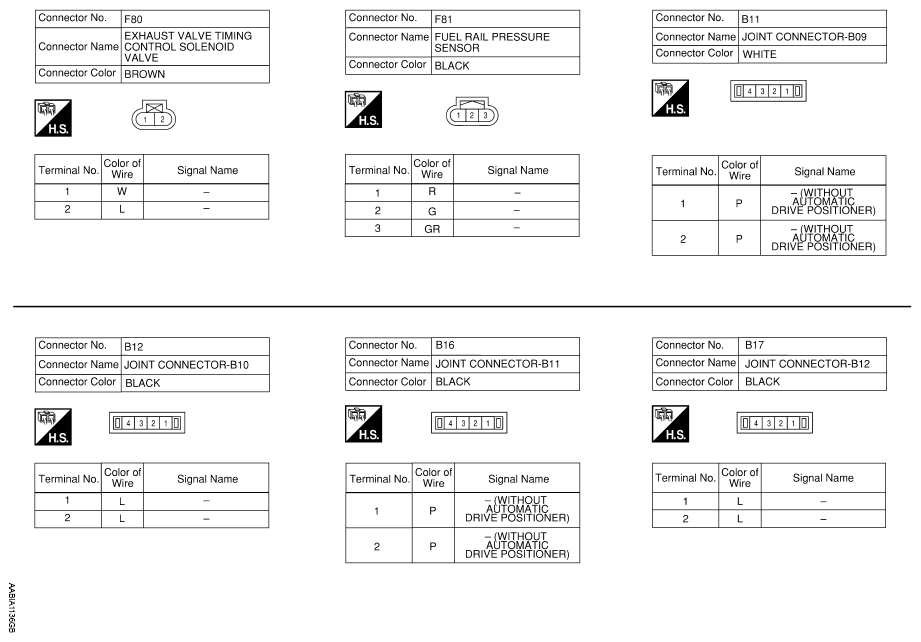

Fig 21: Engine Control System Connector End View (21 Of 24)
G09512946Courtesy of NISSAN NORTH AMERICA, INC.

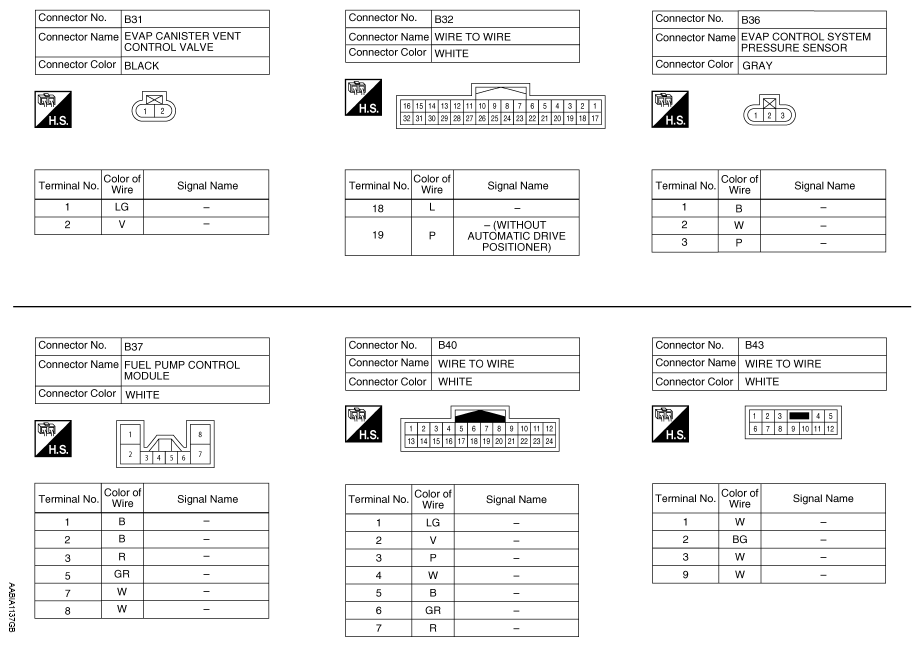

Fig 22: Engine Control System Connector End View (22 Of 24)
G09512947Courtesy of NISSAN NORTH AMERICA, INC.

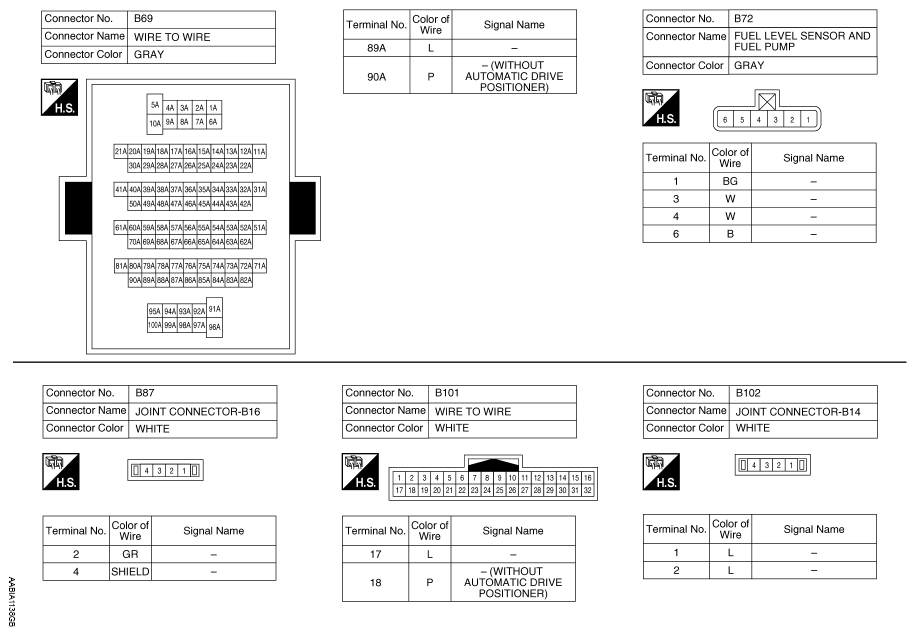

Fig 23: Engine Control System Connector End View (23 Of 24)
G09512948Courtesy of NISSAN NORTH AMERICA, INC.

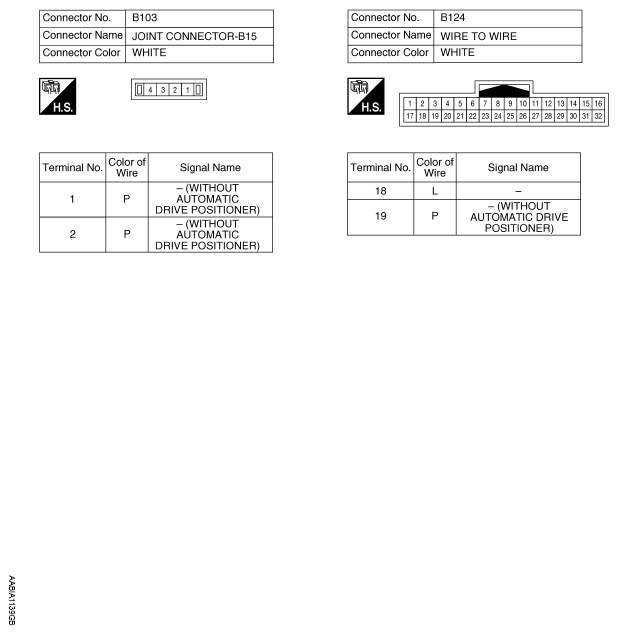

Fig 24: Engine Control System Connector End View (24 Of 24)
G09512949Courtesy of NISSAN NORTH AMERICA, INC.
