CAN COMMUNICATION SYSTEM: CAN Communication Signal Chart

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

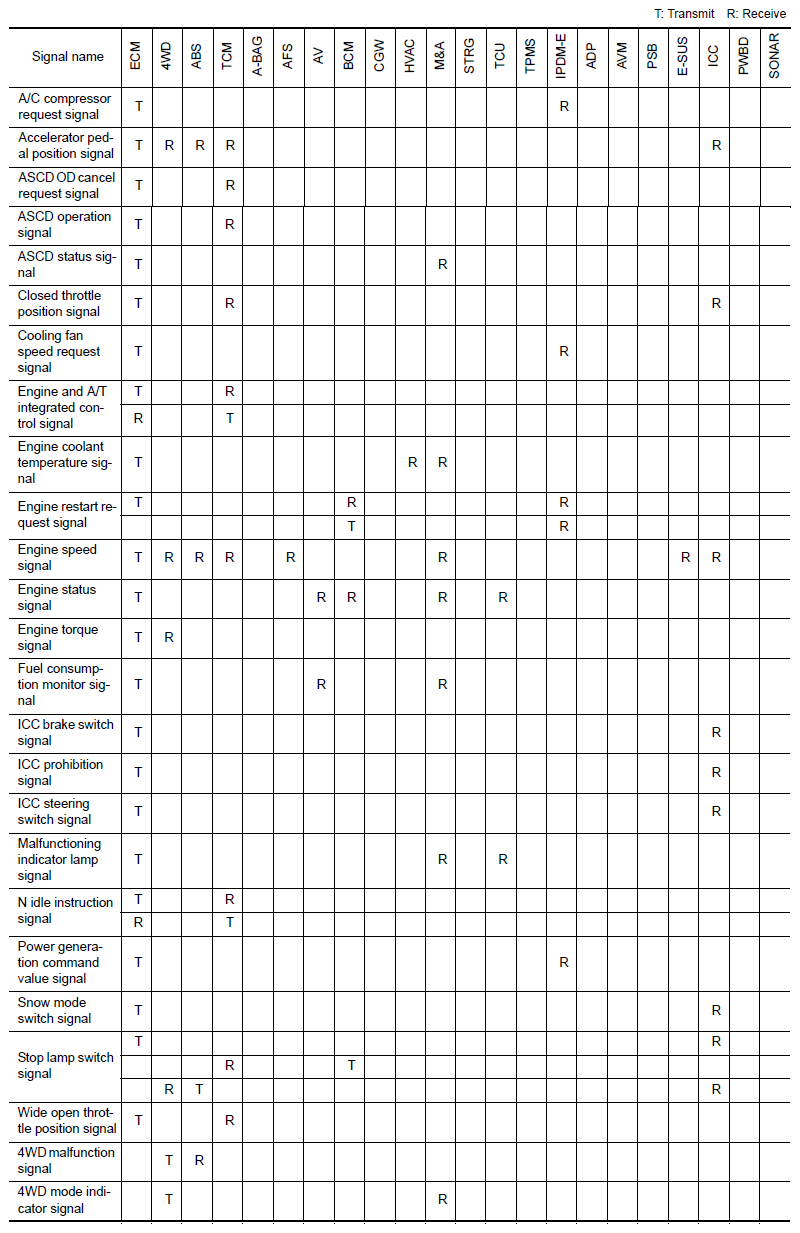

Fig 1: CAN Communication Signal Chart (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

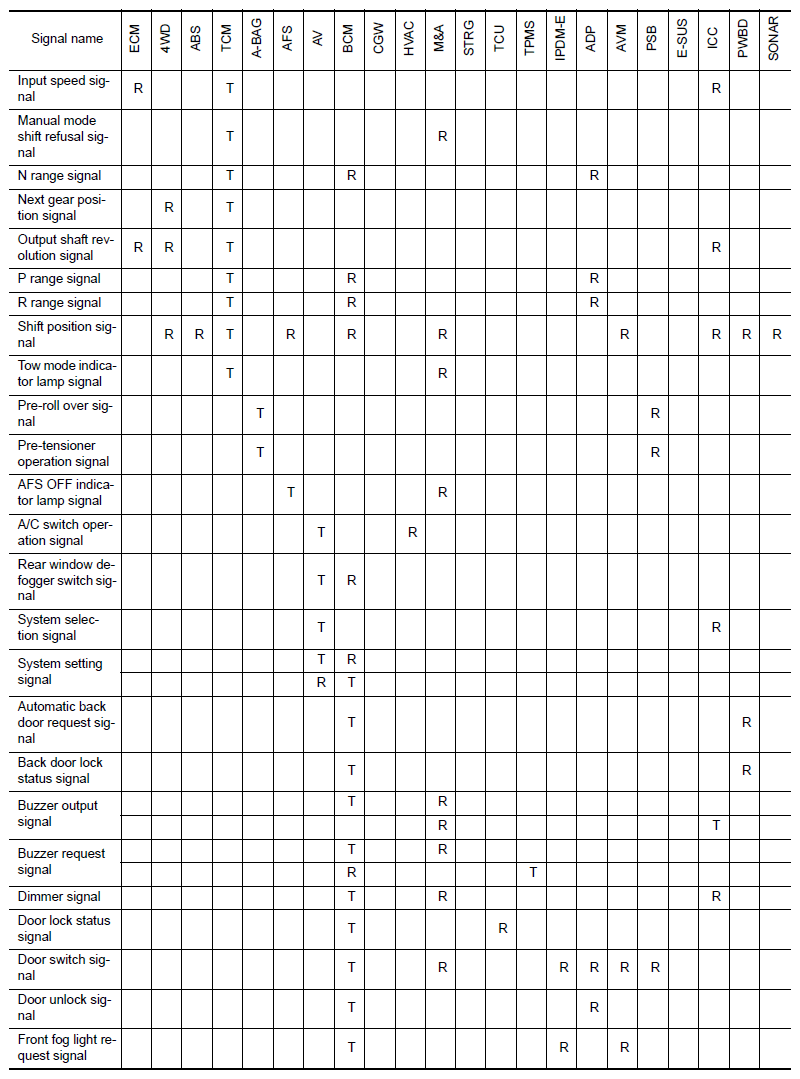

Fig 2: CAN Communication Signal Chart (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

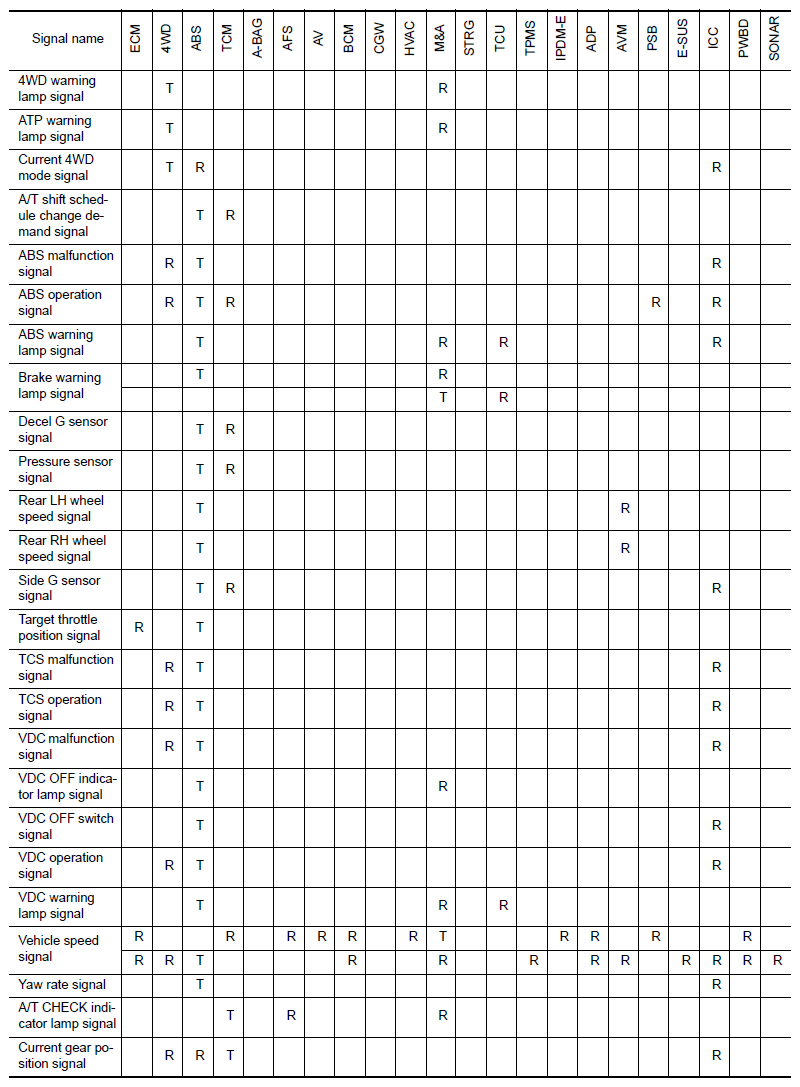

Fig 3: CAN Communication Signal Chart (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

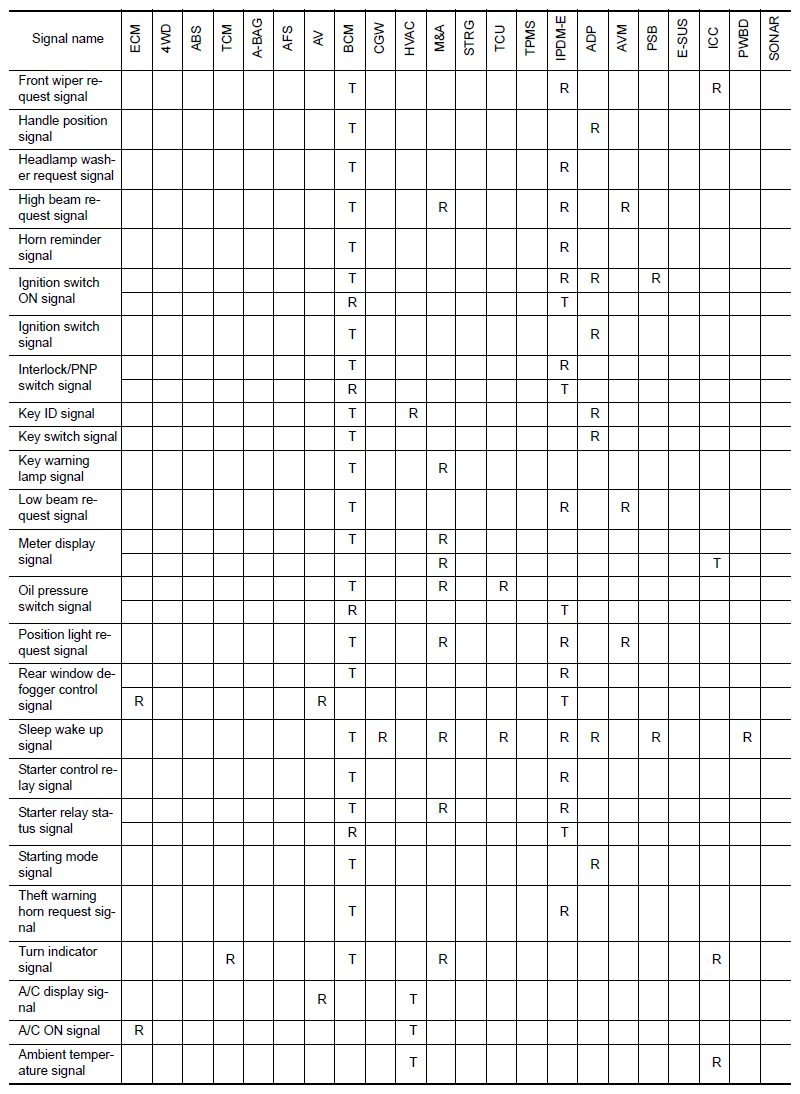

Fig 4: CAN Communication Signal Chart (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

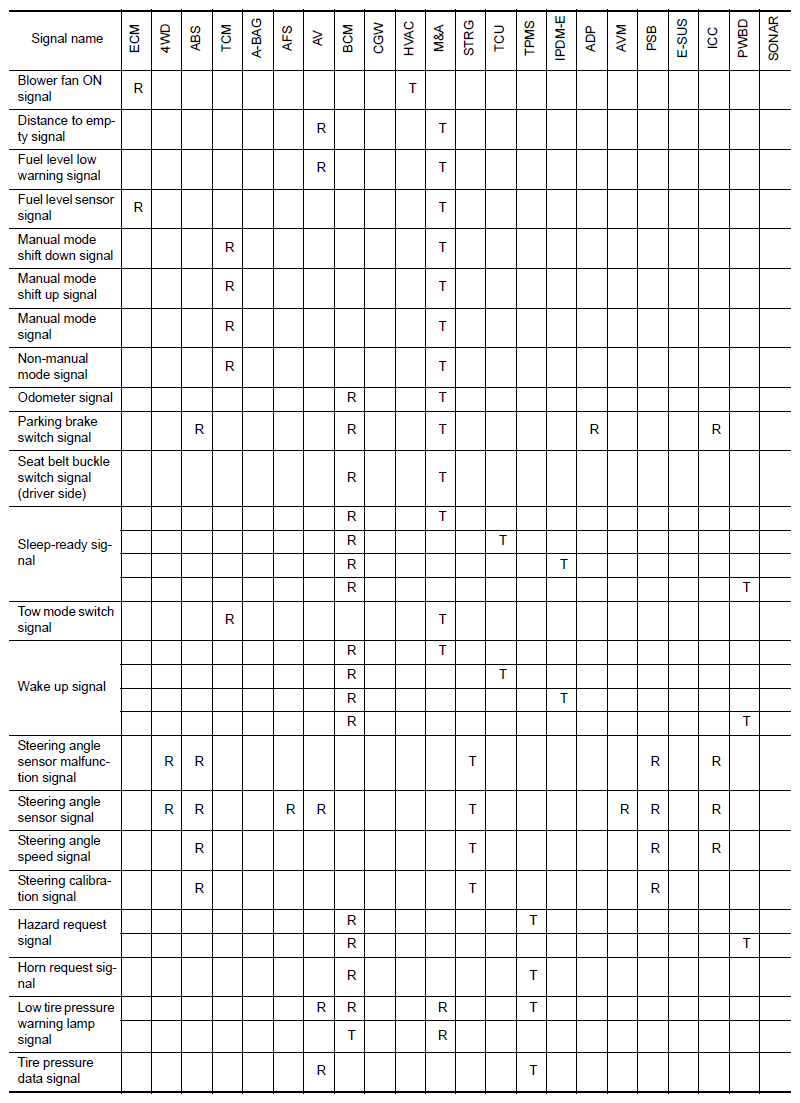

Fig 5: CAN Communication Signal Chart (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

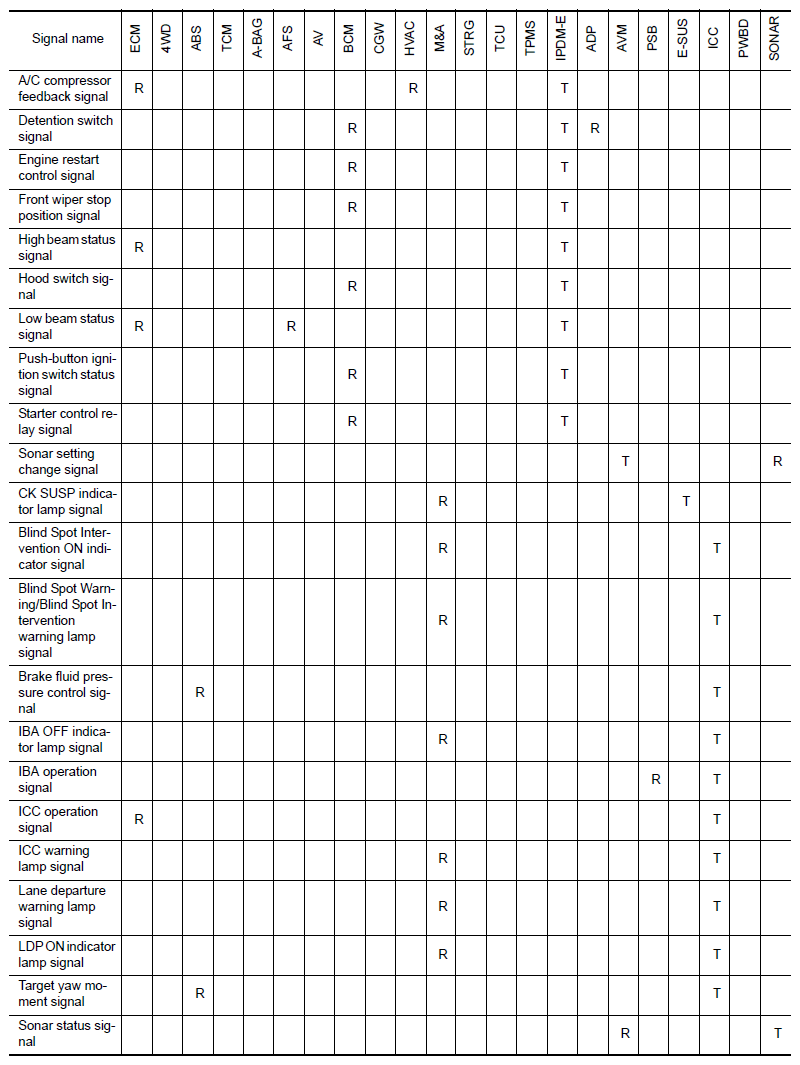

Fig 6: CAN Communication Signal Chart (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
