Switch Name and Function

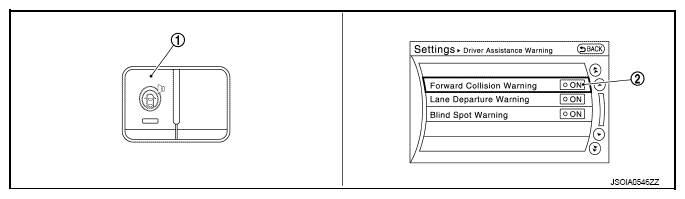

Fig 1: Driver Assistance Warning Settings Screen Display
G08259847Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
1 Warning systems switch Turns FCW system ON/OFF (When the setting of FCW system on the navigation system setting screen is ON)
2 FCW system setting screen (Navigation system settings screen) The setting of FCW system can be switched between ON and OFF
