LANE DEPARTURE PREVENTION (LDP) SYSTEM: System Description: Example

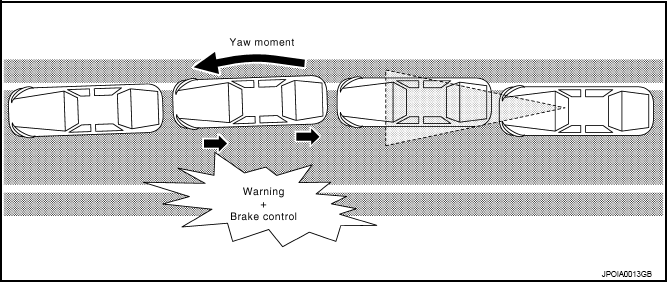

Fig 1: Example Of Lane Departure Prevention System Function

Courtesy of NISSAN NORTH AMERICA, INC.

When the vehicle approaches the right lane marker, the driver is alerted by the buzzer and the blinking of lane departure warning lamp (yellow). Simultaneously, the left brake is controlled independently to generate force toward the direction to recover the vehicle from the lane departure.
