LANE DEPARTURE WARNING (LDW) SYSTEM: System Description: Example

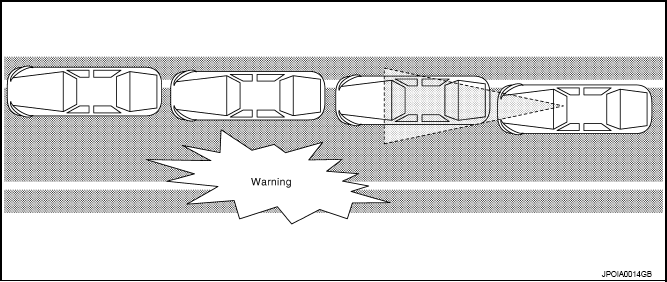

Fig 1: Example Of Lane Departure Warning System Function

Courtesy of NISSAN NORTH AMERICA, INC.

When the vehicle approaches the right lane marker, the driver is alerted by the buzzer and the blinking of lane departure warning lamp (yellow).
