Component Inspection (Fuel Injector Relay)

  1. CHECK FUEL INJECTOR RELAY
    1. Turn ignition switch OFF.
    2. Remove fuel injector relay.
    3. Check the continuity between fuel injector relay terminals under the following conditions.
      Fuel injector relay Condition Continuity
      Terminal
      3 and 5 12V direct current supply between terminals 1 and 2 Existed
      No current supply Not existed

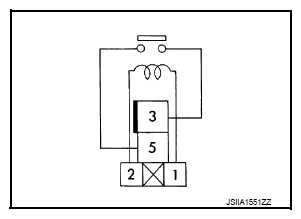

      Fig 1: Checking Continuity Between Fuel Injector Relay Terminals
      G09178138Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace fuel injector relay.
