Front Controller Operation

A/C Display

Rear air conditioning system state is indicated on the front display.
When REAR switch is pressed while air conditioning system is in the ON position, the front display changes to state indication display (rear control mode) of rear air conditioning system.

Display screen

Fig 1: Rear A/C System Screen Display (Front Controller Operation)

Courtesy of NISSAN NORTH AMERICA, INC.

Controller (Preset Switch)

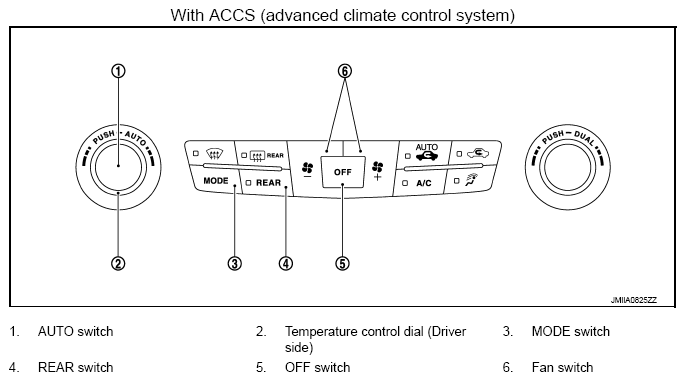

Fig 2: Identifying A/C Controller With ACCS (Preset Switch)

Courtesy of NISSAN NORTH AMERICA, INC.

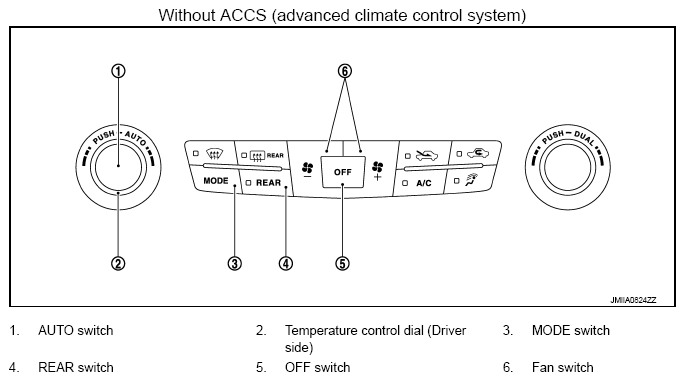

Fig 3: Identifying A/C Controller Without ACCS (Preset Switch)

Courtesy of NISSAN NORTH AMERICA, INC.

SWITCH OPERATION

AUTO switch	Turns the switch indicator lamp and "AUTO" indicator on the front display ON, and then rear air conditioning system becomes the following state. Air outlet: Automatic control Blower fan: Automatic control Compressor: ON
Fan switch (UP/DOWN)	Blower fan speed is manually controlled with these switches. Seven speeds are available for manual control (as shown on the display screen) NOTE: When fan switch is pressed while air conditioning system is in automatic control ("AUTO" is indicated), automatic control is released ("AUTO" turns OFF).
MODE switch	Selects air outlet sequentially from VENT → B/L → FOOT → VENT each time. NOTE: When MODE switch is pressed while air conditioning system is in automatic control ("AUTO" is indicated), automatic control is released ("AUTO" turns OFF).
OFF switch	Turns rear air conditioning system OFF. (When rear control mode is ON) When rear air conditioning system turns OFF, air outlet become the automatic control.
REAR switch	Turns the switch indicator lamp and rear control mode on the front display ON, and then rear air conditioning system becomes the following state. Air outlet: Automatic control Blower fan: Automatic control Compressor: ON Rear control mode is released when switch is pressed again (rear air conditioning system operates continuously).
Temperature control dial (driver side)	Selects set temperature within a range between 18.0°C (60°F) - 32.0°C (90°F) at a rate of 0.5°C (1°F) each time the dial is rotated. Clockwise rotation: Set temperature increases. Counterclockwise rotation: Set temperature decreases.
