Exploded View

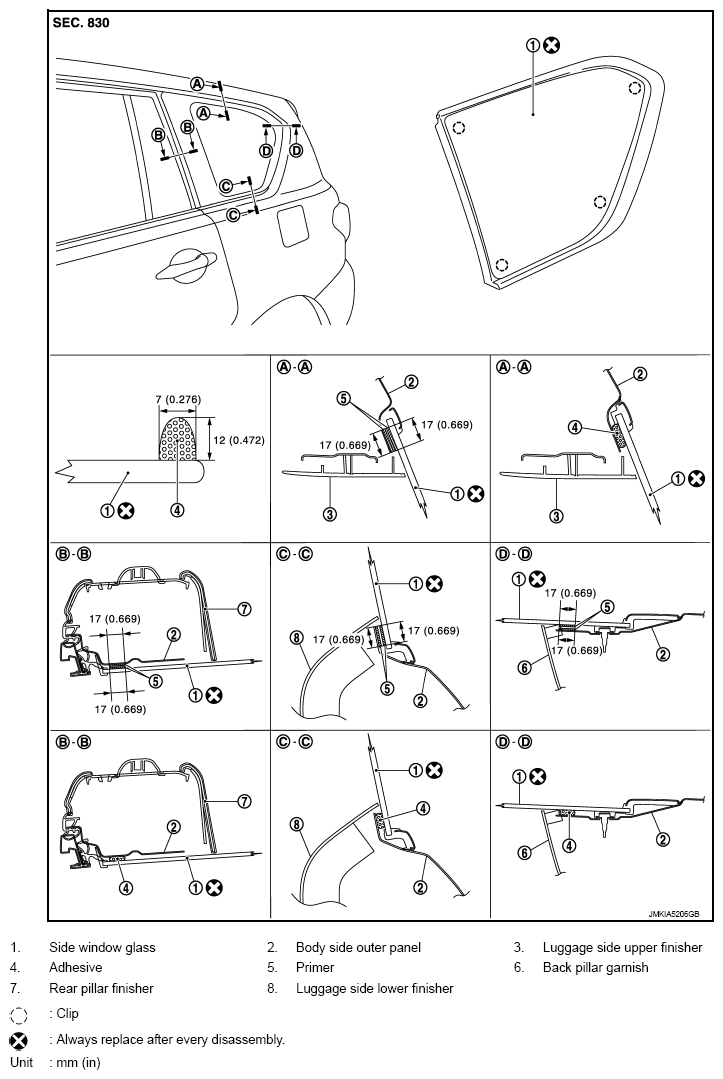

Fig 1: Identifying Exploded View Of Side Window Glass
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
