System - Basic Engine Control System

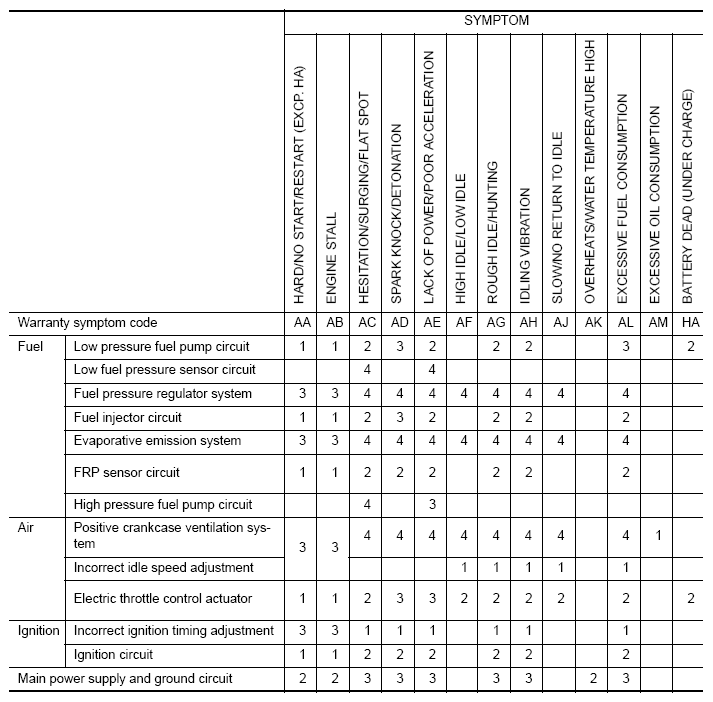

Fig 1: Engine Control System Symptoms Chart (Basic; 1 Of 2)
G09178147Courtesy of NISSAN NORTH AMERICA, INC.

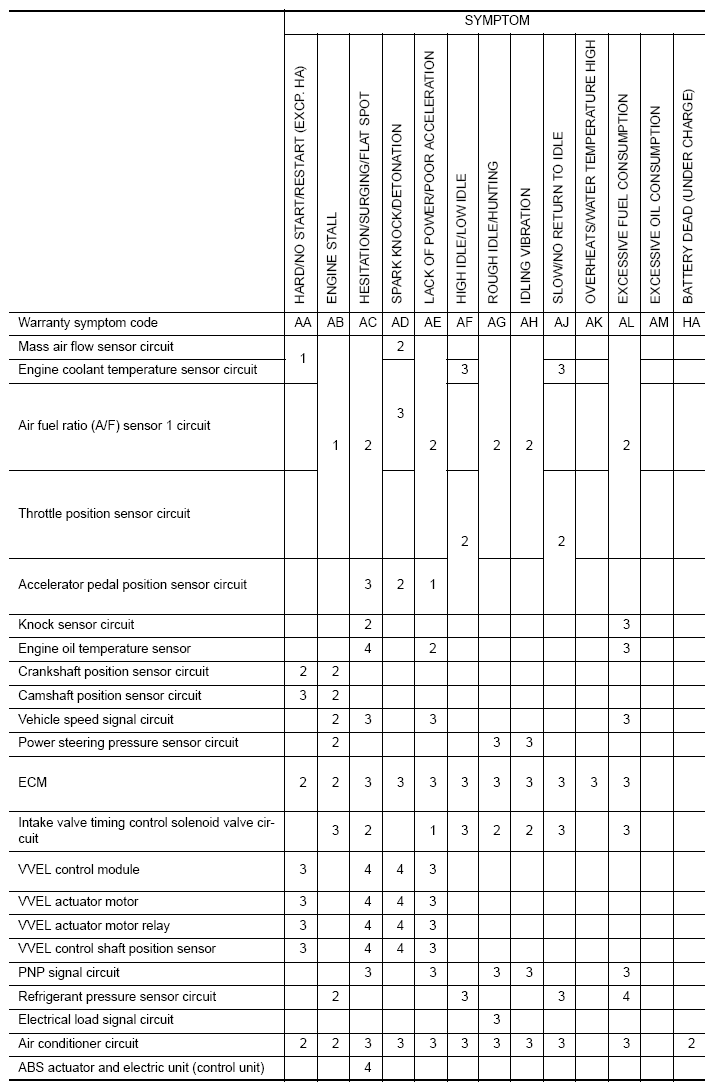

Fig 2: Engine Control System Symptoms Chart (Basic; 2 Of 2)
G09178148Courtesy of NISSAN NORTH AMERICA, INC.
