A/T Position: Adjustment

Shift selector lever in "P" position.

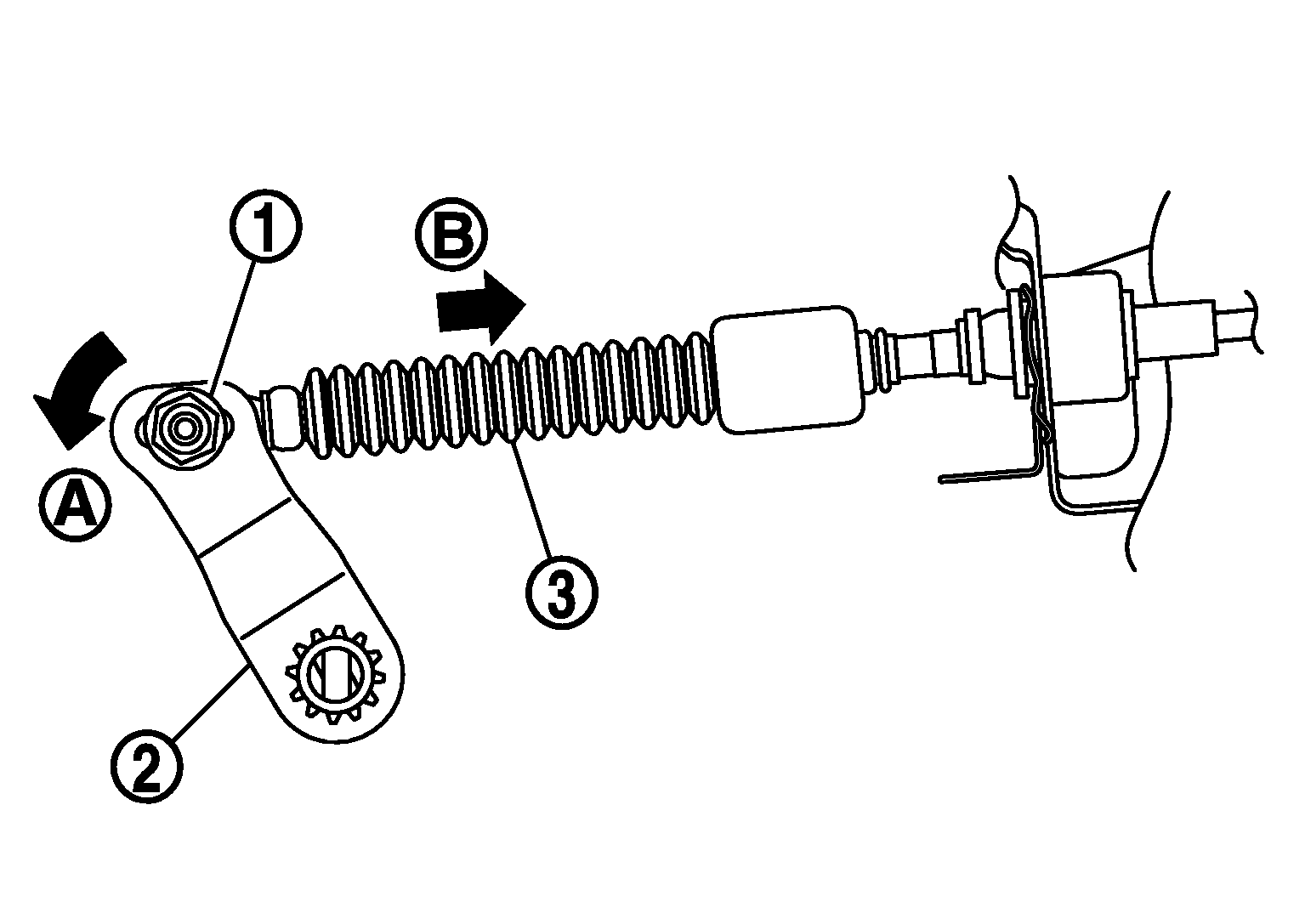

Fig 1: Adjusting Shift Selector Lever In P Position
Courtesy of NISSAN NORTH AMERICA, INC.
Loosen nut (1).
Turn the manual lever (2) all the way in the "P" range direction [←(A)].
Hold and push the control cable (3) in the vehicle front direction [←(B)], and tighten the nut by hand with cable set in free condition.
CAUTION: Be careful not put any load to manual lever.

NOTE: Press control cable with a force of 9.8 N (approximately 1 kg, 2.2 lb).
Tighten nut to specified torque. Refer to "EXPLODED VIEW ".
