Worksheet Sample

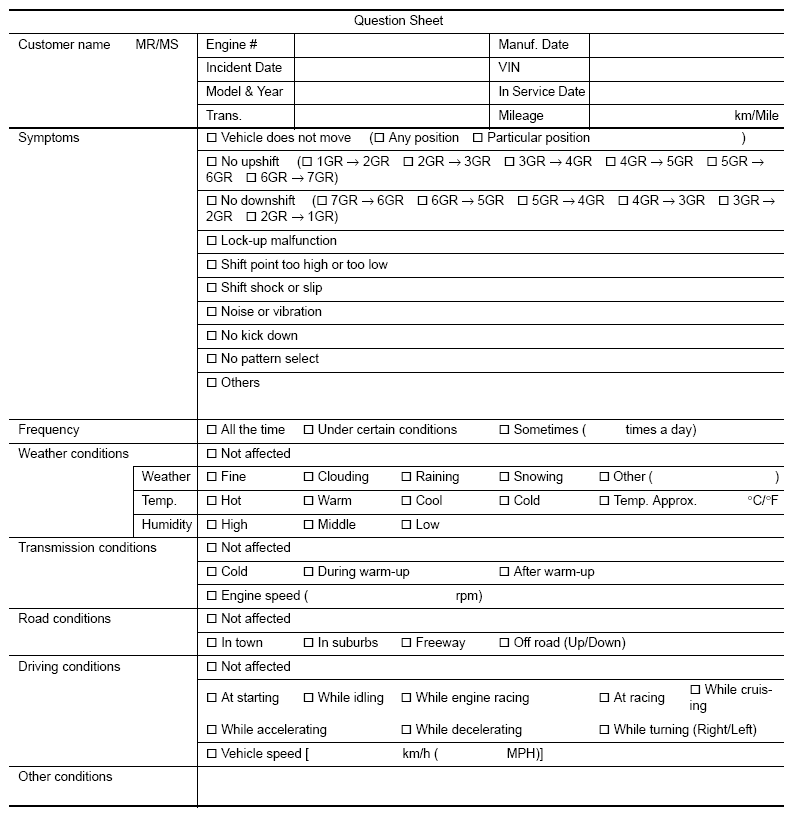

Fig 1: Diagnostic Work Sheet Sample

G09178225

Courtesy of NISSAN NORTH AMERICA, INC.
