2WD Models

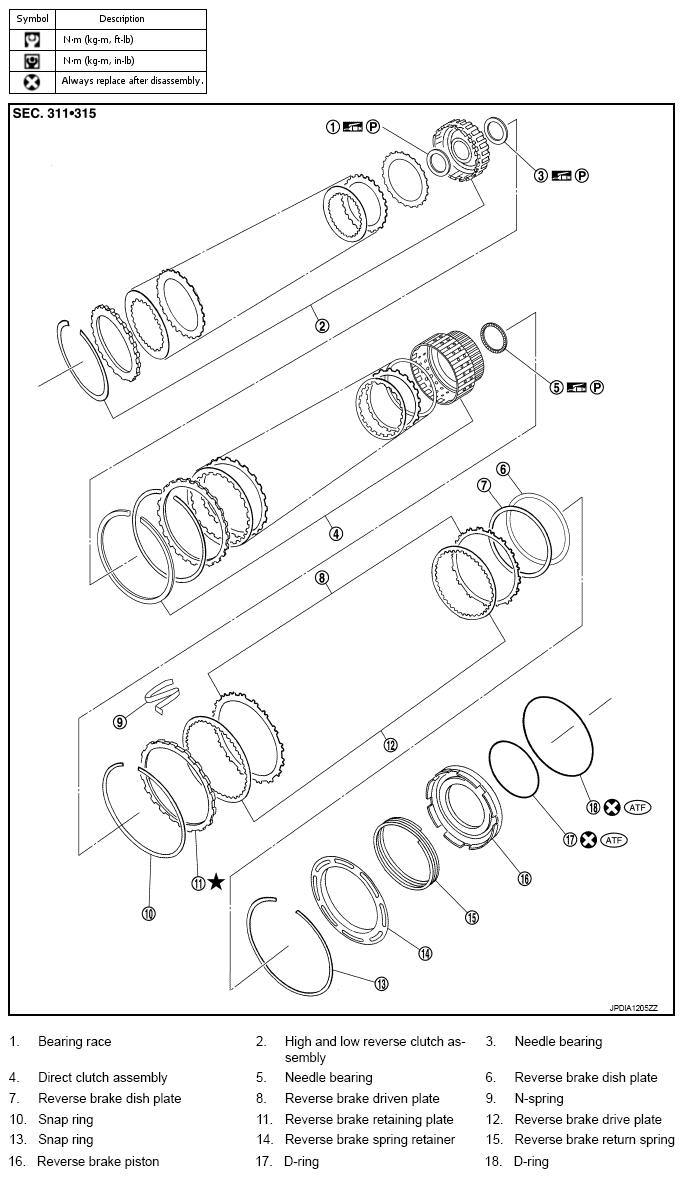

Fig 1: Exploded View Of Transmission Assembly (2WD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

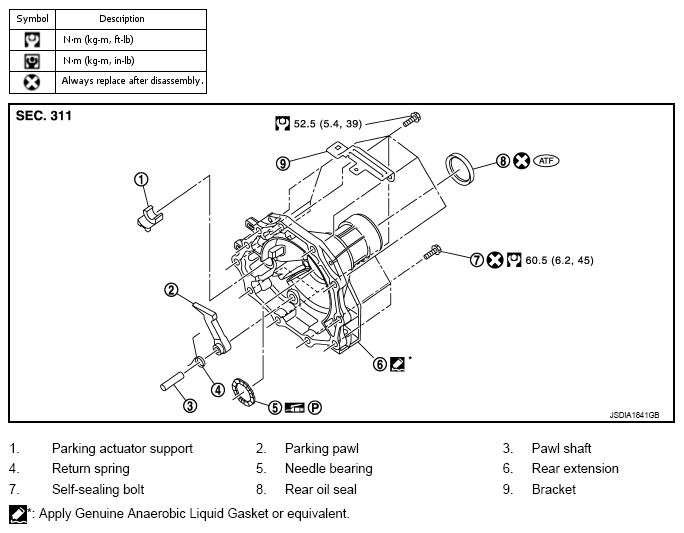

Fig 2: Identifying Transmission Assembly Related Components (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

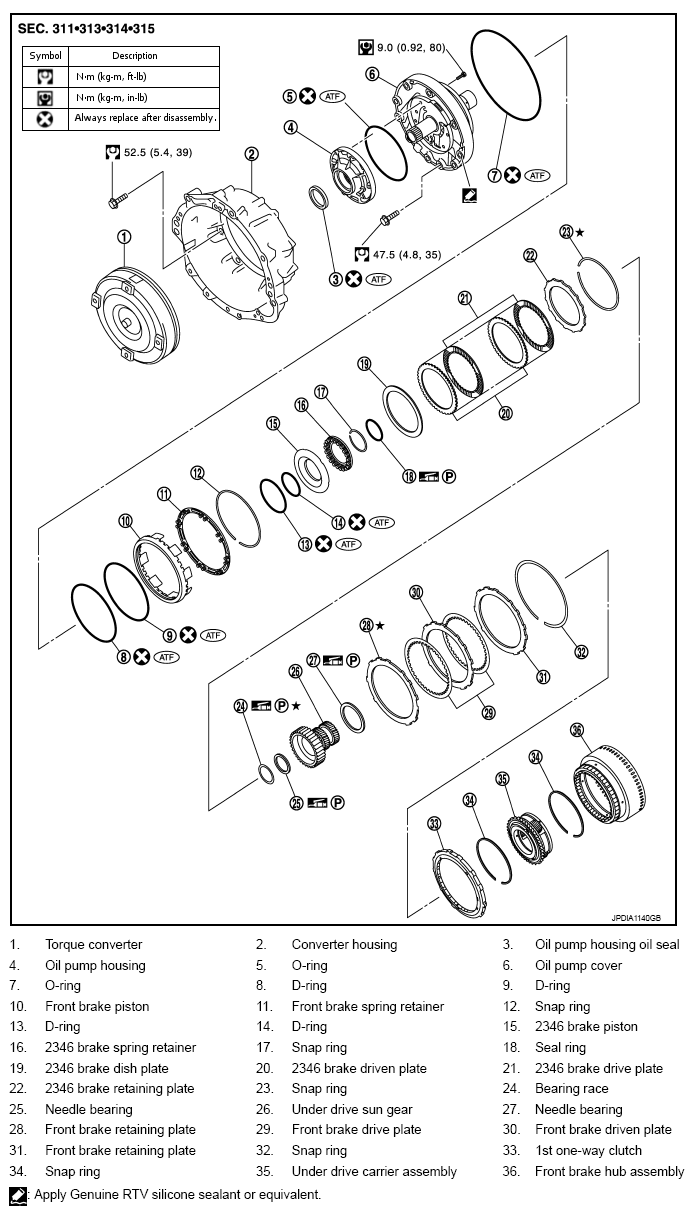

Fig 3: Identifying Transmission Assembly Related Components (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

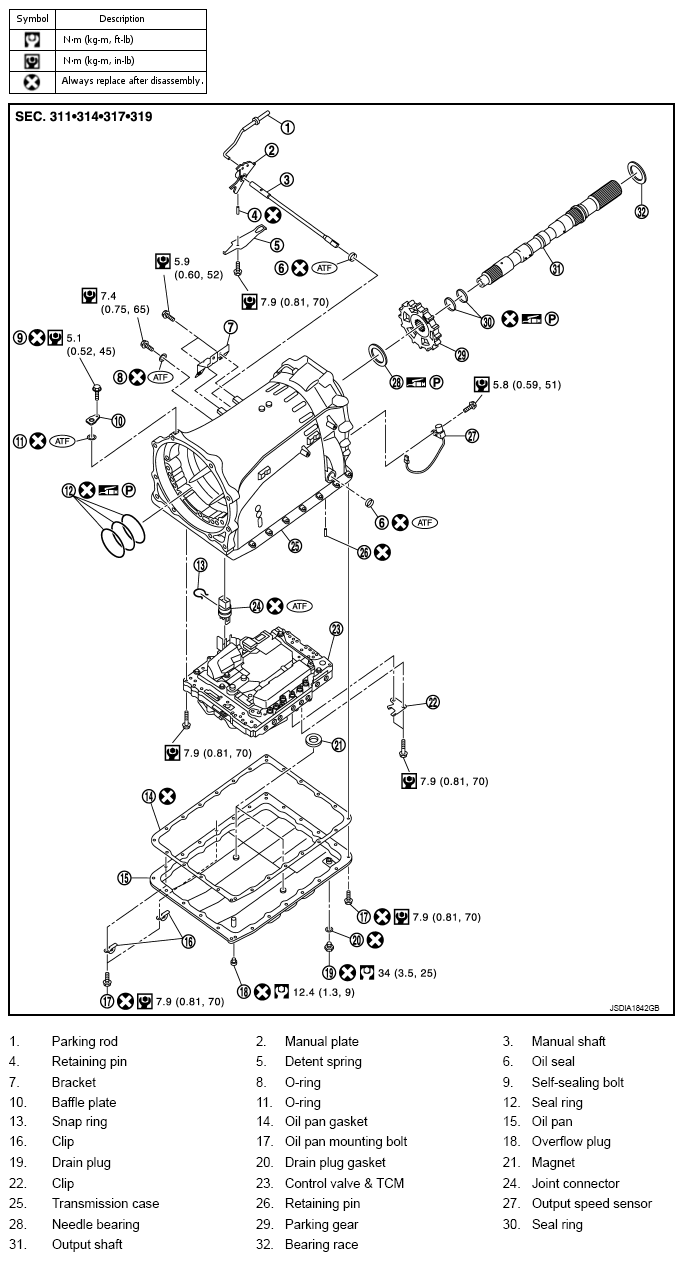

Fig 4: Transmission Assembly Related Replacement Components With Torque Specifications (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

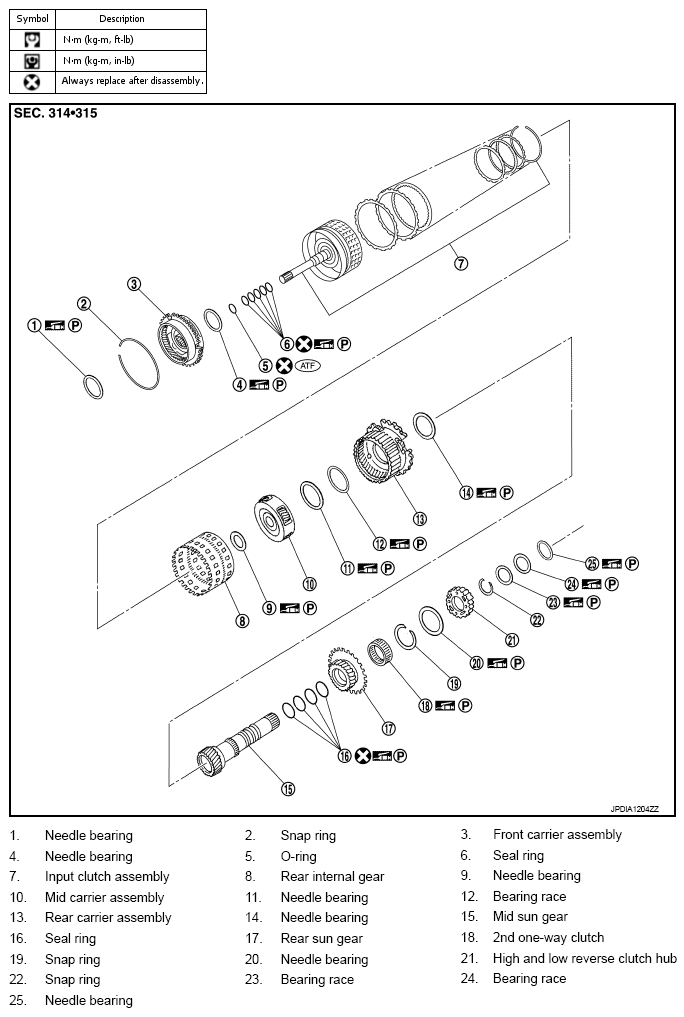

Fig 5: Transmission Assembly Related Replacement Components With Torque Specifications (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
