Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
System Description
>>
Structure And Operation
>>
Torque Split Mechanism
>>
Torque Distribution Flow
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Torque Distribution Flow

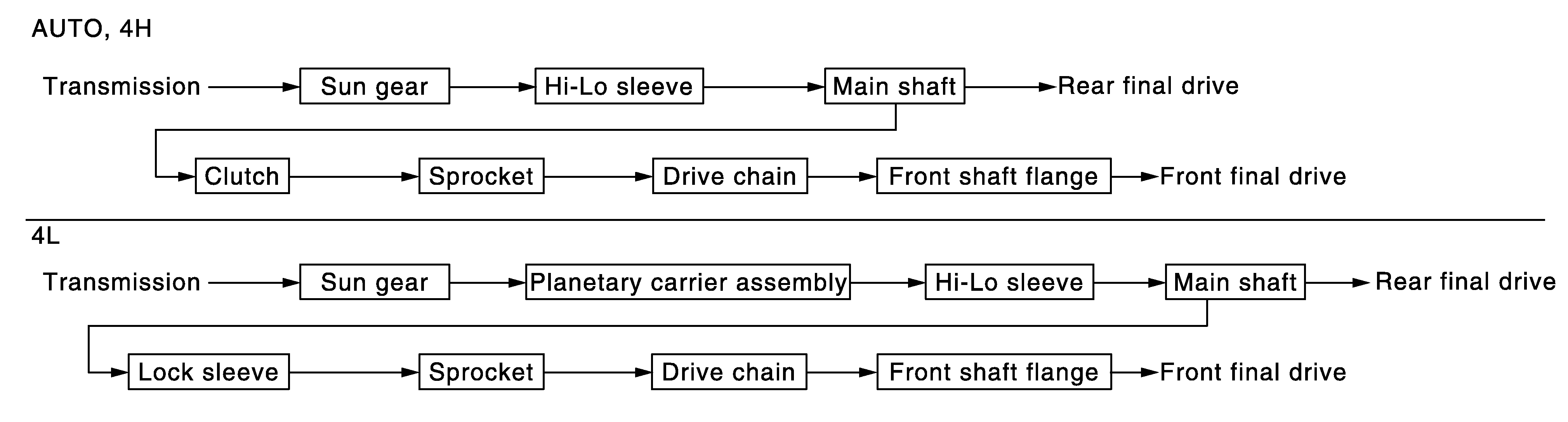

Fig 1: Transfer Case System Torque Distribution Flow Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
